Mikrotik / Enterprise Router

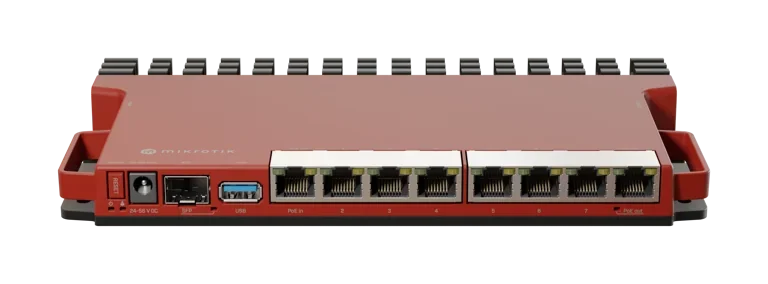

MikroTik L009UiGS-RM

Manufacturer P/N: L009UiGS-RM

Mikrotik L009UiGS-RM enterprise router. Architecture: ARM 32bit; CPU: IPQ-5018; CPU core count: 2. Compare configuration and request a hardware quote.

Architecture: ARM 32bit
CPU: IPQ-5018
CPU core count: 2
CPU nominal frequency: 800 MHz

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

L009UiGS-RMEnterprise Router

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

L009UiGS-RM specifications
Manufacturer	Mikrotik
Manufacturer part number	L009UiGS-RM
Product family	Ethernet routers
Architecture	ARM 32bit
CPU	IPQ-5018
CPU core count	2
CPU nominal frequency	800 MHz
CPU Threads count	2
Switch chip model	88E6190
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	512 MB
Storage size	128 MB
Storage type	NAND
Tested ambient temperature	-40°C to 70°C
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	24-56 V
Max power consumption	40 W
Max power consumption without attachments	8 W
PoE in	802.3af/at
Cooling type	Passive
PoE in input Voltage	24-56 V
PoE-out ports	Ether8
PoE out	Passive PoE
Low voltage PoE-Out current limit	1 A
High voltage PoE-Out current limit	450 mA
Max total out (A)	1 A
10/100/1000 Ethernet ports	8
Number of 1G Ethernet ports with PoE-out	1
SFP ports	1 (2.5G supported)
Serial console port	RJ45
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1.5
Mode button	Yes
IP	20

PRODUCT DETAILS

Features and applications

L009UiGS-RM at a glance

MikroTik L009UiGS-RM is an enterprise router in the Ethernet routers range. Use the model code when matching your deployment or replacement requirement.

Architecture: ARM 32bit
CPU: IPQ-5018
CPU core count: 2

Configuration and installation

Match the WAN handoff, interface speeds and routing requirements to this model. Throughput varies with packet size, enabled services and software configuration.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related Ethernet routers models

Ordering questions

What should I include in an enquiry?

Send L009UiGS-RM with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.

Browse Mikrotik equipment · Network equipment · Request a matched quotation

Prepare your enquiry

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
