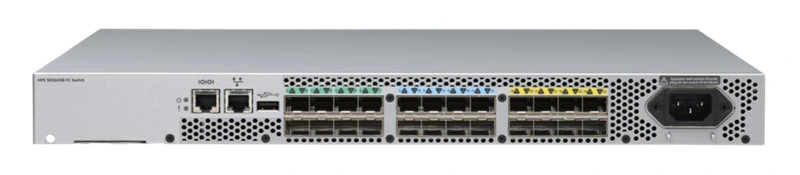

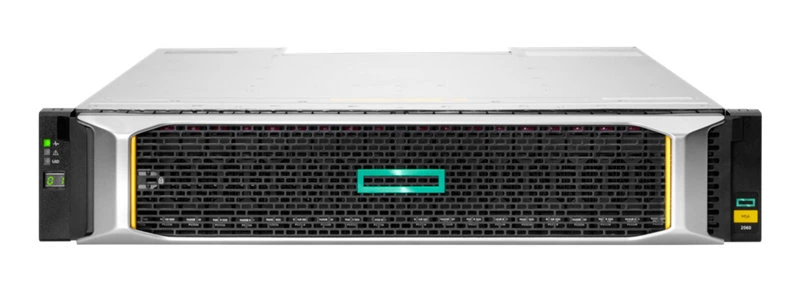

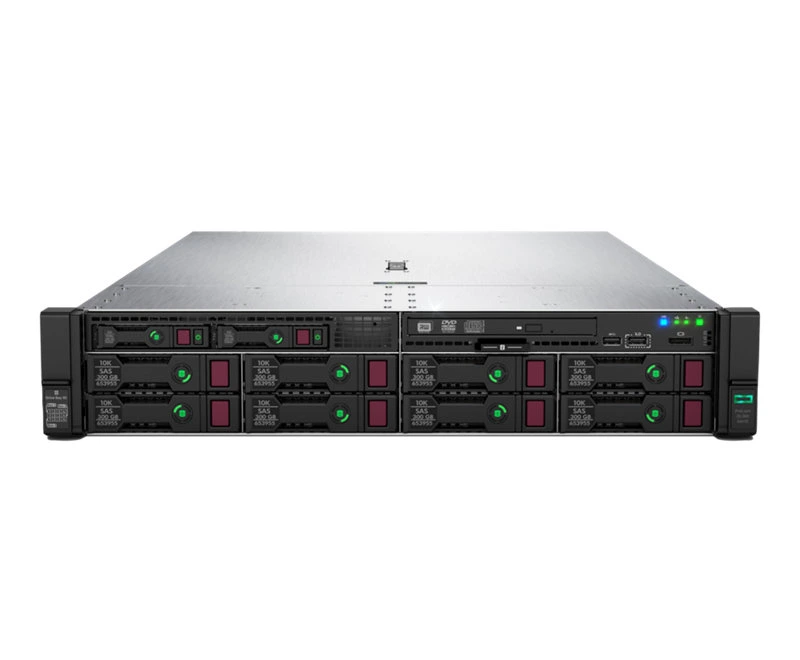

Pair ProLiant compute with an MSA 2060 SFF FC array across two independent SN3600B fabrics. The storage path runs at 16Gb FC, even though the switch platform supports 32Gb FC.

• Qualify the complete ProLiant/HBA/OS/MSA combination and switch Fabric OS release. Matching link speeds alone do not establish support.
• Install MSA-qualified 16Gb optics on the array and switch-qualified optics on the SN3600B. A 32Gb switch does not make the MSA target a 32Gb device.
• Keep fabrics A and B isolated. Use supported initiator/target zoning, LUN masking and host multipathing. Do not connect them with an Ethernet-style peer link.
• Two HBA ports provide path diversity, but one dual-port adapter remains a shared failure point. Use separately qualified adapters when adapter-level redundancy is required.

Connection example · confirm compatibility before ordering

Connect two SR665 hosts to a DE6000H 2U24 array through separate DB620S fabrics. This proposed two-host layout uses the 32Gb FC component families found in Lenovo deployments; it is not a reproduction of a benchmark configuration.

• The documented SR665/DE6000H/DB620S benchmark used four hosts and a 4U60 array. This smaller 2U24 two-fabric design needs its own interoperability and sizing review.
• Confirm array HICs, SAN OS, Lenovo-supported HBA firmware, OS and multipath settings. DE-series SAS expansion ports do not attach to an FC switch.
• Keep fabrics A and B isolated. Use supported initiator/target zoning, LUN masking and host multipathing. Do not connect them with an Ethernet-style peer link.
• Two HBA ports provide path diversity, but one dual-port adapter remains a shared failure point. Use separately qualified adapters when adapter-level redundancy is required.

Connection example · confirm compatibility before ordering

Plan PRIMERGY application hosts around a dual-controller ETERNUS DX200 S5 and two Brocade G620 switches. Keep business Ethernet separate from the 32Gb FC storage paths.

• Choose the DX200 S5 dual-controller 32Gb FC configuration, qualified Fujitsu channel adapters and approved drives. This is a SAN block-storage example.
• The switch family is documented with the array; that does not certify this complete RX2530 M7/OS/HBA combination. Review its host connection guide and multipath software before deployment.
• Keep fabrics A and B isolated. Use supported initiator/target zoning, LUN masking and host multipathing. Do not connect them with an Ethernet-style peer link.
• Two HBA ports provide path diversity, but one dual-port adapter remains a shared failure point. Use separately qualified adapters when adapter-level redundancy is required.

Connection example · confirm compatibility before ordering

Use the AFF A250 FC interface option for shared LUNs over two MDS fabrics. The 25GbE NFS example uses a different host connection; changing a protocol label alone does not convert the hardware.

• Check the specific HBA, switch software, ONTAP release, optics and host OS together; this proposed combination is not presented as a FlexPod certified design.
• Use supported zoning, igroups, LUN mapping and ALUA multipathing. NVMe/FC is a separate host/protocol qualification from the FCP example shown.
• Keep fabrics A and B isolated. Use supported initiator/target zoning, LUN masking and host multipathing. Do not connect them with an Ethernet-style peer link.
• Two HBA ports provide path diversity, but one dual-port adapter remains a shared failure point. Use separately qualified adapters when adapter-level redundancy is required.

Connection example · confirm compatibility before ordering

Connect PowerEdge hosts to a dual-controller ME5024 through two candidate MDS 9148T fabrics. Select the 32Gb FC controller configuration; the iSCSI model uses Ethernet hardware instead.

• MDS 9148T is a candidate switch requiring end-to-end review, not a blanket Dell-certified bundle. Confirm support terms, switch software, HBA, driver and array firmware.
• ME5 lists Emulex LPe35002 and QLogic QLE2772 among its FC HBA options. Array-side listing alone does not establish PowerEdge R750/OS support.
• Keep fabrics A and B isolated. Use supported initiator/target zoning, LUN masking and host multipathing. Do not connect them with an Ethernet-style peer link.
• Two HBA ports provide path diversity, but one dual-port adapter remains a shared failure point. Use separately qualified adapters when adapter-level redundancy is required.

Connection example · confirm compatibility before ordering

Two compute hosts share an all-flash storage system through two Ethernet switches. Follow the path from a virtual machine to its datastore.

• Published software baseline: vSphere 8.0, ONTAP 9.12.1P2, NX-OS 10.2(4) and CIMC 4.2(3d). Review supported releases for a new installation.
• Match the VIC, optics or DACs, VLANs and MTU end to end. Link speed is not an application throughput guarantee.
• This view illustrates redundant host data paths; it is not a port-by-port commissioning drawing.

Published FlexPod Express configuration · 2023 baseline

Connect application hosts to a dual-controller PowerVault array through separate iSCSI networks. Keep the controller variant, NICs and switch settings together in one deployment review.

• Specify dual 25GbE iSCSI controllers, qualified NICs, optics or DACs, drives and support when requesting this ME5024 configuration.
• Dell does not maintain an ME5 Ethernet-switch compatibility list. S5248F-ON is a candidate requiring review, not a blanket certified bundle.
• Use separate iSCSI subnets and supported MPIO settings. Confirm flow control, switch buffers and host/array MTU before testing path failure.

Star Networking connection example · ME5 deployment guidance

A separate backup network connects supported server workloads to a Synology repository. Add an off-site copy to protect against a site-wide incident.

• This is a proposed connection example, not a jointly certified hardware bundle. Confirm NIC, operating system and backup-package support.
• One switch and one NAS uplink remain single points of failure. An off-site copy is a recovery layer, not automatic network failover.
• Size retention, change rate and restore time before selecting drive capacity. Test restoration rather than relying only on successful backup jobs.

Star Networking connection example · component-based design

Use the DX200 S5 10GbE iSCSI host-interface configuration with separate storage subnets. Two candidate Dell S5248F-ON Ethernet switches carry 10GbE links to qualified PRIMERGY NICs and both controllers.

• This is a proposed 10GbE iSCSI design; verify the ETERNUS channel adapters, both switch endpoints and the exact server/OS/NIC combination.
• Keep iSCSI subnets distinct and use supported multipathing. Do not configure FC zoning or connect FC optics to Ethernet ports.
• The array offers 1/10GbE iSCSI options; this example specifically uses 10GbE optical connections. Validate reach, connector and module support end to end.

Connection example · check NIC, transceiver, firmware and OS compatibility
