Mikrotik / Cellular Router

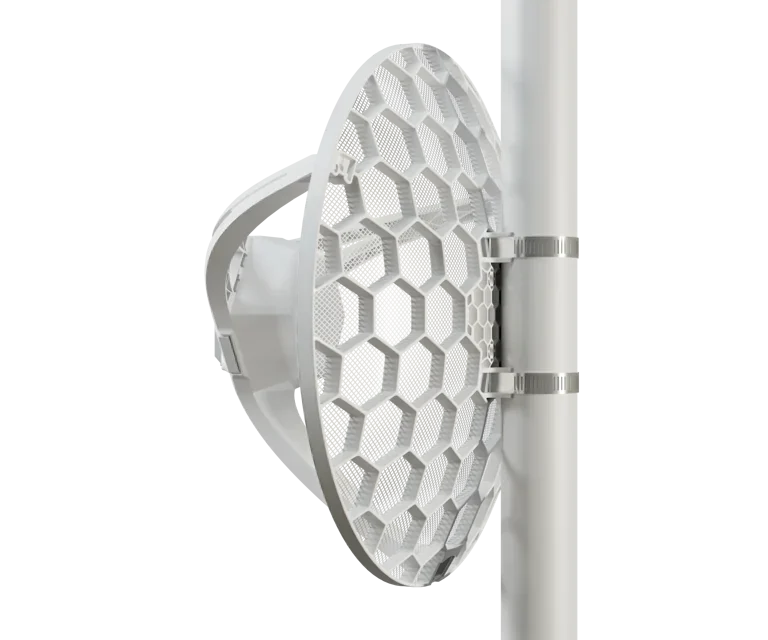

MikroTik LHG LTE18 kit — LHGGM&EG18-EA

Manufacturer P/N: LHGGM&EG18-EA

Mikrotik LHGGM&EG18-EA cellular router. Architecture: ARM 64bit; CPU: 88F3720; CPU core count: 2. Compare configuration and request a hardware quote.

Architecture: ARM 64bit
CPU: 88F3720
CPU core count: 2
CPU nominal frequency: 800 MHz

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

LHGGM&EG18-EACellular Router

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

LHGGM&EG18-EA specifications
Manufacturer	Mikrotik
Manufacturer part number	LHGGM&EG18-EA
Product family	LTE/5G products
Architecture	ARM 64bit
CPU	88F3720
CPU core count	2
CPU nominal frequency	800 MHz
CPU Threads count	2
RouterOS license	3
Operating System	RouterOS v7
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C to 70°C
Number of DC inputs	1 (PoE-IN)
Max power consumption	8 W
Max power consumption without attachments	8 W
PoE in	802.3af/at
Cooling type	Passive
PoE in input Voltage	12-57 V
3G Category	R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands	1 (2100MHz) 3 (1800MHz) 5 (850MHz) 8 (900MHz)
LTE Category	18 (1.2Gbps Downlink, 150Mbps Uplink)
MIMO DL	2x2
LTE FDD bands	1 (2100MHz) 3 (1800MHz) 5 (850MHz) 7 (2600MHz) 8 (900 MHz) 20 (800MHz) 28 (700MHz)
LTE TDD bands	38 (2600MHz) 40 (2300MHz) 41 (2500MHz)
TAC	86981604
10/100/1000 Ethernet ports	1
Number of SIM slots	1 Modem (Micro SIM)
Number of M.2 slots	1
Mode button	Yes
IP	54

PRODUCT DETAILS

Features and applications

LHGGM&EG18-EA at a glance

MikroTik LHG LTE18 kit — LHGGM&EG18-EA is a cellular router in the LTE/5G products range. Use the model code when matching your deployment or replacement requirement.

Architecture: ARM 64bit
CPU: 88F3720
CPU core count: 2

Configuration and installation

Check the modem, local carrier bands, SIM format and antenna installation. Carrier certification and radio permissions depend on the country of deployment.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
