Mikrotik / Enterprise Router

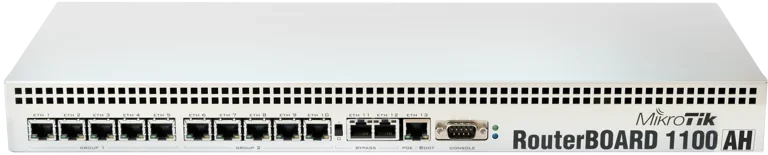

MikroTik RB1100AH

Manufacturer P/N: RB1100AH

Mikrotik RB1100AH enterprise router. CPU nominal frequency: 1 GHz; Dimensions: 1U case: 44 x 176 x 442 mm, 1200g. Board only: 365g; RouterOS license: 6. Compare configuration and request a hardware quote.

CPU nominal frequency: 1 GHz
Dimensions: 1U case: 44 x 176 x 442 mm, 1200g. Board only: 365g
RouterOS license: 6
Operating System: RouterOS

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

RB1100AHEnterprise Router

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

RB1100AH specifications
Manufacturer	Mikrotik
Manufacturer part number	RB1100AH
Product family	Ethernet routers
CPU nominal frequency	1 GHz
Dimensions	1U case: 44 x 176 x 442 mm, 1200g. Board only: 365g
RouterOS license	6
Operating System	RouterOS
Storage size	128 MB
Storage type	NAND
Tested ambient temperature	-25℃ to +65℃
Max power consumption without attachments	20W
PoE in	Passive PoE
10/100/1000 Ethernet ports	13
Memory card type	microSD
Memory Cards	1
Serial console port	RS232
CPU temperature monitor	Yes
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes

PRODUCT DETAILS

Features and applications

RB1100AH at a glance

MikroTik RB1100AH is an enterprise router in the Ethernet routers range. Use the model code when matching your deployment or replacement requirement.

CPU nominal frequency: 1 GHz
Dimensions: 1U case: 44 x 176 x 442 mm, 1200g. Board only: 365g
RouterOS license: 6

Legacy hardware sourcing

This model appears in the manufacturer’s archived product range. Ask for the offered condition, firmware requirements and support position. Archived status does not establish available stock or a guaranteed support end date.

Configuration and installation

Match the WAN handoff, interface speeds and routing requirements to this model. Throughput varies with packet size, enabled services and software configuration.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related Ethernet routers models

Ordering questions

What should I include in an enquiry?

Send RB1100AH with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.

Browse Mikrotik equipment · Network equipment · Request a matched quotation

Prepare your enquiry

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
