Mikrotik / Enterprise Router

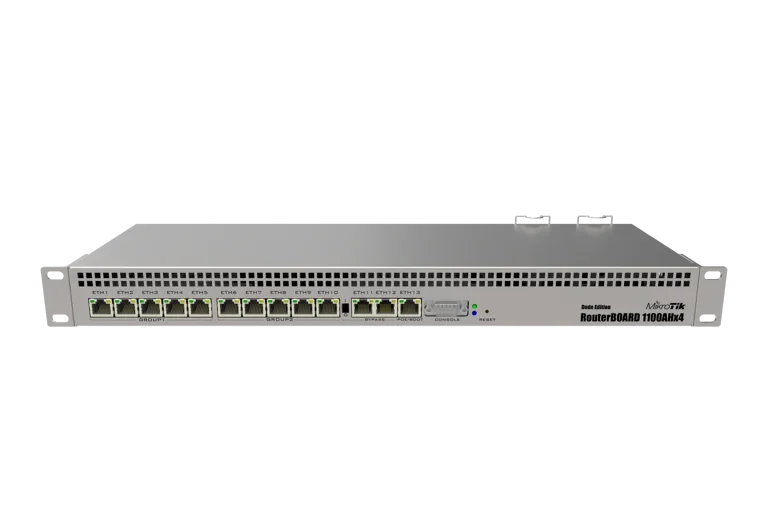

MikroTik RB1100AHx4 Dude Edition — RB1100Dx4

Manufacturer P/N: RB1100Dx4

Mikrotik RB1100Dx4 enterprise router. Architecture: ARM 32bit; CPU: AL21400; CPU core count: 4. Compare configuration and request a hardware quote.

Architecture: ARM 32bit
CPU: AL21400
CPU core count: 4
CPU nominal frequency: 1.4 GHz

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

RB1100Dx4Enterprise Router

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

RB1100Dx4 specifications
Manufacturer	Mikrotik
Manufacturer part number	RB1100Dx4
Product family	Ethernet routers
Architecture	ARM 32bit
CPU	AL21400
CPU core count	4
CPU nominal frequency	1.4 GHz
CPU Threads count	4
Switch chip model	RTL8367
Dimensions	443 x 148 x 44 mm
RouterOS license	6
Operating System	RouterOS
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
Tested ambient temperature	-40°C to 70°C
Number of AC inputs	2
Number of DC inputs	2 (PoE-IN, 2-pin terminal)
2-pin terminal input Voltage	-48, 20-57 V
Max power consumption	33 W
Max power consumption without attachments	25 W
PoE in	802.3af/at
Cooling type	Passive
PoE in input Voltage	20-57 V
10/100/1000 Ethernet ports	13
Extended storage	60GB M.2 SSD included
Memory card type	microSD
Memory Cards	1
SATA ports	2x SATA3
Serial console port	RS232
Number of M.2 slots	2
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes
IP	IP20

PRODUCT DETAILS

Features and applications

RB1100Dx4 at a glance

MikroTik RB1100AHx4 Dude Edition — RB1100Dx4 is an enterprise router in the Ethernet routers range. Use the model code when matching your deployment or replacement requirement.

Architecture: ARM 32bit
CPU: AL21400
CPU core count: 4

Configuration and installation

Match the WAN handoff, interface speeds and routing requirements to this model. Throughput varies with packet size, enabled services and software configuration.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related Ethernet routers models

Ordering questions

What should I include in an enquiry?

Send RB1100Dx4 with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
