Model and quantity
Include the full model, manufacturer P/N, revision and quantity.
Mikrotik / Network Equipment

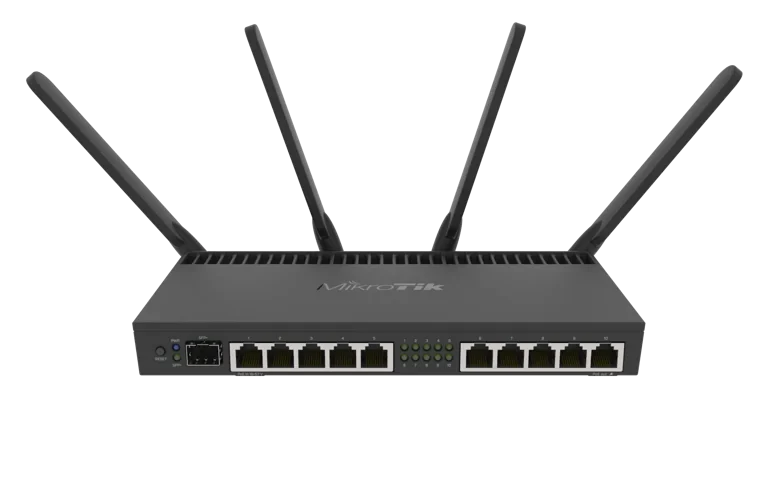

MikroTik RB4011iGS+5HacQ2HnD-IN
Manufacturer P/N: RB4011iGS+5HacQ2HnD-IN
Mikrotik RB4011iGS+5HacQ2HnD-IN network equipment. Architecture: ARM 32bit; CPU: AL21400; CPU core count: 4. Compare configuration and request a hardware quote.
- Architecture
- ARM 32bit
- CPU
- AL21400
- CPU core count
- 4
- CPU nominal frequency
- auto (533 - 1900) MHz
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Network connections and supported equipment
Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.
CONNECTS TOClients, servers or access links
RB4011iGS+5HacQ2HnD-INNetwork Equipment
USED FORConnected network equipment
Connection and installation requirements
- Port type, line rate, optics, reach and software license
- Peer platform support, resiliency and management design
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | Mikrotik |
|---|---|
| Manufacturer part number | RB4011iGS+5HacQ2HnD-IN |
| Product family | Indoor wireless |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | auto (533 - 1900) MHz |
| CPU Threads count | 4 |
| Switch chip model | RTL8367SB |
| Dimensions | 228 x 120 x 30 mm |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 45°C |
| Wireless 5 GHz Max data rate | 1733 Mbit/s |
| Wireless 5 GHz Number of chains | 4 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 3 |
| Wireless 5 GHz chip model | QCA9984 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 3 |
| Wireless 2.4 GHz chip model | R11e-2HnD |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| WiFi speed | AC2000 |
| 10/100/1000 Ethernet ports | 10 |
| SFP+ ports | 1 |
| MiniPCI-e slots | 1 |
| Serial console port | RJ45 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 44 W |
| Max power consumption without attachments | 23 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 18-57 V |
| PoE-out ports | Ether10 |
| PoE out | Passive PoE up to 57V |
| Low voltage PoE-Out current limit | 600 mA |
| High voltage PoE-Out current limit | 420 mA |
| Max total out (A) | 600 mA |
| IP | IP20 |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
PRODUCT DETAILS
Features and applications
RB4011iGS+5HacQ2HnD-IN at a glance
MikroTik RB4011iGS+5HacQ2HnD-IN is a network equipment in the Indoor wireless range. Use the model code when matching your deployment or replacement requirement.
- Architecture: ARM 32bit
- CPU: AL21400
- CPU core count: 4
Configuration and installation
Check installation dimensions, power requirements, interface compatibility and required accessories. Confirm whether the quoted item is a complete device or an individual component.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
Related Indoor wireless models
- MikroTik Chateau 5G ax — S53UG+M-5HaxD2HaxD-TC&RG502Q-EA — S53UG+M-5HaxD2HaxD-TC&RG502Q-EA
- MikroTik Audience LTE6 kit — RBD25GR-5HPacQD2HPnD&R11e-LTE6 — RBD25GR-5HPacQD2HPnD&R11e-LTE6
- MikroTik Chateau LTE18 ax — S53UG+5HaxD2HaxD-TC&EG18-EA — S53UG+5HaxD2HaxD-TC&EG18-EA
- MikroTik hAP ax³ — C53UiG+5HPaxD2HPaxD — C53UiG+5HPaxD2HPaxD
- MikroTik Chateau 5G — D53G-5HacD2HnD-TC&RG502Q-EA — D53G-5HacD2HnD-TC&RG502Q-EA
- MikroTik Chateau PRO ax — H53UiG-5HaxQ2HaxQ — H53UiG-5HaxQ2HaxQ
- MikroTik hAP ax S — E62iUGS-2axD5axT — E62iUGS-2axD5axT
- MikroTik hAP ac³ LTE6 kit — RBD53GR-5HacD2HnD&R11e-LTE6 — RBD53GR-5HacD2HnD&R11e-LTE6
Ordering questions
What should I include in an enquiry?
Send RB4011iGS+5HacQ2HnD-IN with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.
Are accessories and support included?
Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
Browse Mikrotik equipment · Network equipment · Request a matched quotation
Prepare your enquiry
Ordering and delivery
Your existing equipment
Tell us the host model, generation, installed configuration and required supporting hardware.
Delivery requirements
Specify condition, testing requirements, destination and requested delivery date.
RELATED PRODUCTS
Related products and options
Check compatibility before choosing a replacement. The products below are related, but may not be interchangeable.
Mikrotik
MikroTik Chateau 5G — D53G-5HacD2HnD-TC&RG502Q-EA
Network Equipment
P/N D53G-5HacD2HnD-TC&RG502Q-EA
Browse this equipment range
Modules, power & spare parts
Chassis, line cards, routing engines, power supplies, cooling and installation parts. These entries identify components; they are not automatically complete systems.
