Mikrotik / Enterprise Router

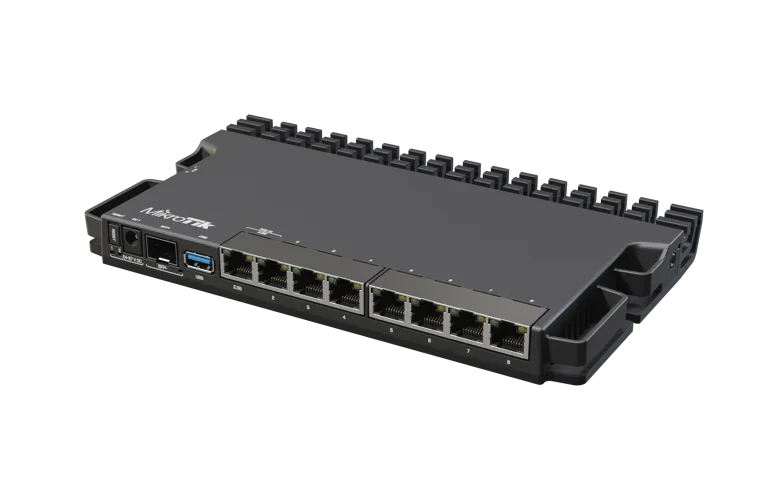

MikroTik RB5009UG+S+IN

Manufacturer P/N: RB5009UG+S+IN

Mikrotik RB5009UG+S+IN enterprise router. Architecture: ARM 64bit; CPU: 88F7040; CPU core count: 4. Compare configuration and request a hardware quote.

Architecture: ARM 64bit
CPU: 88F7040
CPU core count: 4
CPU nominal frequency: 350-1400 (auto) MHz

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

RB5009UG+S+INEnterprise Router

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

RB5009UG+S+IN specifications
Manufacturer	Mikrotik
Manufacturer part number	RB5009UG+S+IN
Product family	Ethernet routers
Architecture	ARM 64bit
CPU	88F7040
CPU core count	4
CPU nominal frequency	350-1400 (auto) MHz
CPU Threads count	4
Switch chip model	88E6393
Dimensions	220 x 125 x 22 mm
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	1 GB
Storage type	NAND
Tested ambient temperature	-40°C to 60°C
Number of DC inputs	3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage	24-57 V
2-pin terminal input Voltage	24-57 V
Max power consumption	25 W
Max power consumption without attachments	14 W
PoE in	802.3af/at
Cooling type	Passive
PoE in input Voltage	24-57 V
10/100/1000 Ethernet ports	7
Number of 2.5G Ethernet ports	1
SFP+ ports	1
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1.5
CPU temperature monitor	Yes

PRODUCT DETAILS

Features and applications

RB5009UG+S+IN at a glance

MikroTik RB5009UG+S+IN is an enterprise router in the Ethernet routers range. Use the model code when matching your deployment or replacement requirement.

Architecture: ARM 64bit
CPU: 88F7040
CPU core count: 4

Configuration and installation

Match the WAN handoff, interface speeds and routing requirements to this model. Throughput varies with packet size, enabled services and software configuration.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related Ethernet routers models

Ordering questions

What should I include in an enquiry?

Send RB5009UG+S+IN with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.

Browse Mikrotik equipment · Network equipment · Request a matched quotation

Prepare your enquiry

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
