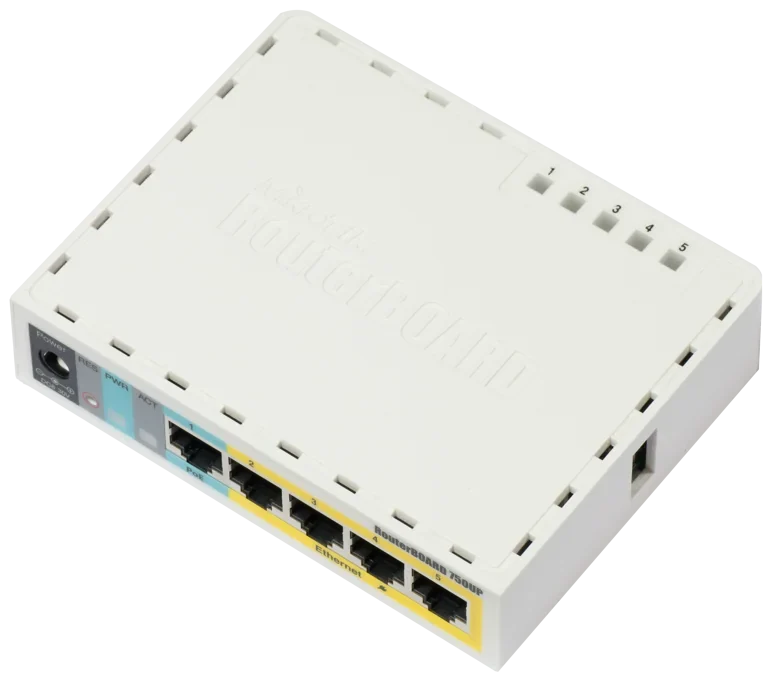

MikroTik RB750UP

Manufacturer P/N: RB750UP

Mikrotik RB750UP enterprise router. Architecture: MIPSBE; CPU: AR7241; CPU core count: 1. Compare configuration and request a hardware quote.

Architecture: MIPSBE
CPU: AR7241
CPU core count: 1
CPU nominal frequency: 400 MHz

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

RB750UPEnterprise Router

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

RB750UP specifications
Manufacturer	Mikrotik
Manufacturer part number	RB750UP
Product family	Ethernet routers
Architecture	MIPSBE
CPU	AR7241
CPU core count	1
CPU nominal frequency	400 MHz
Switch chip model	AR7241-AH1A-R
Dimensions	113x89x28mm. Weight without packaging and cables: 129g
RouterOS license	4
Operating System	RouterOS
Size of RAM	32 MB
Storage size	64 MB
Storage type	NAND
Tested ambient temperature	-30C to +60C
Number of DC inputs	1
Max power consumption without attachments	3W
PoE in	Passive PoE
PoE-out ports	Ether2-Ether5
PoE out	Passive PoE
Low voltage PoE-Out current limit	1 A
Max total out (A)	2 A
10/100 Ethernet ports	5
Number of USB ports	1
USB slot type	USB type A
PCB temperature monitor	Yes
Voltage Monitor	Yes

PRODUCT DETAILS

Features and applications

RB750UP at a glance

MikroTik RB750UP is an enterprise router in the Ethernet routers range. Use the model code when matching your deployment or replacement requirement.

Architecture: MIPSBE
CPU: AR7241
CPU core count: 1

Legacy hardware sourcing

This model appears in the manufacturer’s archived product range. Ask for the offered condition, firmware requirements and support position. Archived status does not establish available stock or a guaranteed support end date.

Configuration and installation

Match the WAN handoff, interface speeds and routing requirements to this model. Throughput varies with packet size, enabled services and software configuration.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
