Mikrotik / Enterprise Router

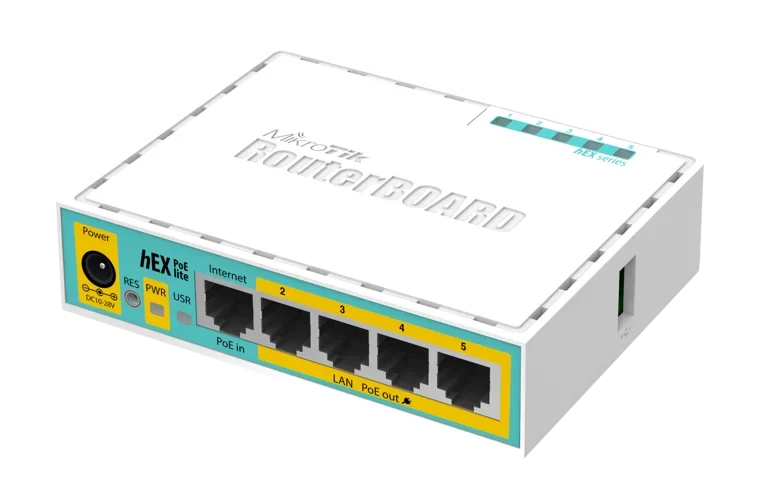

MikroTik hEX PoE lite — RB750UPr2

Manufacturer P/N: RB750UPr2

Mikrotik RB750UPr2 enterprise router. Architecture: MIPSBE; CPU: QCA9531; CPU core count: 1. Compare configuration and request a hardware quote.

Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

RB750UPr2Enterprise Router

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

RB750UPr2 specifications
Manufacturer	Mikrotik
Manufacturer part number	RB750UPr2
Product family	Ethernet routers
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	QCA9531
Dimensions	113x89x28mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C to 70°C
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	8-30 V
Max power consumption	51 W
Max power consumption without attachments	3 W
PoE in	Passive PoE
Cooling type	Passive
PoE in input Voltage	8-30 V
PoE-out ports	Ether2-Ether5
PoE out	Passive PoE
Low voltage PoE-Out current limit	1 A
Max total out (A)	2 A
10/100 Ethernet ports	5
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
IP	20

PRODUCT DETAILS

Features and applications

RB750UPr2 at a glance

MikroTik hEX PoE lite — RB750UPr2 is an enterprise router in the Ethernet routers range. Use the model code when matching your deployment or replacement requirement.

Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1

Configuration and installation

Match the WAN handoff, interface speeds and routing requirements to this model. Throughput varies with packet size, enabled services and software configuration.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related Ethernet routers models

Ordering questions

What should I include in an enquiry?

Send RB750UPr2 with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.

Browse Mikrotik equipment · Network equipment · Request a matched quotation

Prepare your enquiry

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
