Mikrotik / Cellular Router

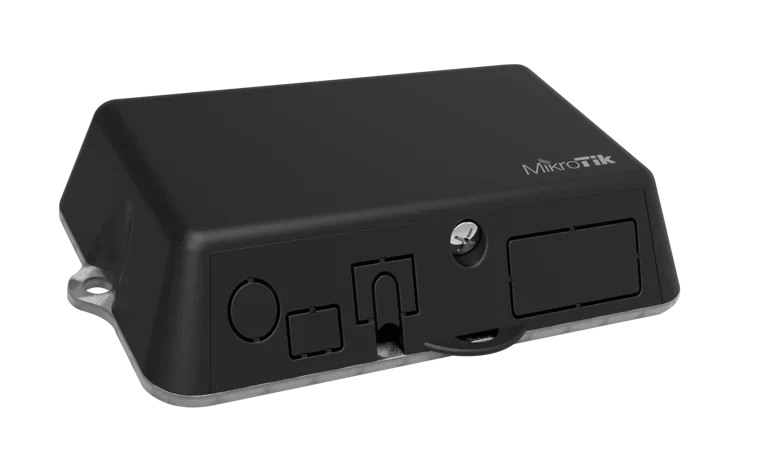

MikroTik LtAP mini LTE kit — RB912R-2nD-LTm&R11e-LTE

Manufacturer P/N: RB912R-2nD-LTm&R11e-LTE

Mikrotik RB912R-2nD-LTm&R11e-LTE cellular router. Architecture: MIPSBE; CPU: QCA9531; CPU core count: 1. Compare configuration and request a hardware quote.

Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

RB912R-2nD-LTm&R11e-LTECellular Router

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

RB912R-2nD-LTm&R11e-LTE specifications
Manufacturer	Mikrotik
Manufacturer part number	RB912R-2nD-LTm&R11e-LTE
Product family	LTE/5G products
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Dimensions	139 x 77 x 28,5 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C to 50°C
MicroUSB input Voltage	5 V
Number of DC inputs	3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage	8-30 V
Max power consumption	9 W
PoE in	802.3af/at
Cooling type	Passive
PoE in input Voltage	12-57 V
2G Category	Class12
2G bands	2 (1900MHz) 3 (1800MHz) 5 (850MHz) 8 (900MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands	1 (2100MHz) 2 (1900MHz) 5 (850MHz) 8 (900MHz)
LTE Category	4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands	1 (2100MHz) 2 (1900MHz) 3 (1800MHz) 7 (2600MHz) 8 (900 MHz) 20 (800MHz)
LTE TDD bands	38 (2600MHz) 40 (2300MHz)
TAC	35565409
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz Number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
10/100 Ethernet ports	1
Number of SIM slots	2 Modem (Mini SIM)
MiniPCI-e slots	1
Serial console port	RS232
Mode button	Yes
GNSS standards	GPS
GPS RF connector type	uUFL
IP	IP54

PRODUCT DETAILS

Features and applications

RB912R-2nD-LTm&R11e-LTE at a glance

MikroTik LtAP mini LTE kit — RB912R-2nD-LTm&R11e-LTE is a cellular router in the LTE/5G products range. Use the model code when matching your deployment or replacement requirement.

Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1

Legacy hardware sourcing

This model appears in the manufacturer’s archived product range. Ask for the offered condition, firmware requirements and support position. Archived status does not establish available stock or a guaranteed support end date.

Configuration and installation

Check the modem, local carrier bands, SIM format and antenna installation. Carrier certification and radio permissions depend on the country of deployment.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related LTE/5G products models

Ordering questions

What should I include in an enquiry?

Send RB912R-2nD-LTm&R11e-LTE with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.

Browse Mikrotik equipment · Network equipment · Request a matched quotation

Prepare your enquiry

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
