Model and quantity
Include the full model, manufacturer P/N, revision and quantity.
Mikrotik / Network Equipment

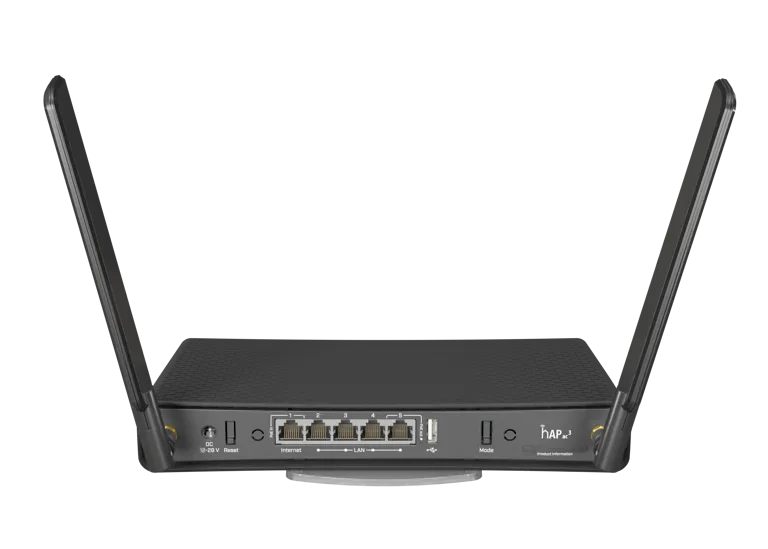

MikroTik hAP ac³ — RBD53iG-5HacD2HnD
Manufacturer P/N: RBD53iG-5HacD2HnD
Mikrotik RBD53iG-5HacD2HnD network equipment. Architecture: ARM 32bit; CPU: IPQ-4019; CPU core count: 4. Compare configuration and request a hardware quote.
- Architecture
- ARM 32bit
- CPU
- IPQ-4019
- CPU core count
- 4
- CPU nominal frequency
- 448-896 (auto) MHz
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Network connections and supported equipment
Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.
CONNECTS TOClients, servers or access links
RBD53iG-5HacD2HnDNetwork Equipment
USED FORConnected network equipment
Connection and installation requirements
- Port type, line rate, optics, reach and software license
- Peer platform support, resiliency and management design
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | Mikrotik |
|---|---|
| Manufacturer part number | RBD53iG-5HacD2HnD |
| Product family | Indoor wireless |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | 448-896 (auto) MHz |
| CPU Threads count | 4 |
| Switch chip model | IPQ-4019 |
| Dimensions | 251 x 129 x 39 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 3 |
| Wireless 2.4 GHz chip model | IPQ-4019 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| WiFi speed | AC1200 |
| 10/100/1000 Ethernet ports | 5 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 30 W |
| Max power consumption without attachments | 12 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 18-28 V |
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Low voltage PoE-Out current limit | 0.5 A |
| Max total out (A) | 0.5 A |
| IP | IP20 |
| Mode button | Yes |
PRODUCT DETAILS
Features and applications
RBD53iG-5HacD2HnD at a glance
MikroTik hAP ac³ — RBD53iG-5HacD2HnD is a network equipment in the Indoor wireless range. Use the model code when matching your deployment or replacement requirement.
- Architecture: ARM 32bit
- CPU: IPQ-4019
- CPU core count: 4
Configuration and installation
Check installation dimensions, power requirements, interface compatibility and required accessories. Confirm whether the quoted item is a complete device or an individual component.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
