Mikrotik / Network Equipment

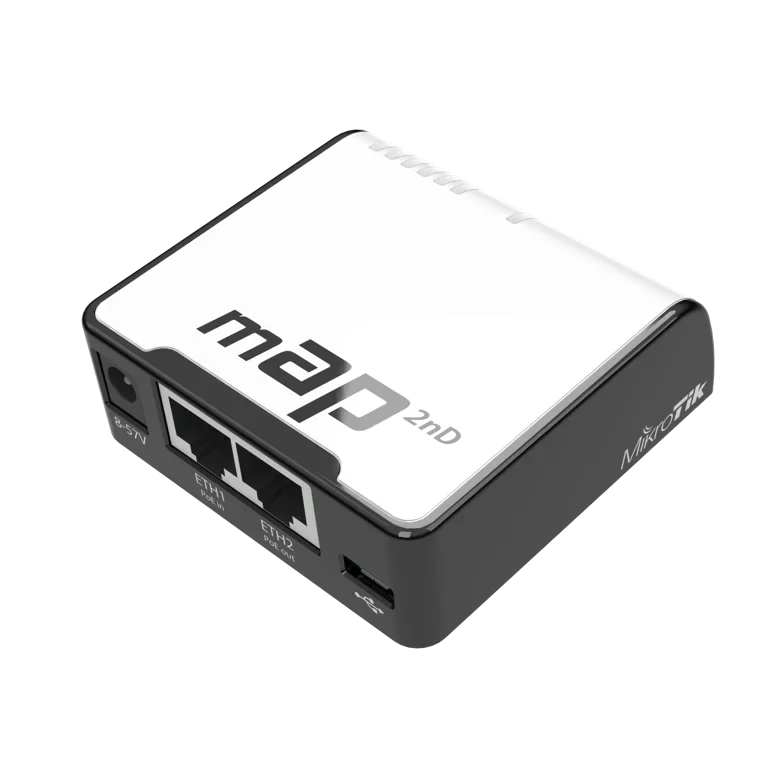

MikroTik mAP — RBmAP2nD

Manufacturer P/N: RBmAP2nD

Mikrotik RBmAP2nD network equipment. Architecture: MIPSBE; CPU: QCA9531; CPU core count: 1. Compare configuration and request a hardware quote.

Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

RBmAP2nDNetwork Equipment

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

RBmAP2nD specifications
Manufacturer	Mikrotik
Manufacturer part number	RBmAP2nD
Product family	Indoor wireless
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	QCA9531-BL3A-R
Dimensions	68x68x19mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-20°C to 70°C
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz Number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.2
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
10/100 Ethernet ports	2
Number of USB ports	1
USB Power Reset	Yes
USB slot type	microUSB type AB
Max USB current (A)	1
MicroUSB input Voltage	5 V
Number of DC inputs	3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage	8-57 V
Max power consumption	5 W
PoE in	802.3af/at
Cooling type	Passive
PoE in input Voltage	12-57 V
PoE-out ports	Ether2
PoE out	Passive PoE
Low voltage PoE-Out current limit	0.5 A
Max total out (A)	0.5 A
PCB temperature monitor	Yes
Voltage Monitor	Yes

PRODUCT DETAILS

Features and applications

RBmAP2nD at a glance

MikroTik mAP — RBmAP2nD is a network equipment in the Indoor wireless range. Use the model code when matching your deployment or replacement requirement.

Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1

Configuration and installation

Check installation dimensions, power requirements, interface compatibility and required accessories. Confirm whether the quoted item is a complete device or an individual component.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related Indoor wireless models

Ordering questions

What should I include in an enquiry?

Send RBmAP2nD with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.

Browse Mikrotik equipment · Network equipment · Request a matched quotation

Prepare your enquiry

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
