Model and quantity
Include the full model, manufacturer P/N, revision and quantity.
Mikrotik / Wireless Network Device

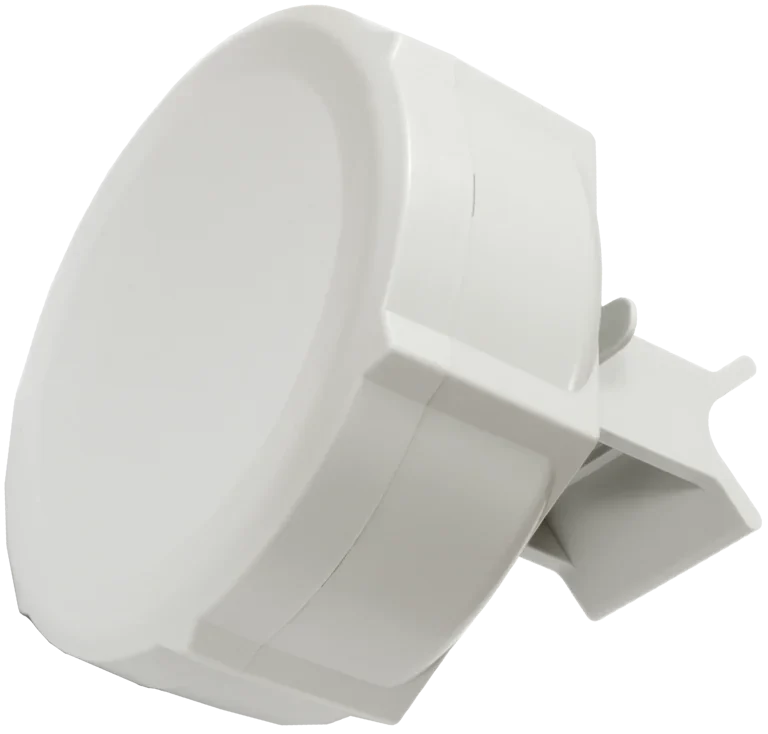

MikroTik SXT Lite5 ac — RBSXT5HacD2n
Manufacturer P/N: RBSXT5HacD2n
Mikrotik RBSXT5HacD2n wireless network device. Architecture: MIPSBE; CPU: QCA9531; CPU core count: 1. Compare configuration and request a hardware quote.
- Architecture
- MIPSBE
- CPU
- QCA9531
- CPU core count
- 1
- CPU nominal frequency
- 650 MHz
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Network connections and supported equipment
Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.
CONNECTS TOClients, servers or access links
RBSXT5HacD2nWireless Network Device
USED FORConnected network equipment
Connection and installation requirements
- Port type, line rate, optics, reach and software license
- Peer platform support, resiliency and management design
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | Mikrotik |
|---|---|
| Manufacturer part number | RBSXT5HacD2n |
| Product family | Wireless systems |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 140x140x56mm |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 8 W |
| Max power consumption without attachments | 8W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 8-30 V |
| Wireless 2.4 GHz Max data rate | 150 Mbit/s |
| Wireless 2.4 GHz Number of chains | 1 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 16 |
| Wireless 5 GHz chip model | QCA9892 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| 10/100 Ethernet ports | 1 |
PRODUCT DETAILS
Features and applications
RBSXT5HacD2n at a glance
MikroTik SXT Lite5 ac — RBSXT5HacD2n is a wireless network device in the Wireless systems range. Use the model code when matching your deployment or replacement requirement.
- Architecture: MIPSBE
- CPU: QCA9531
- CPU core count: 1
Legacy hardware sourcing
This model appears in the manufacturer’s archived product range. Ask for the offered condition, firmware requirements and support position. Archived status does not establish available stock or a guaranteed support end date.
Configuration and installation
Check installation dimensions, power requirements, interface compatibility and required accessories. Confirm whether the quoted item is a complete device or an individual component.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
Related Wireless systems models
- MikroTik NetMetal ac² — RBD23UGS-5HPacD2HnD-NM — RBD23UGS-5HPacD2HnD-NM
- MikroTik mANTBox ax 15s — L22UGS-5HaxD2HaxD-15S — L22UGS-5HaxD2HaxD-15S
- MikroTik NetMetal ax — L23UGSR-5HaxD2HaxD-NM — L23UGSR-5HaxD2HaxD-NM
- MikroTik mANTBox 52 15s — RBD22UGS-5HPacD2HnD-15S — RBD22UGS-5HPacD2HnD-15S
- MikroTik OmniTIK 5 PoE ac — RBOmniTikPG-5HacD — RBOmniTikPG-5HacD
- MikroTik LHG XL 52 ac — RBLHGG-5HPacD2HPnD-XL — RBLHGG-5HPacD2HPnD-XL
- MikroTik OmniTIK 5 PoE — RBOmniTikUPA-5HnD — RBOmniTikUPA-5HnD
- MikroTik NetMetal 5 — RB922UAGS-5HPacD-NM — RB922UAGS-5HPacD-NM
Ordering questions
What should I include in an enquiry?
Send RBSXT5HacD2n with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.
Are accessories and support included?
Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
Browse Mikrotik equipment · Network equipment · Request a matched quotation
Prepare your enquiry
Ordering and delivery
Your existing equipment
Tell us the host model, generation, installed configuration and required supporting hardware.
Delivery requirements
Specify condition, testing requirements, destination and requested delivery date.
