Mikrotik / Enterprise Router

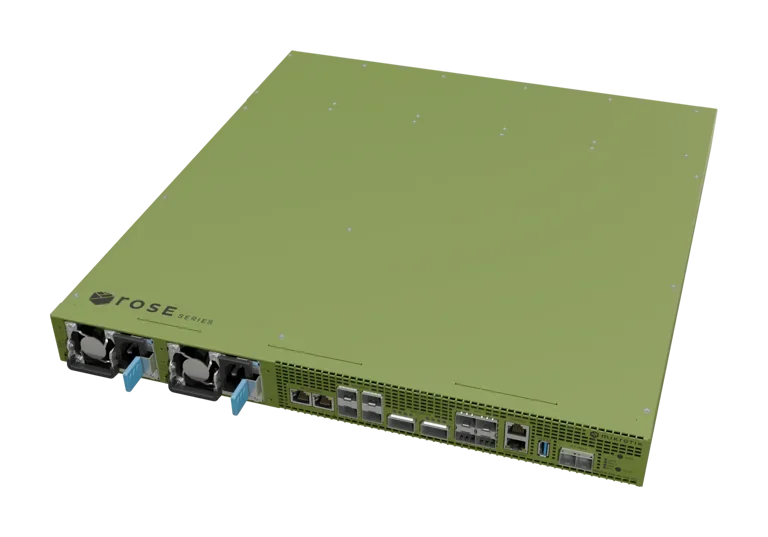

MikroTik ROSE Data server (RDS) — RDS2216-2XG-4S+4XS-2XQ

Manufacturer P/N: RDS2216-2XG-4S+4XS-2XQ

Mikrotik RDS2216-2XG-4S+4XS-2XQ enterprise router. Architecture: ARM 64bit; CPU: AL73400; CPU core count: 16. Compare configuration and request a hardware quote.

Architecture: ARM 64bit
CPU: AL73400
CPU core count: 16
CPU nominal frequency: 2000 MHz

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

RDS2216-2XG-4S+4XS-2XQEnterprise Router

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

RDS2216-2XG-4S+4XS-2XQ specifications
Manufacturer	Mikrotik
Manufacturer part number	RDS2216-2XG-4S+4XS-2XQ
Product family	Ethernet routers
Architecture	ARM 64bit
CPU	AL73400
CPU core count	16
CPU nominal frequency	2000 MHz
CPU Threads count	16
Switch chip model	98DX4310
Dimensions	476 x 443 x 44 mm
RouterOS license	6
Operating System	RouterOS v7 (Special ROSE edition)
Size of RAM	32 GB
Storage size	128 MB
Storage type	NAND
Tested ambient temperature	-20°C to 50°C
Number of AC inputs	2
AC input range	100-240
Frequency (Hz)	50-60
Max power consumption	286 W
Max power consumption without attachments	105 W
Cooling type	10 fans
10/100/1000 Ethernet ports	1
Number of 1G/2.5G/5G/10G Ethernet ports	2
SFP+ ports	4
Number of 25G SFP28 ports	4
Number of 100G QSFP28 ports	2
Serial console port	RJ45
Number of USB ports	2
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1
Number of M.2 slots	2
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Mode button	Yes
IP	20

PRODUCT DETAILS

Features and applications

RDS2216-2XG-4S+4XS-2XQ at a glance

MikroTik ROSE Data server (RDS) — RDS2216-2XG-4S+4XS-2XQ is an enterprise router in the Ethernet routers range. Use the model code when matching your deployment or replacement requirement.

Architecture: ARM 64bit
CPU: AL73400
CPU core count: 16

Configuration and installation

Match the WAN handoff, interface speeds and routing requirements to this model. Throughput varies with packet size, enabled services and software configuration.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
