NETGEAR / Ethernet Switch

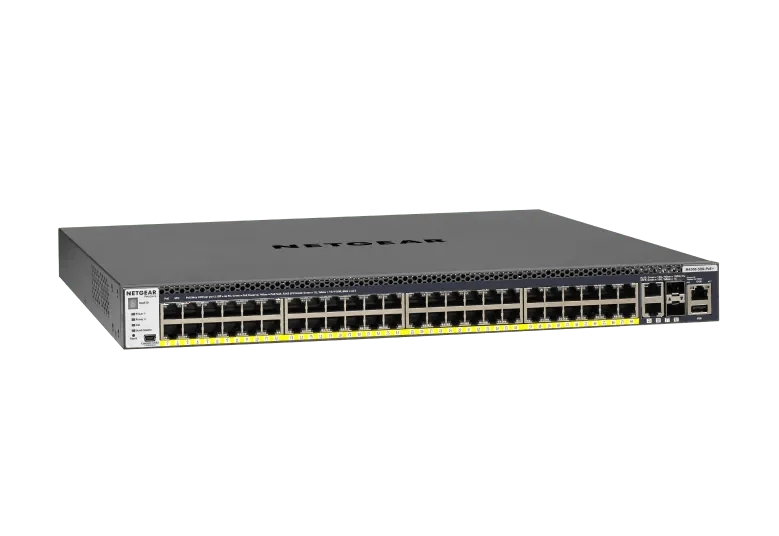

NETGEAR GSM4352PA — GSM4352PA-100NAS

Manufacturer P/N: GSM4352PA-100NAS

NETGEAR GSM4352PA-100NAS ethernet switch. 1G RJ45 Ports: 48 x 10/100/1000; 10G RJ45 Ports: 2 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds); 10G Fiber SFP+ Ports: 2 x SFP+ (1G and 10G speeds). Compare configuration and request a hardware quote.

Product model: GSM4352PA
1G RJ45 Ports: 48 x 10/100/1000
10G RJ45 Ports: 2 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)
10G Fiber SFP+ Ports: 2 x SFP+ (1G and 10G speeds)

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

GSM4352PA-100NASEthernet Switch

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

GSM4352PA-100NAS specifications
Manufacturer	NETGEAR
Manufacturer part number	GSM4352PA-100NAS
Product family	Fully managed switches
Product model	GSM4352PA
1G RJ45 Ports	48 x 10/100/1000
10G RJ45 Ports	2 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)
10G Fiber SFP+ Ports	2 x SFP+ (1G and 10G speeds)
PoE Budget (Watts)	480W PoE Budget with 1 PSU @ 110V / 220V AC input
Hardware Specifications	48x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (550W PSU)
Ordering Number	GSM4352PA
Acoustics	39.8dB @ 25°C (77°F)
Power Consumption (Max)	865 Watts
Power over Ethernet	48 x PoE+ 30W
Feature Set	Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)
Form Factor	Full width with dual, redundant modular PSUs for business continuity

PRODUCT DETAILS

Features and applications

GSM4352PA-100NAS at a glance

NETGEAR GSM4352PA — GSM4352PA-100NAS is an ethernet switch in the Fully managed switches range. Use the model code when matching your deployment or replacement requirement.

1G RJ45 Ports: 48 x 10/100/1000
10G RJ45 Ports: 2 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)
10G Fiber SFP+ Ports: 2 x SFP+ (1G and 10G speeds)

Configuration and installation

Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related Fully managed switches models

Ordering questions

What should I include in an enquiry?

Send GSM4352PA-100NAS with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.

Browse NETGEAR equipment · Network equipment · Request a matched quotation

Prepare your enquiry

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
