NETGEAR / Ethernet Switch

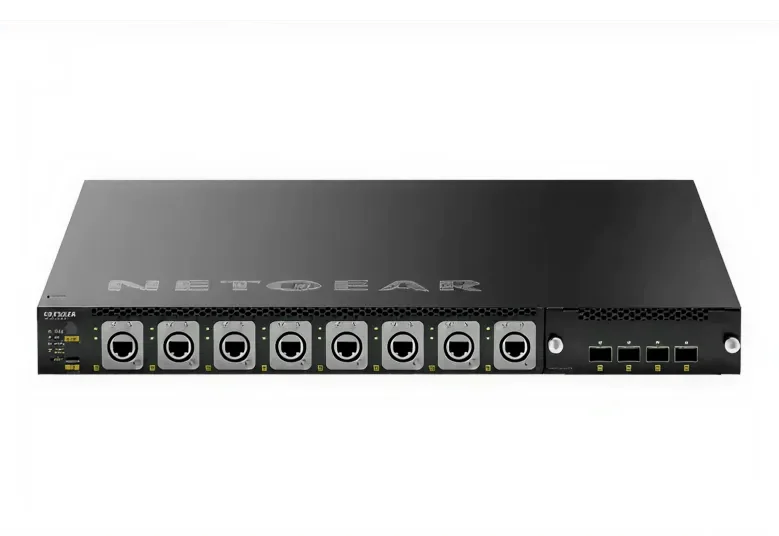

NETGEAR MSM4320 — MSM4320-100NES

Manufacturer P/N: MSM4320-100NES

NETGEAR MSM4320-100NES ethernet switch. Port configuration: 16 x 2.5G PoE++ incl. 8x Neutrik etherCON, and 4x 25G SFP28; IGMP Support: Enhanced (NETGEAR IGMP Plus™); Jumbo Frame Support: Yes, up to 12kb. Compare configuration and request a hardware quote.

Product model: MSM4320
Port configuration: 16 x 2.5G PoE++ incl. 8x Neutrik etherCON, and 4x 25G SFP28
IGMP Support: Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support: Yes, up to 12kb

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

MSM4320-100NESEthernet Switch

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

MSM4320-100NES specifications
Manufacturer	NETGEAR
Manufacturer part number	MSM4320-100NES
Product family	Fully managed switches
Product model	MSM4320
Port configuration	16 x 2.5G PoE++ incl. 8x Neutrik etherCON, and 4x 25G SFP28
IGMP Support	Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support	Yes, up to 12kb
AVB Support	Yes, included.
Standby w/o any port connection	50.6W/170.60Btu/hr
M4350-16M4V Support	Learn More
M4350-16M4V (MSM4320)	1
Power Cord (Standard AC to C13)	1
Console USB Type-C cable	1
Rack-mounting standard bracket set	1
Set of longer brackets for recessed mounting	1
Rubber footpads for tabletop installation	4
Installation guide	1
Width	440mm
Depth	432mm
Height	43.2mm
Weight	7.85kg (17.31lb)
Acoustics	Quiet Mode 35.6dB@25ºC
Power Consumption	With max PoE: 1359.8W/4,639.64Btu/hr Without PoE: 109.6W/373.96Btu/hr
PSU Compatible Models	Internal only
Internal PSUs	2 internal 800W PSUs with PowerCON connectors
Pro AV Information	Learn More
AV Resource Center	Learn More
Compatible Interface Cards	APM414SD (2x Neutrik opticalCON QUAD for 4x MMF Transceivers) APM414LD (2x Neutrik opticalCON QUAD for 4x SMF Transceivers) APM414V (4x Standard 25G SFP28 ports) ships with the switch APM414C (4x Standard 10G RJ5 ports)
NETGEAR Engage Controller	Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive. Learn More

PRODUCT DETAILS

Features and applications

MSM4320-100NES at a glance

NETGEAR MSM4320 — MSM4320-100NES is an ethernet switch in the Fully managed switches range. Use the model code when matching your deployment or replacement requirement.

Port configuration: 16 x 2.5G PoE++ incl. 8x Neutrik etherCON, and 4x 25G SFP28
IGMP Support: Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support: Yes, up to 12kb

Configuration and installation

Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related Fully managed switches models

Ordering questions

What should I include in an enquiry?

Send MSM4320-100NES with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
