NETGEAR / Ethernet Switch

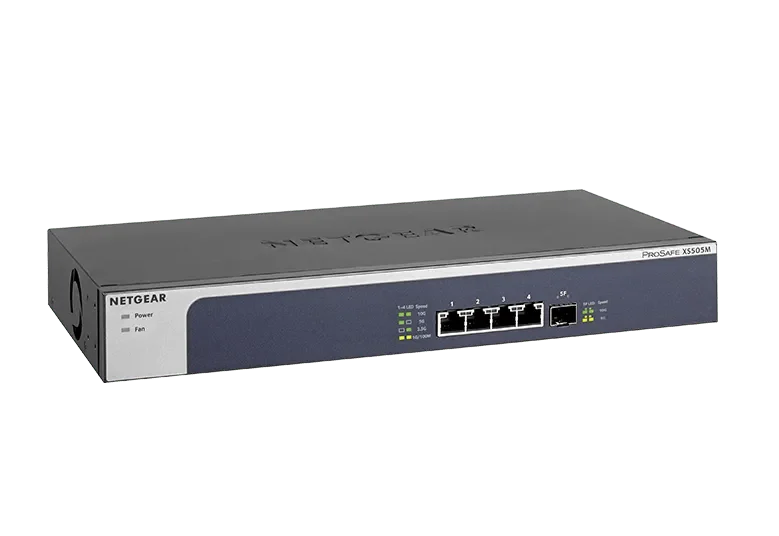

NETGEAR XS505M — XS505M-100NAS

Manufacturer P/N: XS505M-100NAS

NETGEAR XS505M-100NAS ethernet switch. 100M/1G/2.5G/5G/10G RJ-45 copper ports: 4; 10G SFP+ ports: 1; Dimensions (W x D x H): 328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in). Compare configuration and request a hardware quote.

Product model: XS505M
100M/1G/2.5G/5G/10G RJ-45 copper ports: 4
10G SFP+ ports: 1
Dimensions (W x D x H): 328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in)

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

XS505M-100NASEthernet Switch

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

XS505M-100NAS specifications
Manufacturer	NETGEAR
Manufacturer part number	XS505M-100NAS
Product family	Unmanaged switches
Product model	XS505M
100M/1G/2.5G/5G/10G RJ-45 copper ports	4
10G SFP+ ports	1
Dimensions (W x D x H)	328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in)
Weight	1.38Kg
Form Factor	Desktop/Rackmount
Packet buffer memory	128KB
Bandwidth	100Gbps
MAC Address database size	2K
Number of priority queues	8
Fan(s)	1 Low-Noise Active Fan
IEEE 802.3az (Energy Efficient Ethernet)	Yes
Max power consumption (Watts)	22.5W
LEDs	Power,Fan, Speed, Link/Activity
Acoustic noise level @ 25° C (dBA)	28.8dB
Operating temperature	0° to 40° C
Electromagnetic compliance (A or B)	B

PRODUCT DETAILS

Features and applications

XS505M-100NAS at a glance

NETGEAR XS505M — XS505M-100NAS is an ethernet switch in the Unmanaged switches range. Use the model code when matching your deployment or replacement requirement.

100M/1G/2.5G/5G/10G RJ-45 copper ports: 4
10G SFP+ ports: 1
Dimensions (W x D x H): 328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in)

Configuration and installation

Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related Unmanaged switches models

Ordering questions

What should I include in an enquiry?

Send XS505M-100NAS with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.

Browse NETGEAR equipment · Network equipment · Request a matched quotation

Prepare your enquiry

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
