NETGEAR / Ethernet Switch

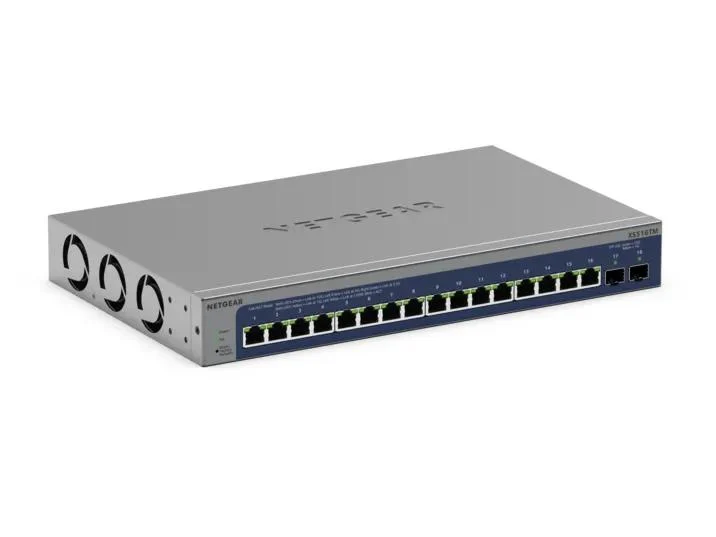

NETGEAR XS516TM — XS516TM-100NAS

Manufacturer P/N: XS516TM-100NAS

NETGEAR XS516TM-100NAS ethernet switch. 10G/Multi-Gigabit ports: 16; 10G SFP+ ports: 2; VLAN (Number Supported): 512. Compare configuration and request a hardware quote.

Product model: XS516TM
10G/Multi-Gigabit ports: 16
10G SFP+ ports: 2
VLAN (Number Supported): 512

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

XS516TM-100NASEthernet Switch

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

XS516TM-100NAS specifications
Manufacturer	NETGEAR
Manufacturer part number	XS516TM-100NAS
Product family	Smart Cloud switches
Product model	XS516TM
10G/Multi-Gigabit ports	16
10G SFP+ ports	2
VLAN (Number Supported)	512
Width	330mm (13in)
Depth	206mm (8.12in)
Height	43mm (1.7in)
Weight	2.45kg (5.4lb)
Max MAC entries	16K
Buffer size	4MB
VLAN routing	Yes
Dynamic VLAN assignment	Yes
MLD Snooping	Yes
Static route	Yes
Host ARP table	1024
EEE	Yes
DoS Prevention	Yes
Internal/External Power Supply/Adapter	Internal Power Supply
Max consumption (Watts)	63.9W
FAN	3
Acoustic Noise Level @25C (dBA)	27.35 dBA
Operating Temperature	0° to 50° C

PRODUCT DETAILS

Features and applications

XS516TM-100NAS at a glance

NETGEAR XS516TM — XS516TM-100NAS is an ethernet switch in the Smart Cloud switches range. Use the model code when matching your deployment or replacement requirement.

10G/Multi-Gigabit ports: 16
10G SFP+ ports: 2
VLAN (Number Supported): 512

Configuration and installation

Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related Smart Cloud switches models

Ordering questions

What should I include in an enquiry?

Send XS516TM-100NAS with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.

Browse NETGEAR equipment · Network equipment · Request a matched quotation

Prepare your enquiry

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
