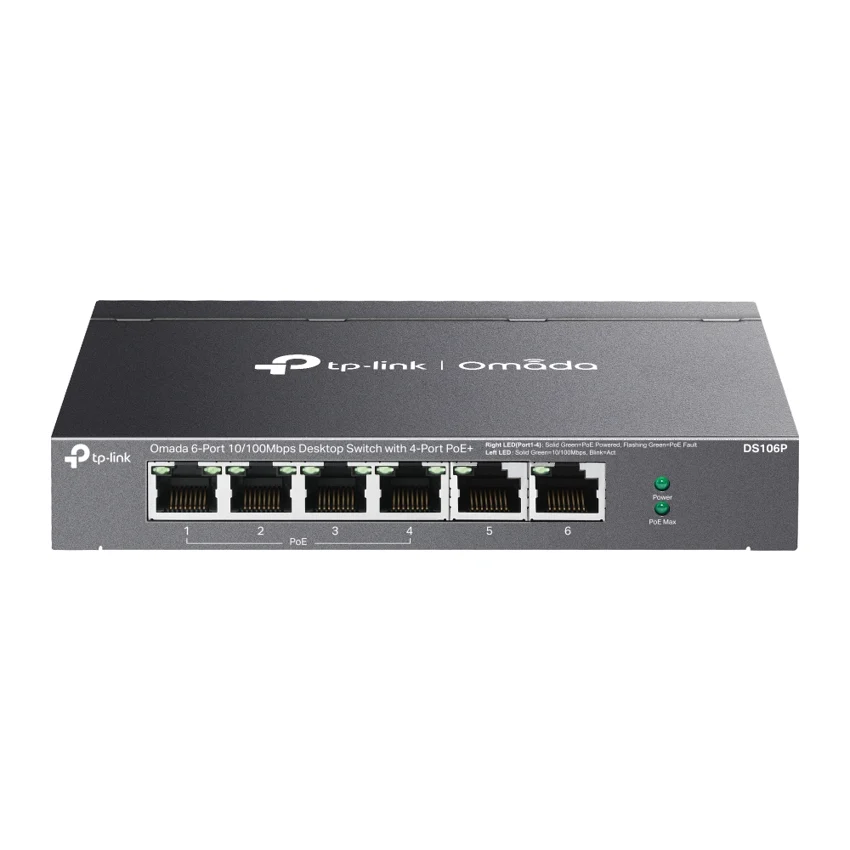

TP-Link DS106P product reference image
Product reference image

TP-Link / Ethernet Switch

TP-Link DS106P

Manufacturer P/N: DS106P

TP-Link DS106P ethernet switch. Interface: • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX; Fan Quantity: Fanless; Physical Security Lock: Yes. Compare configuration and request a hardware quote.

Documented hardware version
V1; match the hardware revision before ordering
Interface
• 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX
Fan Quantity
Fanless
Physical Security Lock
Yes

Price on request

Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.

Place order request
Request a quote

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links
DS106PEthernet Switch
USED FORConnected network equipment
Connection and installation requirements
  • Port type, line rate, optics, reach and software license
  • Peer platform support, resiliency and management design
Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

DS106P specifications
ManufacturerTP-Link
Manufacturer part numberDS106P
Product familyBusiness ethernet switchs
Documented hardware versionV1; match the hardware revision before ordering
Interface• 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX
Fan QuantityFanless
Physical Security LockYes
External Power SupplyExternal Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate0.8928 Mpps
PoE Ports (RJ45)• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W
Mac Address Table2K
Jumbo Frame2 KB
Switching Capacity1.2 Gbps
Dimensions ( W x D x H )6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max. Power Consumption• 2.52 W (220 V / 50 Hz, no PD connected) • 75.4 W (220 V / 50 Hz, with 67 W PD connected)
Max. Heat Dissipation• 8.59 BTU/h(no PD connected) • 257.11 BTU/h(with 67 W PD connected)
Transmission MethodStore-And-Forward
Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)
Advanced Features• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode: Ports 1–4 • Priority Mode: Ports 1–2 • PoE Auto Recovery: Ports 1-4 • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
Environment• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

PRODUCT DETAILS

Features and applications

DS106P at a glance

TP-Link DS106P is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.

  • Interface: • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX
  • Fan Quantity: Fanless
  • Physical Security Lock: Yes

Configuration and installation

Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related business Ethernet switches

Ordering questions

What should I include in an enquiry?

Send DS106P with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.

Browse TP-Link equipment · Network equipment · Request a matched quotation

Prepare your enquiry

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
