Model and quantity
Include the full model, manufacturer P/N, revision and quantity.
TP-Link / Ethernet Switch
TP-Link ES205GP
Manufacturer P/N: ES205GP

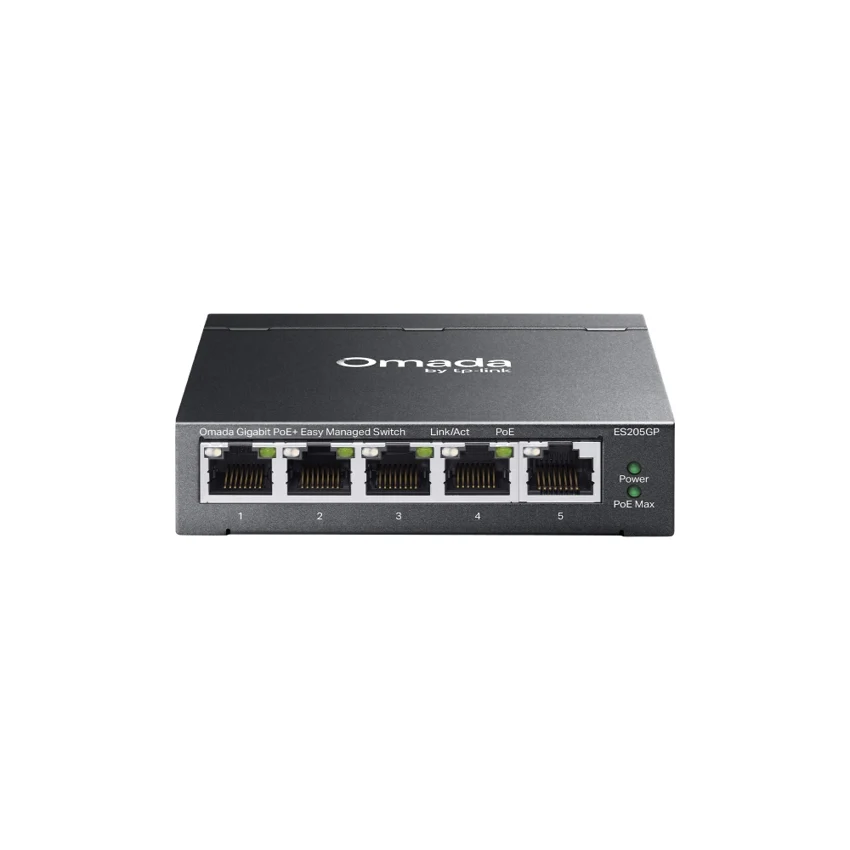

TP-Link ES205GP ethernet switch. Interface: • 5× 10/100/1000 Mbps RJ45 Ports (4× 802.3af/at-compliant PoE+)• Auto-Negotiation/Auto MDI/MDIX; Fan Quantity: Fanless; Installation: • Desktop• Wall Mount. Compare configuration and request a hardware quote.
- Documented hardware version
- V2; match the hardware revision before ordering
- Interface
- • 5× 10/100/1000 Mbps RJ45 Ports (4× 802.3af/at-compliant PoE+)• Auto-Negotiation/Auto MDI/MDIX
- Fan Quantity
- Fanless
- Installation
- • Desktop• Wall Mount
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Network connections and supported equipment
Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.
CONNECTS TOClients, servers or access links
ES205GPEthernet Switch
USED FORConnected network equipment
Connection and installation requirements
- Port type, line rate, optics, reach and software license
- Peer platform support, resiliency and management design
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | ES205GP |
| Product family | Business ethernet switchs |
| Documented hardware version | V2; match the hardware revision before ordering |
| Interface | • 5× 10/100/1000 Mbps RJ45 Ports (4× 802.3af/at-compliant PoE+)• Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop• Wall Mount |
| Physical Security Lock | √ |
| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/1.31A) |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
| Surge Protection | ±6kV |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 8K |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control △ |
| L2 Features | • Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| Centralized Management | • Omada Cloud-Based Controller (Requires built-in version 6.1.0 or later) • Omada Hardware Controller (Requires built-in version 6.1.0 or later) • Omada Software Controller (Requires built-in version 6.1.0 or later) |
| Environment | • Operating Temperature: -5 °C~40℃ (23 °F~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
PRODUCT DETAILS
Features and applications
ES205GP at a glance
TP-Link ES205GP is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.
- Interface: • 5× 10/100/1000 Mbps RJ45 Ports (4× 802.3af/at-compliant PoE+)• Auto-Negotiation/Auto MDI/MDIX
- Fan Quantity: Fanless
- Installation: • Desktop• Wall Mount
Configuration and installation
Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
