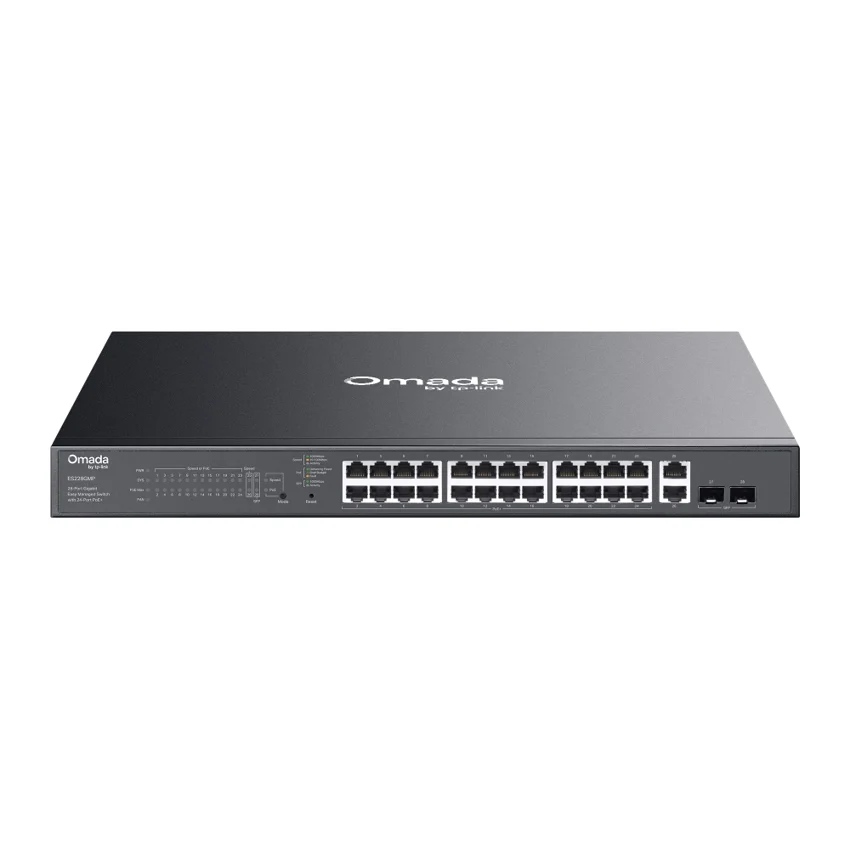

TP-Link ES228GMP product reference image
Product reference image

TP-Link / Ethernet Switch

TP-Link ES228GMP

Manufacturer P/N: ES228GMP

TP-Link ES228GMP ethernet switch. Fan Quantity: 2; Installation: Rackmountable; Physical Security Lock: √. Compare configuration and request a hardware quote.

Documented hardware version
V2; match the hardware revision before ordering
Fan Quantity
2
Installation
Rackmountable
Physical Security Lock
√

Price on request

Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.

Place order request
Request a quote

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links
ES228GMPEthernet Switch
USED FORConnected network equipment
Connection and installation requirements
  • Port type, line rate, optics, reach and software license
  • Peer platform support, resiliency and management design
Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

ES228GMP specifications
ManufacturerTP-Link
Manufacturer part numberES228GMP
Product familyBusiness ethernet switchs
Documented hardware versionV2; match the hardware revision before ordering
Fan Quantity2
InstallationRackmountable
Physical Security Lock√
Power Supply100–240V AC, 50/60Hz
Dimensions ( W x D x H )17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm)
Surge Protection±6kV
Packet Buffer Memory4 Mbit
Jumbo Frame15 KB
Transmission MethodStore and Forward
Switching Capacity56 Gbps
Packet Forwarding Rate41.66 Mpps
MAC Address Table8K
L2 Multicast• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN• 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission MethodStore-And-Forward
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
Interface• 24× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3af/at-compliant PoE+)• 2× 10/100/1000 Mbps RJ45 Port• 2× Gigabit SFP Slots• Auto-Negotiation/Auto MDI/MDIX
Quality of Service• Port-based/802.1p/DSCP QoS △ • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control
L2 Features• Link Aggregation - Static Link Aggregation - Up to 4 aggregation groups and up to 6 ports per group • Port Isolation • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • IEEE 802.3az EEE
Centralized Management• Omada Cloud-Based Controller (Requires built-in version 6.1.0 or later) • Omada Hardware Controller (Requires built-in version 6.1.0 or later) • Omada Software Controller (Requires built-in version 6.1.0 or later)
Environment• Operating Temperature: -5℃~45℃ (23℉~113℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

PRODUCT DETAILS

Features and applications

ES228GMP at a glance

TP-Link ES228GMP is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.

  • Fan Quantity: 2
  • Installation: Rackmountable
  • Physical Security Lock: √

Configuration and installation

Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related business Ethernet switches

Ordering questions

What should I include in an enquiry?

Send ES228GMP with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
