Model and quantity
Include the full model, manufacturer P/N, revision and quantity.

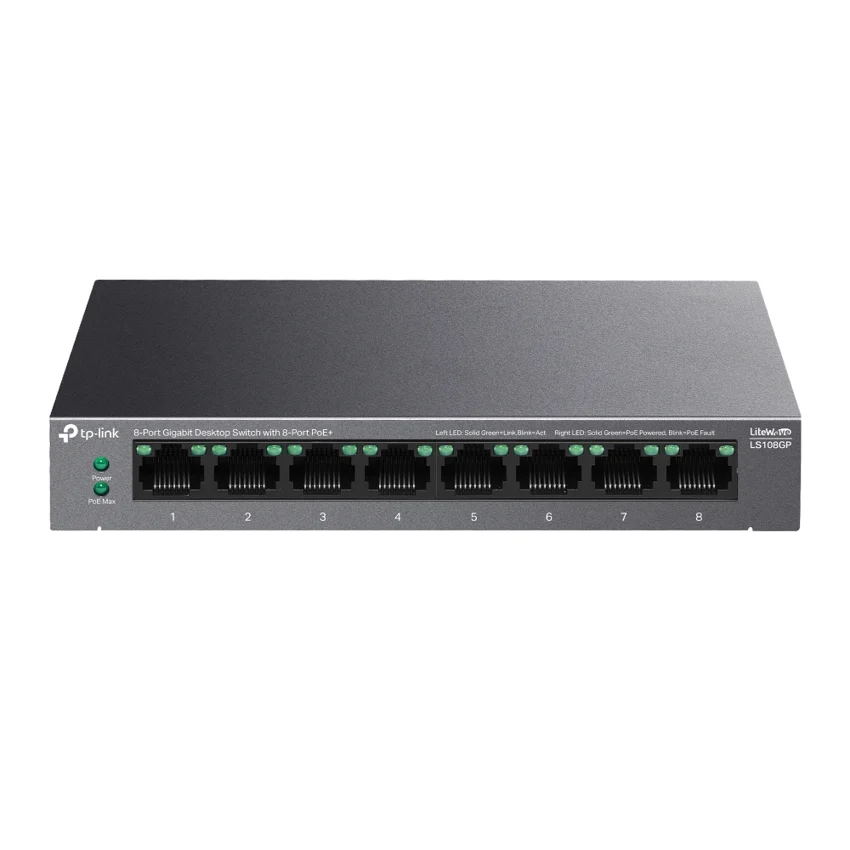

TP-Link / Ethernet Switch
TP-Link LS108GP
Manufacturer P/N: LS108GP
TP-Link LS108GP ethernet switch. Interface: • 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX; Fan Quantity: Fanless; Installation: • Desktop • Wall Mounting. Compare configuration and request a hardware quote.
- Documented hardware version
- V1; match the hardware revision before ordering
- Interface
- • 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX
- Fan Quantity
- Fanless
- Installation
- • Desktop • Wall Mounting
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Network connections and supported equipment
Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.
CONNECTS TOClients, servers or access links
LS108GPEthernet Switch
USED FORConnected network equipment
Connection and installation requirements
- Port type, line rate, optics, reach and software license
- Peer platform support, resiliency and management design
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | LS108GP |
| Product family | Business ethernet switchs |
| Documented hardware version | V1; match the hardware revision before ordering |
| Interface | • 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mounting |
| Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8, up to 30 W PoE output per port • PoE Budget: 62 W |
| Dimensions ( W x D x H ) | 6.2×3.9×1.0 in (158×99×25 mm) |
| Max. Power Consumption | • 5.53 W (220 V/50 Hz. no PD connected) • 71.61 W (220 V/50 Hz. with 62 W PD connected) |
| Max. Heat Dissipation | • 18.81 BTU/h (220 V/50 Hz. no PD connected) • 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected) |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Transmission Method | Store-And-Forward |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Advanced Features | • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery Button (Ports 1-8) • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Green Technology |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
PRODUCT DETAILS
Features and applications
LS108GP at a glance
TP-Link LS108GP is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.
- Interface: • 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX
- Fan Quantity: Fanless
- Installation: • Desktop • Wall Mounting
Configuration and installation
Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
