TP-Link / Ethernet Switch

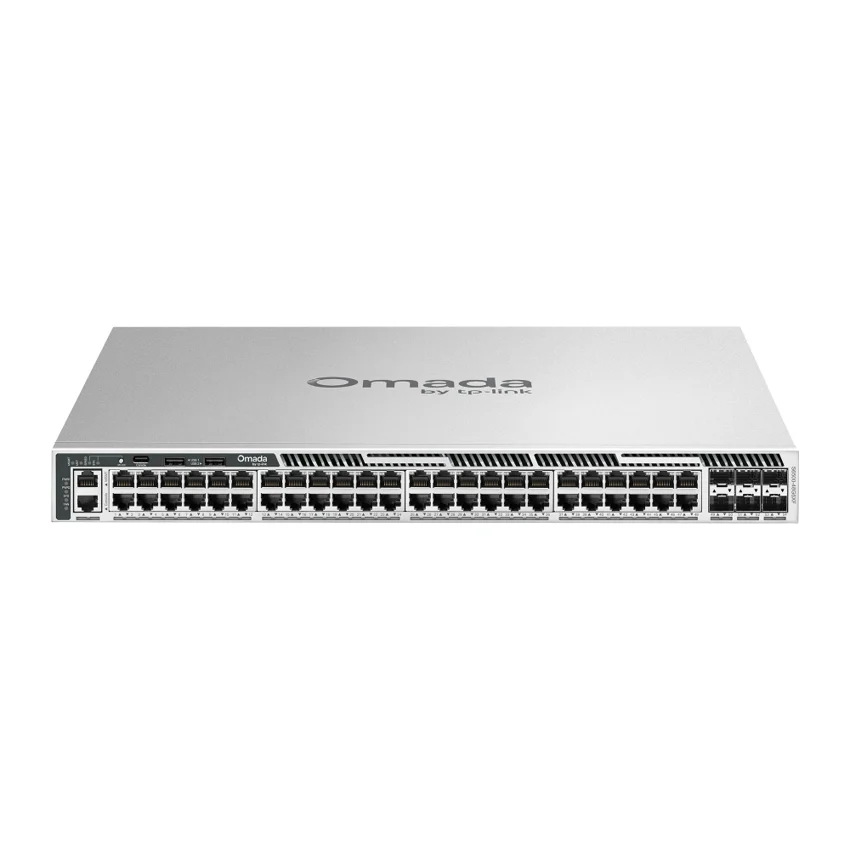

TP-Link S6500-48G6XF

Manufacturer P/N: S6500-48G6XF

TP-Link S6500-48G6XF ethernet switch. Fan Quantity: Four Internal Fixed Fans; Power Supply: Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz); Dimensions ( W x D x H ): 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm). Compare configuration and request a hardware quote.

Documented hardware version: V1.20; match the hardware revision before ordering
Fan Quantity: Four Internal Fixed Fans
Power Supply: Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Dimensions ( W x D x H ): 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

S6500-48G6XFEthernet Switch

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

S6500-48G6XF specifications
Manufacturer	TP-Link
Manufacturer part number	S6500-48G6XF
Product family	Business ethernet switchs
Documented hardware version	V1.20; match the hardware revision before ordering
Fan Quantity	Four Internal Fixed Fans
Power Supply	Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Dimensions ( W x D x H )	17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting	Rackmountable
Max. Power Consumption	39.8 W (220 V/50 Hz)
Max Heat Dissipation	135.81 BTU/hr (220 V/50 Hz)
Packet Buffer Memory	3 MB
Jumbo Frame	9 KB
Switching Capacity	216 Gbps per Unit
Packet Forwarding Rate	160.7 Mpps
MAC Address Table	32 K
Virtualization	• IP Tunnel - IPv6 over IPv4 - IPv6 over IPv4 GRE - IPv4 over IPv4 GRE - Tunnel entries: 100
Omada App	Yes, through Omada and Omada Pro Controller
Centralized Management	• Omada and Omada Pro Cloud-Based Controller • Omada and Omada Pro Hardware Controller • Omada and Omada Pro Software Controller
Cloud Access	Yes, through Omada and Omada Pro Controller
Zero-Touch Provisioning	Yes. Requiring the use of Omada and Omada Pro Cloud-Based Controller.
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Quality of Service	• Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark) • WRED profile: 16
L3 Features	• L3 Interface: 4094 (IPv4,IPv6) • Static Route: 1,024 IPv4, 512 IPv6 • Host Route Table: Max 6,100 entries • IPv4 Network Router entries: 10,240 (shared with IPv6 Network Router entries) • IPv6 Network Router entries: 5,120 (shared with IPv4 Network Router entries) • ECMP: 256 entries, max 32 ECMP Nexthops per Destination • Static ARP: 512 static entries • Dynamic ARP: 7,680 dynamic entries • ND: 7680 • DHCP Server: Max 64 IP pool, Max 8,000 IP entries • DHCPv4/v6 Relay • VRRP: Version v2/v3, Max 64 instances, Max 32 Virtual IP per instance • OSPFv2 - OSPF Instance: 16 - Network Entries: 256 entries - Area Entries for Stub or NSSA: 16 per instance - Area Range Entries: 16 per instance - Virtual-link Entries: 16 per instance • OSPFv3 - Area Entries for Stub or NSSA: 16 per instance - Area Range Entries: 16 per instance • RIPv1/v2 - Network Entries: 256 - Redistribute Entries: 20 • RIPng • IS-IS - IS-IS Interfaces: 128 - IS-IS Area Numbers: 3 - Max Redistribute Configs: 10 - IS-IS IPV6 - IS-IS BFD • BGP: Max 20 redistribute configs • PIM-DM/PIM-SM/PIM-SSM - IP Multicast Route Entries: 1K - PIM Neighbors: 256 - Max PIM Interfaces: 128 • IGMP: Version v1/v2/v3, Max 2,048 multicast groups • BFD: 16 template numbers, 8 session numbers • PBR • uRPF
L2 and L2+ Features	• Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • ERPS • Mirroring • RSPAN • MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - Multicast VLAN Registration (MVR) - Max Multicast Table: 4K (IPv4, IPv6) - Fast Leave - Static Multicast Groups - Multicast Filtering - IGMP Snooping Authentication
VLAN	• Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 200 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • Voice VLAN • Private VLAN
Security	• Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC-Port Binding -1,024 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control • MACSec (-128, -256) • Secure boot • RADSEC
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment	• Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters • Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

PRODUCT DETAILS

Features and applications

S6500-48G6XF at a glance

TP-Link S6500-48G6XF is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.

Fan Quantity: Four Internal Fixed Fans
Power Supply: Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Dimensions ( W x D x H ): 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)

Configuration and installation

Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related business Ethernet switches

Ordering questions

What should I include in an enquiry?

Send S6500-48G6XF with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.

Browse TP-Link equipment · Network equipment · Request a matched quotation

Prepare your enquiry

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
