TP-Link / Ethernet Switch

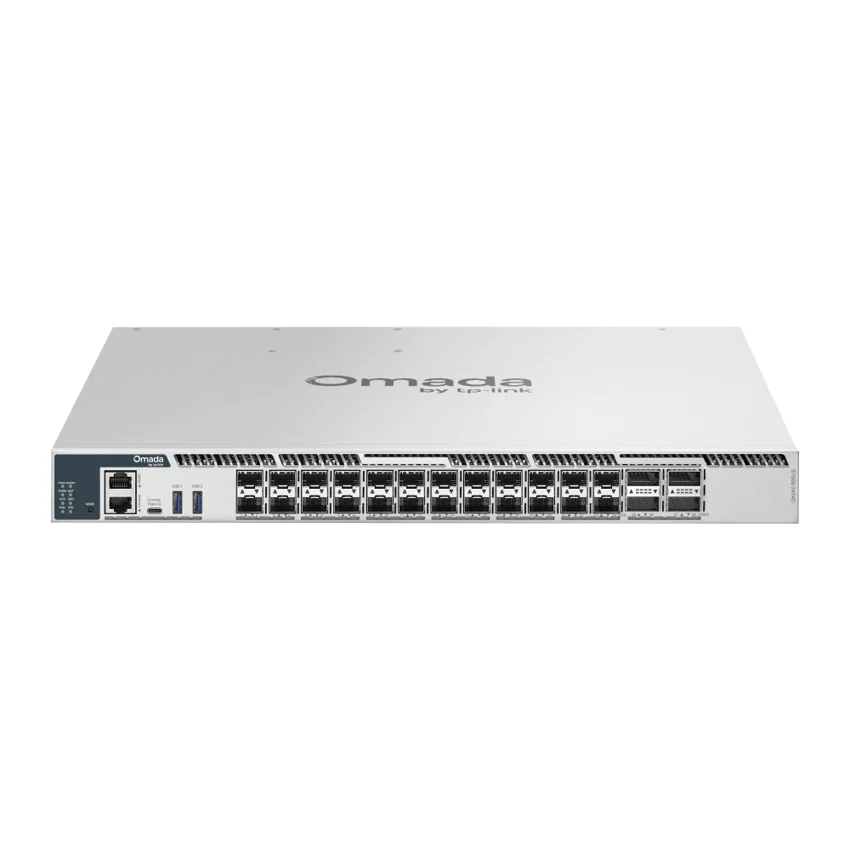

TP-Link S7500-24Y4C

Manufacturer P/N: S7500-24Y4C

TP-Link S7500-24Y4C ethernet switch. Fan Quantity: Four Field-replaceable and Hot-swappable Fans; Dimensions ( W x D x H ): 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm); Mounting: Rackmountable. Compare configuration and request a hardware quote.

Documented hardware version: V1.20; match the hardware revision before ordering
Interface: • 24× 1/10/25G SFP28 Slots• 4× 40/100G QSFP28 Slots• 2× USB 3.0 Ports• 1× RJ45 Console Port• 1× USB Type-C Console Port• 1× RJ45 Management Port
Fan Quantity: Four Field-replaceable and Hot-swappable Fans
Dimensions ( W x D x H ): 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

S7500-24Y4CEthernet Switch

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

S7500-24Y4C specifications
Manufacturer	TP-Link
Manufacturer part number	S7500-24Y4C
Product family	Business ethernet switchs
Documented hardware version	V1.20; match the hardware revision before ordering
Interface	• 24× 1/10/25G SFP28 Slots• 4× 40/100G QSFP28 Slots• 2× USB 3.0 Ports• 1× RJ45 Console Port• 1× USB Type-C Console Port• 1× RJ45 Management Port
Fan Quantity	Four Field-replaceable and Hot-swappable Fans
Dimensions ( W x D x H )	17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting	Rackmountable
Max. Power Consumption	137.63W (220 V/50 Hz)
Max. Heat Dissipation	469.6BTU/hr (220 V/50 Hz)
Packet Buffer Memory	64 Mbit
Jumbo Frame	9 KB
Switching Capacity	2 Tbps
Packet Forwarding Rate	810 Mpps
MAC Address Table	Max 128 K
M-LAG	• M-LAG domain configuration • DAD (Dual-Active Detection) • Peer-link-port LAG
PTP	• IEEE 1588v2 (PTPv2), IEEE 802.1AS • Clock-type: oc, bc, e2etc, p2ptc
Omada App	Yes, through Omada and Omada Pro Controller
Centralized Management	• Omada and Omada Pro Cloud-Based Controller • Omada and Omada Pro Hardware Controller • Omada and Omada Pro Software Controller
Cloud Access	Yes, through Omada and Omada Pro Controller
Zero-Touch Provisioning	Yes. Requiring the use of Omada and Omada Pro Cloud-Based Controller.
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Quality of Service	• Class of Service - Priority Queues: 8 Queues - Port Priority - IEEE 802.1p Priority - DSCP/ToS Priority - Priority Schedule Mode: SP/WRR per Queue - Queue Weight Config: For WRR/SP+WRR Mode • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • WRED
L3 Features	• L3 Interface: 4,094 (IPv4,IPv6) • Static Route: 2,048 IPv4, 1,024 IPv6 • Host Route Table: Max 15,300 entries • IPv4 Network Router Entries: Max 102,400 (shared with IPv6 Network Router entries) • IPv6 Network Router Entries: Max 51,200 (shared with IPv4 Network Router entries) • ECMP • Dynamic ARP: 24,576 • ND: 24,576 • DHCPv4 Server: Max 64 IP pool • DHCPv4/v6 Relay • VRRPv2/v3 • OSPFv2/v3 • RIPv1/v2 • RIPng • VRF • IS-ISv4/v6 • BGPv4 • PIM-SM/PIM-DM/PIM-SSM • IGMPv1/v2/v3, IGMP Groups: 2,048 • BFD: 16 template numbers, 8 session numbers • PBR • uRPF
L2 and L2+ Features	• LACP / Static LAG • STP / RSTP / MSTP / STP Security • ERPS • Port Isolation • Loopback Detection • Port Security • Sticky MAC • 802.3x Flow Control • Port Mirror • RSPAN • LLDP • LLDP-MED • Multicast - IGMP Snooping - MLD Snooping - Multicast VLAN Registration (MVR) - Max Multicast Table: 4K (IPv4, IPv6) - Fast Leave - IGMP Snooping Querier - MLD Snooping Querier - Multicast Filtering - Unknown Multicast Discard
Advanced Features	• Automatic Device Discovery ‡ • Batch Configuration ‡ • Batch Firmware Upgrading ‡ • Intelligent Network Monitoring ‡ • Abnormal Event Warnings ‡ • Unified Configuration ‡ • Reboot Schedule ‡ ISP Features : • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow
VLAN	• 802.1Q VLAN(802.1q): 4K VLANs • MAC VLAN: 200 entries • Protocol VLAN (IEEE 802.1v) - 16 Protocol VLAN Templates - 12 Protocol VLAN Groups • QinQ(VLAN VPN): 256 entries • Private VLAN • GVRP
Security	• IP-MAC-Port Binding -1,024 Entries - ARP Scanning - Manual Binding - DHCP Snooping • IPv6-MAC-Port Binding -1,024 Entries - DHCPv6 Snooping - Manual Binding - ND Snooping • ARP Inspection (Dynamic ARP Inspection) • ND Detection • IP Source Guard • IPv6 Source Guard • RA Guard: 30 entries • DoS Defend • DHCP Filter • 802.1X - Radius Authentication - Radius Accounting - Radius Server Load Balancing - RADSEC - Guest VLAN - VLAN Assignment - MAB • AAA (including TACACS+) • ACL • Secure boot
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Password Recovery • SNTP • System Log
Environment	• Operating Temperature: -5 ℃ to 50 ℃ (23 ℉ to 122 ℉) @ 300 meters -5 ℃ to 45 ℃ (23 ℉ to 113 ℉) @ 2,000 meters -5 ℃ to 40 ℃ (23 ℉ to 104 ℉) @ 3,000 meters • Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

PRODUCT DETAILS

Features and applications

S7500-24Y4C at a glance

TP-Link S7500-24Y4C is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.

Fan Quantity: Four Field-replaceable and Hot-swappable Fans
Dimensions ( W x D x H ): 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting: Rackmountable

Configuration and installation

Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related business Ethernet switches

Ordering questions

What should I include in an enquiry?

Send S7500-24Y4C with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.

Browse TP-Link equipment · Network equipment · Request a matched quotation

Prepare your enquiry

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
