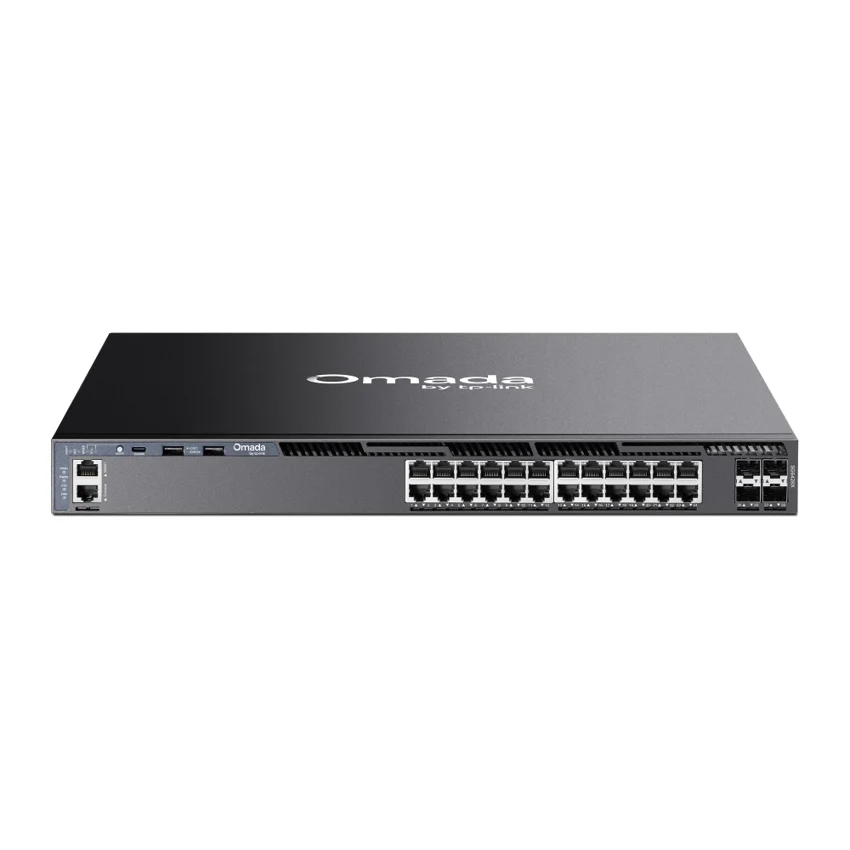

TP-Link SG6428X product reference image
Product reference image

TP-Link / Ethernet Switch

TP-Link SG6428X

Manufacturer P/N: SG6428X

TP-Link SG6428X ethernet switch. Fan Quantity: Four Internal Fixed Fans; Power Supply: Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz); Dimensions ( W x D x H ): 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm). Compare configuration and request a hardware quote.

Documented hardware version
V1.20; match the hardware revision before ordering
Interface
• 24× 10/100/1000 Mbps RJ45 Ports• 4× 10G SFP+ Slots• 2× USB 2.0 Ports• 1× RJ45 Console Port• 1× USB Type-C Console Port• 1× RJ45 Management Port
Fan Quantity
Four Internal Fixed Fans
Power Supply
Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)

Price on request

Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.

Place order request
Request a quote

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links
SG6428XEthernet Switch
USED FORConnected network equipment
Connection and installation requirements
  • Port type, line rate, optics, reach and software license
  • Peer platform support, resiliency and management design
Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

SG6428X specifications
ManufacturerTP-Link
Manufacturer part numberSG6428X
Product familyBusiness ethernet switchs
Documented hardware versionV1.20; match the hardware revision before ordering
Interface• 24× 10/100/1000 Mbps RJ45 Ports• 4× 10G SFP+ Slots• 2× USB 2.0 Ports• 1× RJ45 Console Port• 1× USB Type-C Console Port• 1× RJ45 Management Port
Fan QuantityFour Internal Fixed Fans
Power SupplyTwo Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Dimensions ( W x D x H )17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
MountingRackmountable
Max. Power Consumption28.4 W (220 V/50 Hz)
Max Heat Dissipation96.91 BTU/hr (220 V/50 Hz)
Packet Buffer Memory3 MB
Jumbo Frame9 KB
Switching Capacity128 Gbps per Unit
Packet Forwarding Rate95.2 Mpps
MAC Address Table32 K
Omada AppYes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Cloud AccessYes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of the Omada Cloud-Based Controller.
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Quality of Service• Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Strom Control • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark)
L3 Features• L3 Interface: 4,094 (IPv4,IPv6) • Static Route: 1,024 IPv4, 512 IPv6 • Host Route Table: Max 8,000 entries • IPv4 Network Router Entries: Max 10,240 (shared with IPv6 Network Router entries) • IPv6 Network Router Entries: Max 10,240 (shared with IPv4 Network Router entries) • ECMP • Dynamic ARP: 12,288 • ND: 12,288 (shared with ARP) • DHCPv4 Server: Max 64 IP Pools • DHCPv6 Server: Max 64 IP Pools • DHCPv4/v6 Relay • VRRPv2/v3 • OSPFv2/v3 • RIPv1/v2 • RIPng • VRF • PIM-SM/PIM-DM/PIM-SSM • IGMPv1/v2/v3, IGMP Groups: 2048 • PBR
L2 and L2+ Features• LACP / Static LAG • STP / RSTP / MSTP / STP Security • ERPS • Port Isolation • Loopback Detection • Port Security • Sticky MAC • 802.3x Flow Control • Port Mirror • RSPAN • LLDP • LLDP-MED • Multicast - IGMP Snooping - MLD Snooping - Multicast VLAN Registration (MVR) - Max Multicast Table: 4K (IPv4, IPv6) - Fast Leave - IGMP Snooping Querier - MLD Snooping Querier - Multicast Filtering - Unknown Multicast Discard
VLAN• 802.1Q VLAN(802.1q): 4K VLANs • MAC VLAN: 256 entries • Protocol VLAN (IEEE 802.1v) - 16 Protocol VLAN Templates - 12 Protocol VLAN Groups • QinQ(VLAN VPN): 256 entries • Private VLAN • GVRP
Security• IP-MAC-Port Binding -8,192 Entries - ARP Scanning - Manual Binding - DHCP Snooping • IPv6-MAC-Port Binding -8,192 Entries - DHCPv6 Snooping - Manual Binding - ND Snooping • ARP Inspection (Dynamic ARP Inspection) • ND Detection • IP Source Guard • IPv6 Source Guard • RA Guard: 30 entries • DoS Defend • DHCP Filter • 802.1X - Radius Authentication - Radius Accounting - Guest VLAN - VLAN Assignment - MAB • AAA (including TACACS+) • ACL
Centralized Management• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later)
Management Features• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log
Environment• Operating Temperature: -5 ℃ to 50 ℃ (23 ℉ to 122 ℉) @ 300 meters -5 ℃ to 45 ℃ (23 ℉ to 113 ℉) @ 2,000 meters -5 ℃ to 40 ℃ (23 ℉ to 104 ℉) @ 3,000 meters • Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

PRODUCT DETAILS

Features and applications

SG6428X at a glance

TP-Link SG6428X is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.

  • Fan Quantity: Four Internal Fixed Fans
  • Power Supply: Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
  • Dimensions ( W x D x H ): 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)

Configuration and installation

Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
