TP-Link / Ethernet Switch

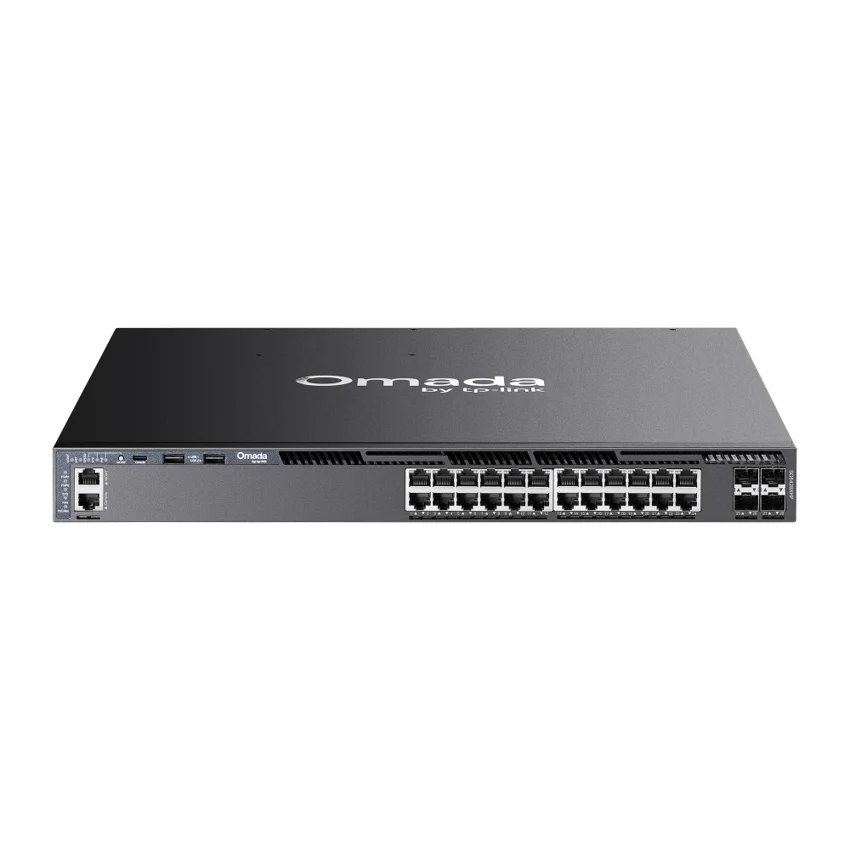

TP-Link SG6428XHP

Manufacturer P/N: SG6428XHP

TP-Link SG6428XHP ethernet switch. Fan Quantity: Four Field-replaceable and Hot-swappable Fans; Dimensions ( W x D x H ): 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm); Mounting: Rackmountable. Compare configuration and request a hardware quote.

Documented hardware version: V1.20; match the hardware revision before ordering
Interface: • 24× 10/100/1000 Mbps PoE+ RJ45 Ports• 4× 10G SFP+ Slots• 2× USB 2.0 Ports• 1× RJ45 Console Port• 1× USB Type-C Console Port• 1× RJ45 Management Port
Fan Quantity: Four Field-replaceable and Hot-swappable Fans
Dimensions ( W x D x H ): 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

SG6428XHPEthernet Switch

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

SG6428XHP specifications
Manufacturer	TP-Link
Manufacturer part number	SG6428XHP
Product family	Business ethernet switchs
Documented hardware version	V1.20; match the hardware revision before ordering
Interface	• 24× 10/100/1000 Mbps PoE+ RJ45 Ports• 4× 10G SFP+ Slots• 2× USB 2.0 Ports• 1× RJ45 Console Port• 1× USB Type-C Console Port• 1× RJ45 Management Port
Fan Quantity	Four Field-replaceable and Hot-swappable Fans
Dimensions ( W x D x H )	17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting	Rackmountable
Max. Power Consumption	• 42.9 W (110 V/60 Hz) (With no PD connected) • 916.6 W (110 V/60 Hz) (With 720 W PD connected and powered by 2× PSM500-AC)
Max Heat Dissipation	• 146.29 BTU/hr (110 V/60 Hz) (With no PD connected) • 3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC)
Packet Buffer Memory	3 MB
Jumbo Frame	9 KB
Switching Capacity	128 Gbps per Unit
Packet Forwarding Rate	95.2 Mpps
MAC Address Table	32 K
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Stacking	• Stacking Number: 8 • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) • Stacking Bandwidth: Up to 80 Gbps (4 stacking ports)
Quality of Service	• Class of Service - Priority Queues: 8 Queues - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark)
L3 Features	• L3 Interface: 4,094 (IPv4,IPv6) • Static Route: 1,024 IPv4, 512 IPv6 • Host Route Table: Max 8,000 entries • IPv4 Network Route Entries: Max 10,240 (shared with IPv6 Network Route entries) • IPv6 Network Route Entries: Max 10,240 (shared with IPv4 Network Route entries) • ECMP • Dynamic ARP: 12,288 • ND: 12,288 (shared with ARP) • DHCPv4 Server: Max 64 IP Pools • DHCPv6 Server: Max 64 IP Pools • DHCPv4/v6 Relay • VRRPv2/v3 • OSPFv2/v3 • RIPv1/v2 • RIPng • VRF • PIM-SM/PIM-DM/PIM-SSM • IGMPv1/v2/v3, IGMP Groups: 2,048 • PBR
L2 and L2+ Features	• LACP / Static LAG • STP / RSTP / MSTP / STP Security • ERPS • Port Isolation • Loopback Detection • Port Security • Sticky MAC • 802.3x Flow Control • Port Mirror • RSPAN • LLDP • LLDP-MED • Multicast - IGMP Snooping - MLD Snooping - Multicast VLAN Registration (MVR) - Max Multicast Table: 4K (IPv4, IPv6) - Fast Leave - IGMP Snooping Querier - MLD Snooping Querier - Multicast Filtering - Unknown Multicast Discard
VLAN	• 802.1Q VLAN(802.1q): 4K VLANs • MAC VLAN: 256 entries • Protocol VLAN (IEEE 802.1v) - 16 Protocol VLAN Templates - 12 Protocol VLAN Groups • QinQ(VLAN VPN): 256 entries • Private VLAN • GVRP
Security	• IP-MAC-Port Binding -8,192 Entries - ARP Scanning - Manual Binding - DHCP Snooping • IPv6-MAC-Port Binding -8,192 Entries - DHCPv6 Snooping - Manual Binding - ND Snooping • ARP Inspection (Dynamic ARP Inspection) • ND Detection • IP Source Guard • IPv6 Source Guard • RA Guard: 30 entries • DoS Defend • DHCP Filter • 802.1X - Radius Authentication - Radius Accounting - Guest VLAN - VLAN Assignment - MAB • AAA (including TACACS+) • ACL
Centralized Management	• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later)
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment	• Operating Temperature: -5 ℃ to 45 ℃ (23 ℉ to 113 ℉) @ 2,000 meters -5 ℃ to 40 ℃ (23 ℉ to 104 ℉) @ 3,000 meters • Storage Temperature: -40 ℃ to 70 ℃ (-40 °F to 158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

PRODUCT DETAILS

Features and applications

SG6428XHP at a glance

TP-Link SG6428XHP is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.

Fan Quantity: Four Field-replaceable and Hot-swappable Fans
Dimensions ( W x D x H ): 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting: Rackmountable

Configuration and installation

Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related business Ethernet switches

Ordering questions

What should I include in an enquiry?

Send SG6428XHP with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.

Browse TP-Link equipment · Network equipment · Request a matched quotation

Prepare your enquiry

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
