TP-Link / Optical Transceiver

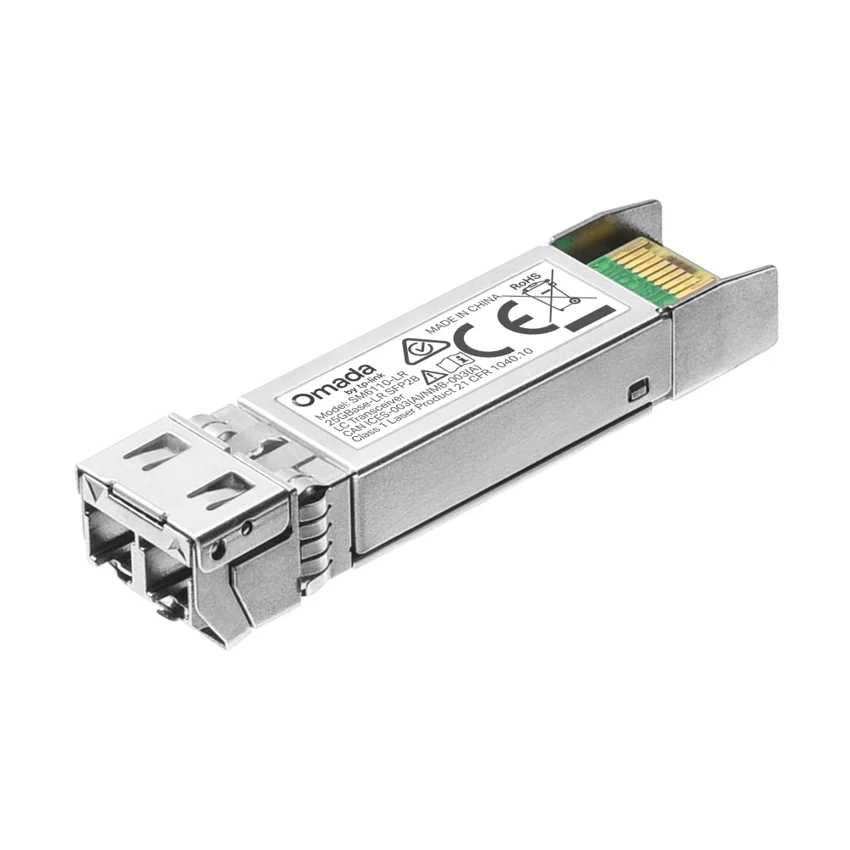

TP-Link SM6110-LR

Manufacturer P/N: SM6110-LR

TP-Link SM6110-LR optical transceiver. DDM: Yes; SFP-MSA: Yes; Hot Swappable: Yes. Compare configuration and request a hardware quote.

Documented hardware version: V1.20; match the hardware revision before ordering
DDM: Yes
SFP-MSA: Yes
Hot Swappable: Yes

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Cable and transceiver compatibility

Match both endpoints before selecting this cable or transceiver. Connector shape and nominal speed alone do not establish interoperability.

CONNECTS TOQualified port on the first device

SM6110-LROptical Transceiver

USED FORQualified port on the peer device

Connection and installation requirements

Both host platforms, port type and supported module coding
Protocol, reach, fiber or copper medium and connector polarity

Networking equipment ↗Components & accessories ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

SM6110-LR specifications
Manufacturer	TP-Link
Manufacturer part number	SM6110-LR
Product family	Business optical transceivers
Documented hardware version	V1.20; match the hardware revision before ordering
DDM	Yes
SFP-MSA	Yes
Hot Swappable	Yes
Dimensions ( W x D x H )	2.3 × 0.5 × 0.5 in (57.0 × 13.9 × 11.7 mm)
Standards and Protocols	• IEEE 802.3ae, 802.3cc• SFF-8402, SFF-8431, SFF-8432, SFF-8472• eCPRI, CPRI• TCP/IP
Wave Length	1310 nm
Power Supply	3.3V
Fiber Type	9/125um Single-Mode
Max. Cable Length	10 km
Connector	Duplex LC/UPC
Regulatory Compliance	CE, FCC, RoHS
Data Rate	Dual Rate 25.78 Gbps and 10.31 Gbps
Environment	• Operating Temperature: 0°C to 70°C (32°F to 158°F)• Storage Temperature: -40°C to 85°C (-40°F to 185°F)• Operating Humidity: 5% to 85% RH non-condensing• Storage Humidity: 5% to 85% RH non-condensing

PRODUCT DETAILS

Features and applications

SM6110-LR at a glance

TP-Link SM6110-LR is an optical transceiver in the Business optical transceivers range. Use the model code when matching your deployment or replacement requirement.

DDM: Yes
SFP-MSA: Yes
Hot Swappable: Yes

Configuration and installation

Match the optical standard, wavelength, fiber type, connector and link budget at both ends. Reach is conditional on the documented medium; connector fit alone does not establish compatibility.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
