TP-Link / Ethernet Switch

TP-Link SX6632YF

Manufacturer P/N: SX6632YF

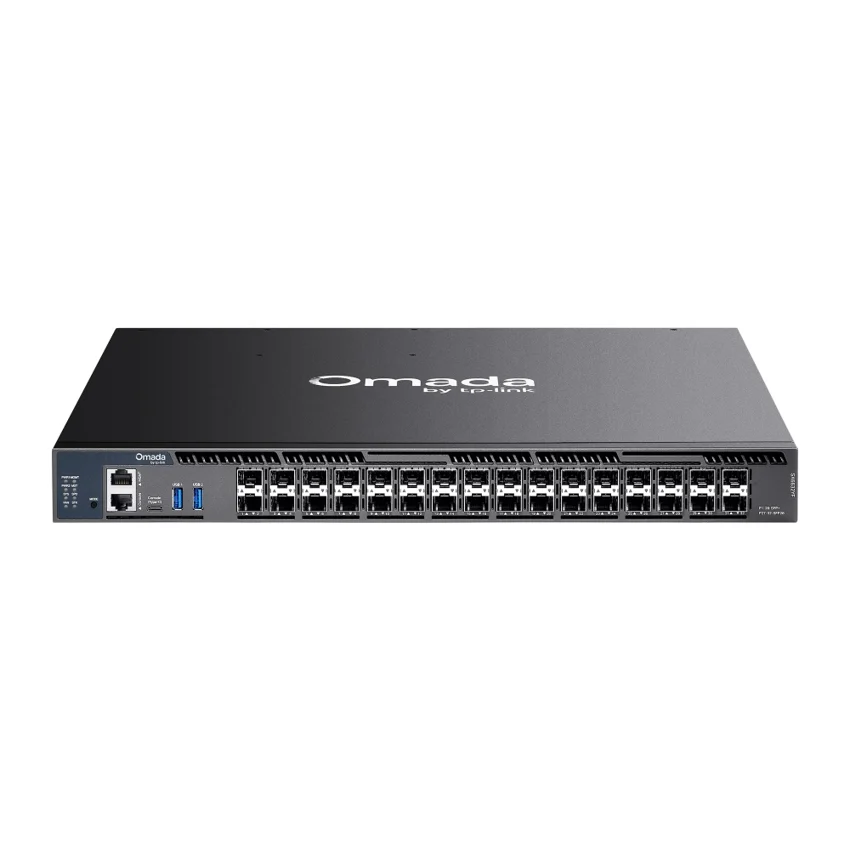

TP-Link SX6632YF ethernet switch. Fan Quantity: Four field-replaceable and hot-swappable fans (N+1 redundant); Physical Security Lock: √; Max. Power Consumption: 86.7 W (110 V/60 Hz). Compare configuration and request a hardware quote.

Documented hardware version: V1.20; match the hardware revision before ordering
Interface: • 6× 10/25G SFP28 Slots• 26× 1/10G SFP+ Slots• 2× USB 3.0 Ports• 1× RJ45 Console Port• 1× USB Type C Console Port• 1× RJ45 Management Port
Fan Quantity: Four field-replaceable and hot-swappable fans (N+1 redundant)
Physical Security Lock: √

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

SX6632YFEthernet Switch

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

SX6632YF specifications
Manufacturer	TP-Link
Manufacturer part number	SX6632YF
Product family	Business ethernet switchs
Documented hardware version	V1.20; match the hardware revision before ordering
Interface	• 6× 10/25G SFP28 Slots• 26× 1/10G SFP+ Slots• 2× USB 3.0 Ports• 1× RJ45 Console Port• 1× USB Type C Console Port• 1× RJ45 Management Port
Fan Quantity	Four field-replaceable and hot-swappable fans (N+1 redundant)
Physical Security Lock	√
Max. Power Consumption	86.7 W (110 V/60 Hz)
Dimensions ( W x D x H )	17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting	Rack Mountable
Max Heat Dissipation	295.85 BTU/hr (110 V/60 Hz)
Packet Buffer Memory	8 MB
Jumbo Frame	9 KB
Stacking	• Stacking Number: 8 • Stacking Port: 25G SFP28 • Stack Bandwidth: Up to 300 Gbps (6 stack ports)
Switching Capacity	820 Gbps
Packet Forwarding Rate	610.1 Mpps
MAC Address Table	128 K
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Quality of Service	• Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Strom Control • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark)
L3 Features	• L3 Interface: 4,094 (IPv4,IPv6) • Static Route: 2,048 IPv4, 1,024 IPv6 • Host Route Table: Max 15,300 entries • IPv4 Network Route Entries: Max 102,400 (shared with IPv6 Network Route entries) • IPv6 Network Route Entries: Max 51,200 (shared with IPv4 Network Route entries) • ECMP • Dynamic ARP: 24,576 • ND: 24,576 • DHCPv4 Server: Max 64 IP pool • DHCPv4/v6 Relay • VRRPv2/v3 • OSPFv2/v3 • RIPv1/v2 • RIPng • VRF • PIM-SM/PIM-DM/PIM-SSM • IGMPv1/v2/v3, IGMP Groups: 2,048 • PBR
L2 and L2+ Features	• LACP / Static LAG • STP / RSTP / MSTP / STP Security • ERPS • Port Isolation • Loopback Detection • Port Security • Sticky MAC • 802.3x Flow Control • Port Mirror • RSPAN • LLDP • LLDP-MED • Multicast - IGMP Snooping - MLD Snooping - Multicast VLAN Registration (MVR) - Max Multicast Table: 4K (IPv4, IPv6) - Fast Leave - IGMP Snooping Querier - MLD Snooping Querier - Multicast Filtering - Unknown Multicast Discard
VLAN	• 802.1Q VLAN(802.1q): 4K VLANs • MAC VLAN: 200 entries • Protocol VLAN (IEEE 802.1v) - 16 Protocol VLAN Templates - 12 Protocol VLAN Groups • QinQ(VLAN VPN): 256 entries • Private VLAN • GVRP
Security	• IP-MAC-Port Binding -1,024 Entries - ARP Scanning - Manual Binding - DHCP Snooping • IPv6-MAC-Port Binding -1,024 Entries - DHCPv6 Snooping - Manual Binding - ND Snooping • ARP Inspection (Dynamic ARP Inspection) • ND Detection • IP Source Guard • IPv6 Source Guard • RA Guard: 30 entries • DoS Defend • DHCP Filter • 802.1X - Radius Authentication - Radius Accounting - Guest VLAN - VLAN Assignment - MAB • AAA (including TACACS+) • ACL
Centralized Management	• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later)
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log
Environment	• Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters • Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

PRODUCT DETAILS

Features and applications

SX6632YF at a glance

TP-Link SX6632YF is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.

Fan Quantity: Four field-replaceable and hot-swappable fans (N+1 redundant)
Physical Security Lock: √
Max. Power Consumption: 86.7 W (110 V/60 Hz)

Configuration and installation

Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
