TP-Link / Ethernet Switch

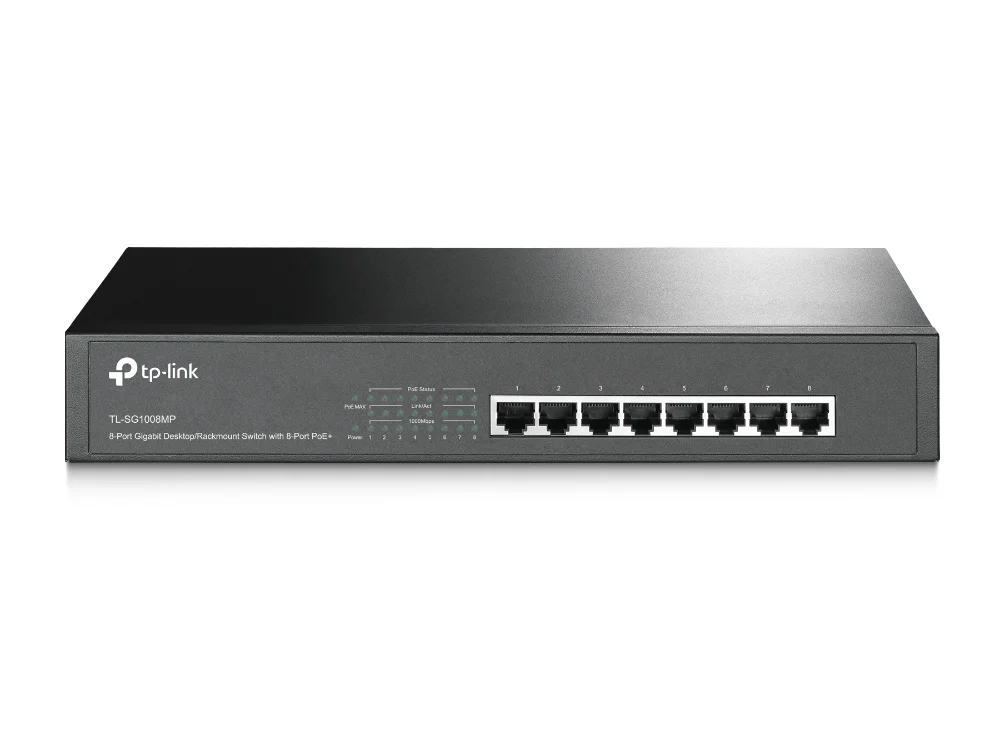

TP-Link TL-SG1008MP

Manufacturer P/N: TL-SG1008MP

TP-Link TL-SG1008MP ethernet switch. Interface: 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX; Fan Quantity: 1; Physical Security Lock: No. Compare configuration and request a hardware quote.

Documented hardware version: V5; match the hardware revision before ordering
Interface: 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity: 1
Physical Security Lock: No

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

TL-SG1008MPEthernet Switch

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

TL-SG1008MP specifications
Manufacturer	TP-Link
Manufacturer part number	TL-SG1008MP
Product family	Business ethernet switchs
Documented hardware version	V5; match the hardware revision before ordering
Interface	8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity	1
Physical Security Lock	No
Power Supply	100-240VAC, 50/60Hz
Packet Forwarding Rate	11.904 Mpps
PoE Ports (RJ45)	Standard: 802.3af/at compliant PoE+ Ports: 8 Ports Power Supply: 153W
Mac Address Table	4K
Buffer Size	1.5Mbits
Jumbo Frame	16 KB
Switching Capacity	16Gbps
Mounting	Desktop/Rack Mountable
Max. Power Consumption	• 8.77 W(220V/50Hz. no PD connected) • 172.49 W(110V/60Hz. with 153W PD connected)
Max. Heat Dissipation	• 29.91 BTU/h(no PD connected) • 588.19 BTU/h(with 153W PD connected)
Transmission Method	Store-And-Forward
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Advanced Features	• Compatible With IEEE 802.3af/at Compliant PDs • Priority Function • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-8)
Environment	Operating Temperature: 0℃~50℃ (32℉~122℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

PRODUCT DETAILS

Features and applications

TL-SG1008MP at a glance

TP-Link TL-SG1008MP is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.

Interface: 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity: 1
Physical Security Lock: No

Configuration and installation

Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related business Ethernet switches

Ordering questions

What should I include in an enquiry?

Send TL-SG1008MP with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
