Model and quantity
Include the full model, manufacturer P/N, revision and quantity.
TP-Link / Ethernet Switch

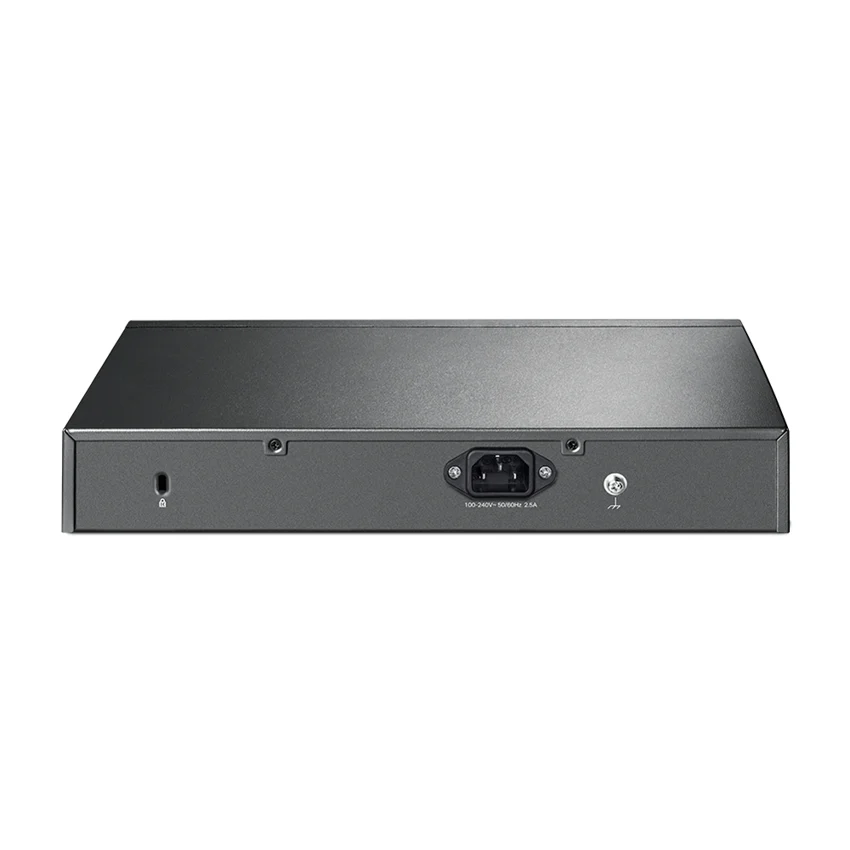

TP-Link TL-SG1016PE
Manufacturer P/N: TL-SG1016PE
TP-Link TL-SG1016PE ethernet switch. Interface: 16× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX; Fan Quantity: Fanless; Physical Security Lock: Yes. Compare configuration and request a hardware quote.
- Documented hardware version
- V6; match the hardware revision before ordering
- Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface
- 16× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
- Fan Quantity
- Fanless
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Network connections and supported equipment
Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.
CONNECTS TOClients, servers or access links
TL-SG1016PEEthernet Switch
USED FORConnected network equipment
Connection and installation requirements
- Port type, line rate, optics, reach and software license
- Peer platform support, resiliency and management design
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | TL-SG1016PE |
| Product family | Business ethernet switchs |
| Documented hardware version | V6; match the hardware revision before ordering |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 16× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1 to Port 8 PoE Power Budget: 150 W |
| Dimensions ( W x D x H ) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Mounting | Rack Mountable/ Desktop |
| Max. Power Consumption | 13.07 W (220 V/50 Hz with no PD connected) 173.88 W (220 V/50 Hz with 150 W PD connected) |
| Max. Heat Dissipation | 44.438 BTU/h (220 V/50 Hz with no PD connected) 591.192 BTU/h (220 V/50 Hz with 150 W PD connected) |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.8 Mbps |
| MAC Address Table | 8K |
| Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| PoE | PoE Management Extend Mode PoE Auto Recovery |
| Management Features | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| System Requirements | Microsoft® Windows® for running Utility |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Environment | Operating Temperature: 0–45 ℃ (32–113 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% non-condensing Storage Humidity: 5–90% non-condensing |
PRODUCT DETAILS
Features and applications
TL-SG1016PE at a glance
TP-Link TL-SG1016PE is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.
- Interface: 16× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
- Fan Quantity: Fanless
- Physical Security Lock: Yes
Configuration and installation
Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
