Model and quantity
Include the full model, manufacturer P/N, revision and quantity.
TP-Link / Ethernet Switch

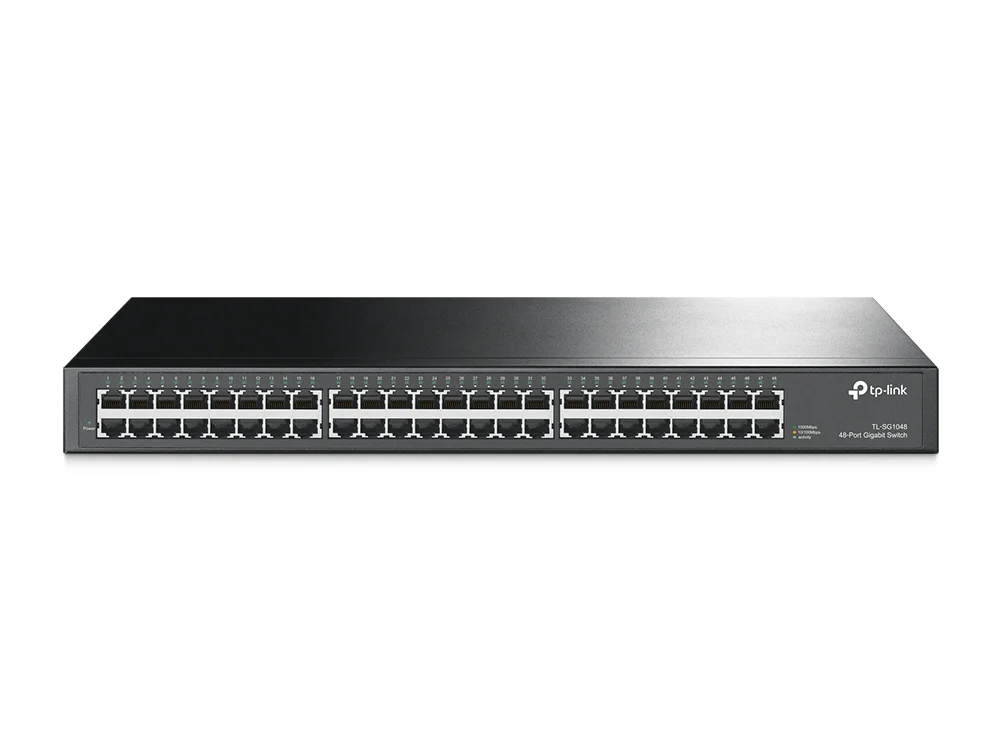

TP-Link TL-SG1048
Manufacturer P/N: TL-SG1048
TP-Link TL-SG1048 ethernet switch. Interface: 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX); Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m); Physical Security Lock: No. Compare configuration and
- Documented hardware version
- V1; match the hardware revision before ordering
- Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Interface
- 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Network connections and supported equipment
Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.
CONNECTS TOClients, servers or access links
TL-SG1048Ethernet Switch
USED FORConnected network equipment
Connection and installation requirements
- Port type, line rate, optics, reach and software license
- Peer platform support, resiliency and management design
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | TL-SG1048 |
| Product family | Business ethernet switchs |
| Documented hardware version | V1; match the hardware revision before ordering |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Interface | 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Dimensions ( W x D x H ) | 17.3 x 8.7 x 1.7 in. (440 x 220 x 44 mm) |
| Mounting | 19" 1U Rack Mountable (Mounting bracket included) |
| Max. Power Consumption | 32.3W |
| Max. Heat Dissipation | 110.2BTU/h |
| Switching Capacity | 96Gbps |
| Packet Forwarding Rate | 71.4Mpps |
| MAC Address Table | 16K |
| Buffer Memory | 12Mb |
| Jumbo Frame | 12KB |
| Transmission Method | Store-and-Forward |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
PRODUCT DETAILS
Features and applications
TL-SG1048 at a glance
TP-Link TL-SG1048 is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.
- Interface: 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
- Physical Security Lock: No
Configuration and installation
Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
Related business Ethernet switches
Ordering questions
What should I include in an enquiry?
Send TL-SG1048 with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.
Are accessories and support included?
Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
Browse TP-Link equipment · Network equipment · Request a matched quotation
Prepare your enquiry
Ordering and delivery
Your existing equipment
Tell us the host model, generation, installed configuration and required supporting hardware.
Delivery requirements
Specify condition, testing requirements, destination and requested delivery date.
RELATED PRODUCTS
Related products and options
Check compatibility before choosing a replacement. The products below are related, but may not be interchangeable.
Browse this equipment range
Ethernet & fabric switches
Access, aggregation and data-centre switching. Start with the required port speeds, then review uplinks, PoE, airflow and software options.
