Model and quantity
Include the full model, manufacturer P/N, revision and quantity.
TP-Link / Ethernet Switch

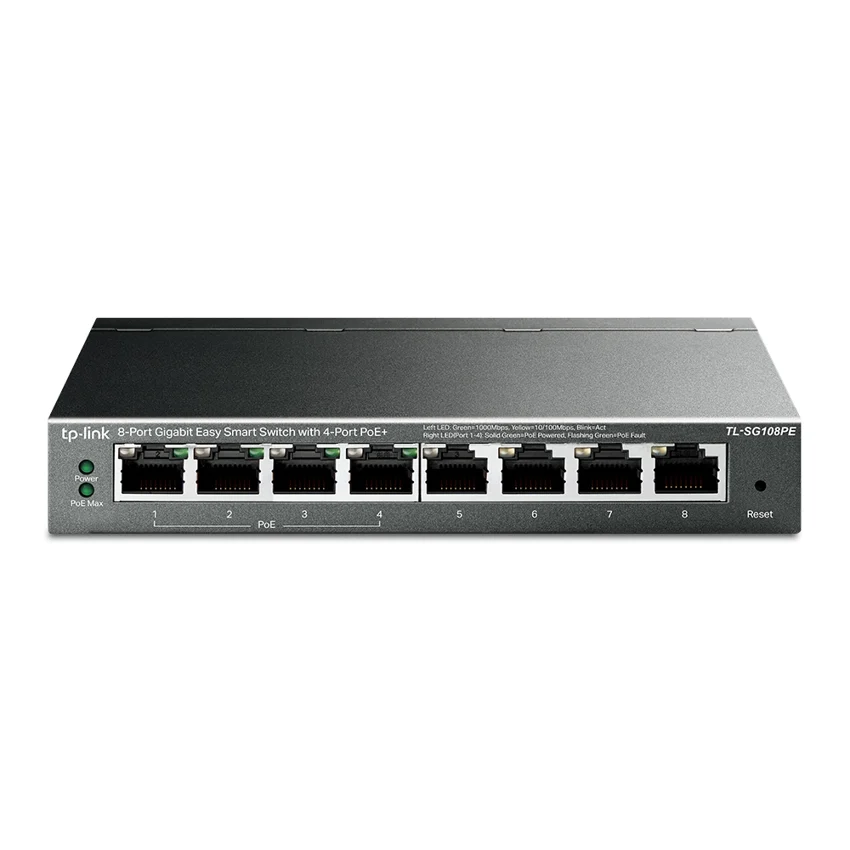

TP-Link TL-SG108PE
Manufacturer P/N: TL-SG108PE
TP-Link TL-SG108PE ethernet switch. Interface: Eight 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX; Fan Quantity: Fanless; Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A). Compare configuration and request a hardware quote.
- Documented hardware version
- V5; match the hardware revision before ordering
- Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
- Interface
- Eight 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX
- Fan Quantity
- Fanless
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Network connections and supported equipment
Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.
CONNECTS TOClients, servers or access links
TL-SG108PEEthernet Switch
USED FORConnected network equipment
Connection and installation requirements
- Port type, line rate, optics, reach and software license
- Peer platform support, resiliency and management design
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | TL-SG108PE |
| Product family | Business ethernet switchs |
| Documented hardware version | V5; match the hardware revision before ordering |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
| Interface | Eight 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 53.5 VDC/1.31 A) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliantPoE Ports: Port 1- Port 4PoE Power Budget: 64W |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Max. Power Consumption | 5.41 W (220V/50Hz with no PD connected)74.27 W (220V/50Hz with 64 W PD connected) |
| Max. Heat Dissipation | 18.45 BTU/h (with no PD connected)253.26 BTU/h (with 64 W PD connected) |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4 K |
| Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop PreventionPoE Auto Recovery |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management Features | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| System Requirements | Microsoft® Windows® for running Utility |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing |
PRODUCT DETAILS
Features and applications
TL-SG108PE at a glance
TP-Link TL-SG108PE is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.
- Interface: Eight 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX
- Fan Quantity: Fanless
- Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A)
Configuration and installation
Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
Related business Ethernet switches
Ordering questions
What should I include in an enquiry?
Send TL-SG108PE with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.
Are accessories and support included?
Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
Browse TP-Link equipment · Network equipment · Request a matched quotation
Prepare your enquiry
Ordering and delivery
Your existing equipment
Tell us the host model, generation, installed configuration and required supporting hardware.
Delivery requirements
Specify condition, testing requirements, destination and requested delivery date.
