Model and quantity
Include the full model, manufacturer P/N, revision and quantity.
TP-Link / Ethernet Switch

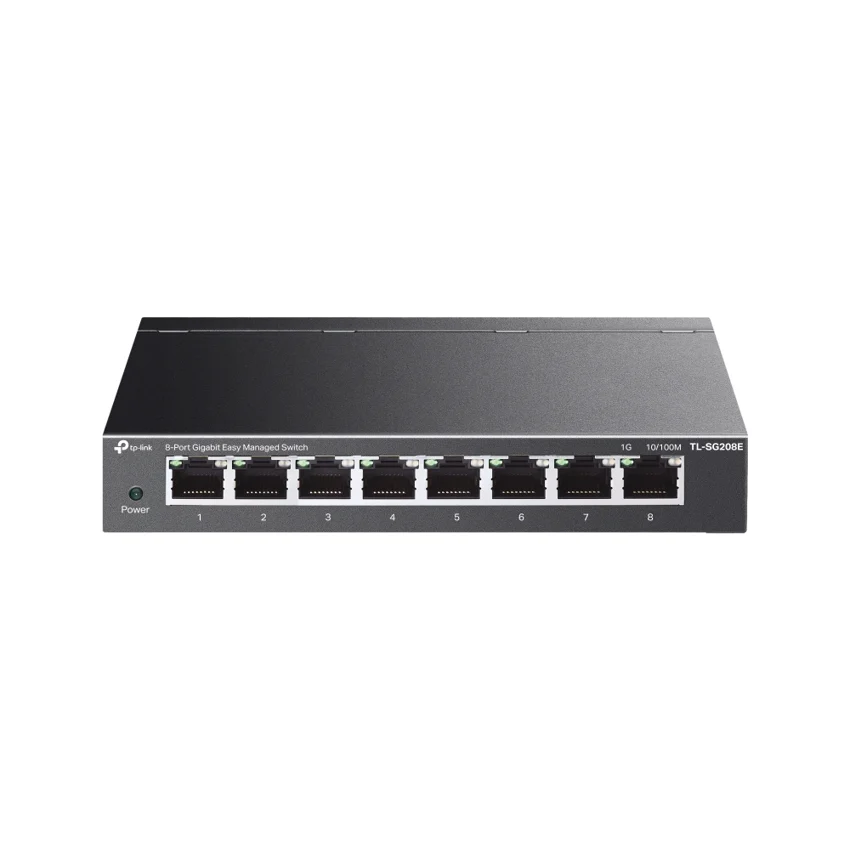

TP-Link TL-SG208E
Manufacturer P/N: TL-SG208E
TP-Link TL-SG208E ethernet switch. Interface: • 8× 10/100/1000 Mbps RJ45 Ports • Auto-Negotiation/Auto MDI/MDIX; Fan Quantity: Fanless; Installation: • Desktop • Wall Mount. Compare configuration and request a hardware quote.
- Documented hardware version
- V1; match the hardware revision before ordering
- Interface
- • 8× 10/100/1000 Mbps RJ45 Ports • Auto-Negotiation/Auto MDI/MDIX
- Fan Quantity
- Fanless
- Installation
- • Desktop • Wall Mount
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Network connections and supported equipment
Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.
CONNECTS TOClients, servers or access links
TL-SG208EEthernet Switch
USED FORConnected network equipment
Connection and installation requirements
- Port type, line rate, optics, reach and software license
- Peer platform support, resiliency and management design
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | TL-SG208E |
| Product family | Business ethernet switchs |
| Documented hardware version | V1; match the hardware revision before ordering |
| Interface | • 8× 10/100/1000 Mbps RJ45 Ports • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mount |
| Physical Security Lock | √ |
| Power Supply | DC Power Adapter (Output: 5VDC / 0.6A) |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Surge Protection | ±6kV |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Omada App | Yes. |
| Centralized Management | Yes. |
| Cloud Access | Yes. |
| Zero-Touch Provisioning | Yes. |
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control △ |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| Environment | • Operating Temperature: -5℃~45℃ (23℉~113℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
PRODUCT DETAILS
Features and applications
TL-SG208E at a glance
TP-Link TL-SG208E is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.
- Interface: • 8× 10/100/1000 Mbps RJ45 Ports • Auto-Negotiation/Auto MDI/MDIX
- Fan Quantity: Fanless
- Installation: • Desktop • Wall Mount
Configuration and installation
Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
Related business Ethernet switches
Ordering questions
What should I include in an enquiry?
Send TL-SG208E with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.
Are accessories and support included?
Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
Browse TP-Link equipment · Network equipment · Request a matched quotation
Prepare your enquiry
Ordering and delivery
Your existing equipment
Tell us the host model, generation, installed configuration and required supporting hardware.
Delivery requirements
Specify condition, testing requirements, destination and requested delivery date.
