Model and quantity
Include the full model, manufacturer P/N, revision and quantity.
TP-Link / Ethernet Switch

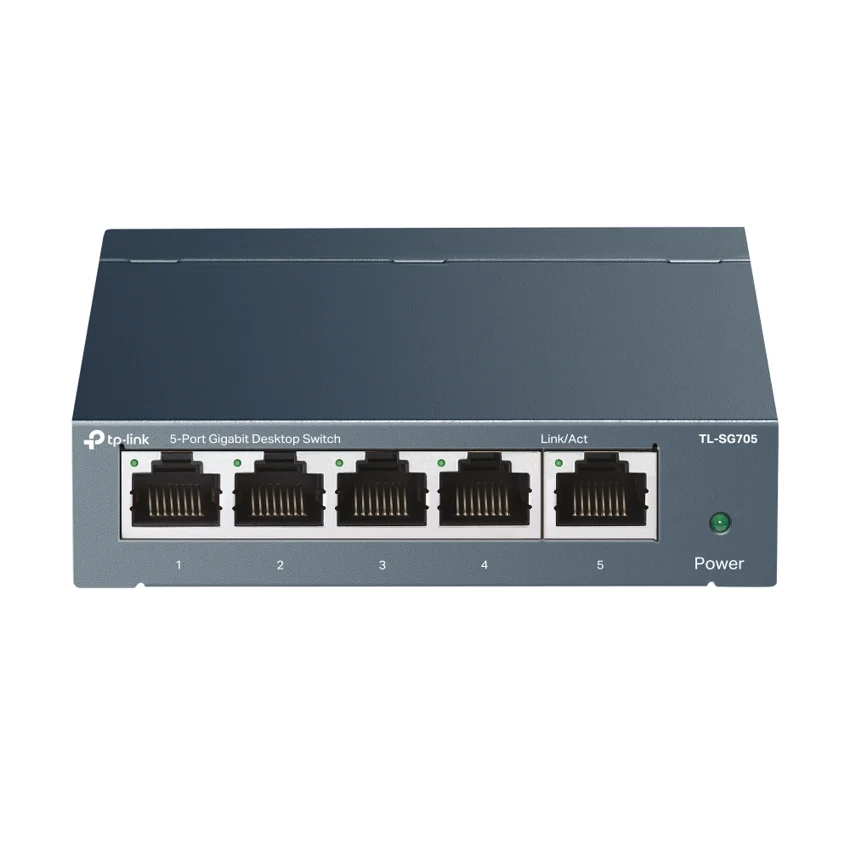

TP-Link TL-SG705
Manufacturer P/N: TL-SG705
TP-Link TL-SG705 ethernet switch. Interface: 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports; Fan Quantity: Fanless; External Power Supply: External Power Adapter (Output: 5 V DC / 0.6A). Compare configuration and request a hardware quote.
- Documented hardware version
- V1.60; match the hardware revision before ordering
- Standards and Protocols
- IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
- Interface
- 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
- Fan Quantity
- Fanless
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Network connections and supported equipment
Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.
CONNECTS TOClients, servers or access links
TL-SG705Ethernet Switch
USED FORConnected network equipment
Connection and installation requirements
- Port type, line rate, optics, reach and software license
- Peer platform support, resiliency and management design
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | TL-SG705 |
| Product family | Business ethernet switchs |
| Documented hardware version | V1.60; match the hardware revision before ordering |
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
| Interface | 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 5 V DC / 0.6A) |
| LED | • Power• Link/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) |
| Max. Power Consumption | 3.1 W (220 V/ 50 Hz) |
| Max. Heat Dissipation | 10.57 BTU/h |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16 KB |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K |
| Advanced Features | • Green Ethernet technology• 802.3X Flow Control • 802.1P/DSCP QoS • IGMP Snooping • Loop Prevention |
| Transmission Method | Store and Forward |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
PRODUCT DETAILS
Features and applications
TL-SG705 at a glance
TP-Link TL-SG705 is an ethernet switch in the Business ethernet switchs range. Use the model code when matching your deployment or replacement requirement.
- Interface: 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
- Fan Quantity: Fanless
- External Power Supply: External Power Adapter (Output: 5 V DC / 0.6A)
Configuration and installation
Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
Related business Ethernet switches
Ordering questions
What should I include in an enquiry?
Send TL-SG705 with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.
Are accessories and support included?
Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
