AI GPU Servers
Build around your workload
ASUS ESC N8-E11V. Gpu: NVIDIA HGX H100/H200, 8 x SXM GPU; Form factor: 7U rack. Ask for current pricing and help choosing the right configuration.
Tell us the configuration, quantity and destination. Your quotation will show availability, condition, warranty and delivery terms.
Start an order requestASUS / PRODUCT DETAILS
See what is installed, then compare it with the platform limits. The maximum supported configuration may be different from what ships with this unit.
KEY SPECIFICATIONS / 01
Match the processor generation, socket population and required heatsink.
ASUS / ORDER & INSTALLATION DETAILS
Identify the full ASUS server or motherboard model.
Review supported processors, memory population and expansion layout.
Confirm chassis fit, cooling, risers and required installation hardware.
Technical overview
Use the full part number when comparing options or asking about system fit.
| Gpu | NVIDIA HGX H100/H200, 8 x SXM GPU |
|---|---|
| Form factor | 7U rack |
| Manufacturer model / P/N | ESC N8-E11V |
| Processor platform | 2 x 5th Gen Intel Xeon Scalable |
| Accelerator subsystem | NVIDIA HGX H100/H200, 8 x SXM GPU |
| System memory | 32 x DDR5 DIMM; up to 2 TB platform guidance |
| Local storage | 8 x front + 2 x rear NVMe |
| Network and I/O fabric | Up to 8 GPU-direct NICs; PCIe 5.0 |
| Power architecture | 4+2 or 3+3 3000 W Titanium |
| Cooling | Air cooling; D2C liquid-cooling option by request |
| Manufacturer | ASUS |
| Model | ESC N8-E11V |
| Storage and expansion | Backplane, riser, controller and slot configuration |
| Physical integration | Cooling, power and required installation items |
| Model / P/N | ASUS ESC N8-E11V |
| Category | AI GPU Servers |
| FABRIC | Up to 8 GPU-direct NICs; PCIe 5.0 |
| THERMAL | Air cooling; D2C liquid-cooling option by request |
HOW THIS PRODUCT FITS YOUR SYSTEM
Choose how you plan to use this product.
Match the processor generation, socket population and required heatsink.
Check the installed modules, supported type and population rules.
Use this checklist to describe the change. The host system and full configuration determine which parts will fit.
YOUR QUOTE REQUEST
Add the quantity, options and installation details you want us to quote.
Confirm the exact manufacturer part number, host compatibility and included components. Optional software is quoted separately only when requested.
SUPPORT & REPLACEMENT
Check support dates, replacement options and whether continued use still makes sense.
We do not have confirmed sales and support dates for this part number.
Send us the full ESC N8-E11V order code, software release and support details before planning long-term use.
Ask us to check the current sales and support statusProducts with similar names or connectors may still be incompatible. Compare the full specifications, installed system and software requirements.
Compare related products These products may be related, but we have not confirmed them as replacements.USING HARDWARE RESPONSIBLY
Consider repairability, remaining support and actual operating demand. Extending service life is useful only when the equipment still meets your security and reliability requirements.
Use measured average input power for the same workload. PSU ratings and processor TDP are different from total system power.
Energy difference = (current W − proposed W) × hours × units ÷ 1,000. Excludes cooling, embodied emissions and purchase costs.CONNECTION DETAILS
Choose the host adapters around the workload and the storage protocol. A server NIC, Fibre Channel HBA and SAS HBA serve different connections.
Browse the categories above for related equipment, then send us the full configuration so we can check the fit.
PRODUCT DETAILS
ASUS / product documentation
Use the exact ASUS model and revision to identify the system or component scope. Confirm qualified options and supplied hardware separately from the platform reference.
| Manufacturer model / P/N | ESC N8-E11V |
|---|---|
| Form factor | 7U rack |
| Processor platform | 2 x 5th Gen Intel Xeon Scalable |
| Accelerator subsystem | NVIDIA HGX H100/H200, 8 x SXM GPU |
| System memory | 32 x DDR5 DIMM; up to 2 TB platform guidance |
| Local storage | 8 x front + 2 x rear NVMe |
| Network and I/O fabric | Up to 8 GPU-direct NICs; PCIe 5.0 |
| Power architecture | 4+2 or 3+3 3000 W Titanium |
| Cooling | Air cooling; D2C liquid-cooling option by request |
Specifications describe the manufacturer platform and remain subject to option-code, firmware, region and lifecycle validation at quotation.
Complete system model and supplied configuration
Board model and revision from the matching manual or actual hardware
Processor support, memory QVL and other applicable option lists for that platform
Server configuration
No. This page describes a configurable platform. The written quotation lists the exact accelerator, CPU, memory, storage, networking, cooling and support.
Yes. Send the base model or CTO identifier and required options. We reconcile the requested P/Ns with the final bill of materials.
Before dispatch, we can provide the allocated unit's labels, serial numbers, condition, installed options, accessories, rails and export packing details.
model product photography
02 / ARCHITECTURE
A 7U dual-socket HGX H100/H200 platform with dedicated GPU-to-NIC topology for distributed AI training.

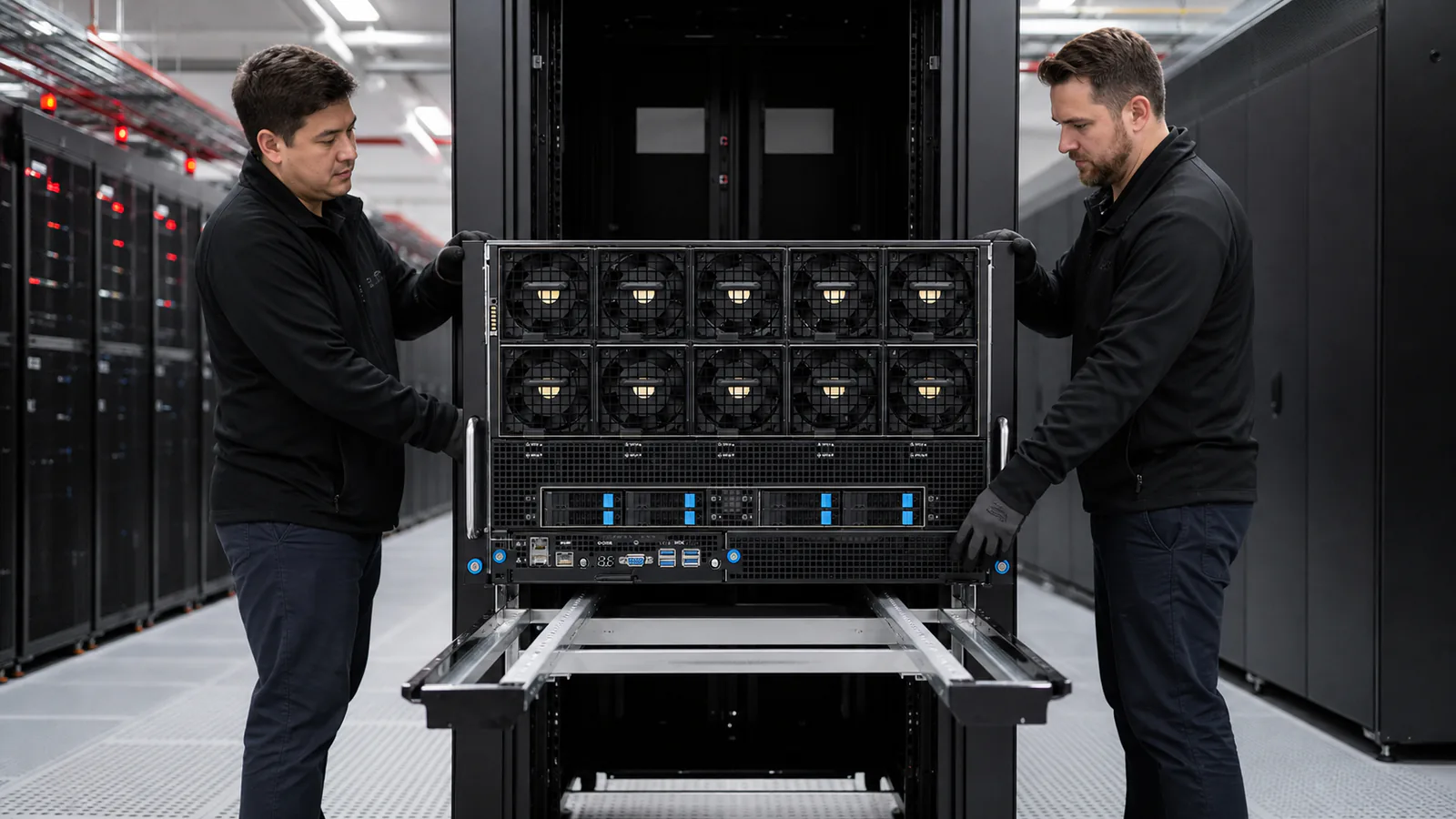

Confirm rack depth, rail type, service clearance, floor loading and a rated material lift before delivery.
Validate circuit voltage, connector type, branch capacity, redundancy policy and per-rack power budget from the final BOM.
Match air or direct-liquid cooling, facility water conditions, CDU capacity, hose routing and leak-detection requirements.
Define GPU fabric, management, storage and east-west networks separately; validate adapter, optic, cable and switch port counts.
Choose up to 3 products
Model selection & order planning
ASUS ESC N8-E11V
Before you request a quote
Include the full model, manufacturer P/N, revision and quantity.
Tell us the host model, generation, installed configuration and required supporting hardware.
Specify condition, testing requirements, destination and requested delivery date.
