GPU Platform
Build around your workload
ASUS XA NB3I-E12. Gpu: 8 x NVIDIA HGX B300 SXM6 GPUs, NVL8; Form factor: 9U air-cooled rack server. Ask for current pricing and help choosing the right configuration.
Transaction requirements
For B300 / GB300 configurations
Direct paying buyers only.
ASUS / PRODUCT DETAILS
See what is installed, then compare it with the platform limits. The maximum supported configuration may be different from what ships with this unit.
KEY SPECIFICATIONS / 01
Match the processor generation, socket population and required heatsink.
ASUS / ORDER & INSTALLATION DETAILS
Identify the full ASUS server or motherboard model.
Review supported processors, memory population and expansion layout.
Confirm chassis fit, cooling, risers and required installation hardware.
Technical overview
Use the full part number when comparing options or asking about system fit.
| Gpu | 8 x NVIDIA HGX B300 SXM6 GPUs, NVL8 |
|---|---|
| Form factor | 9U air-cooled rack server |
| Manufacturer model / P/N | XA NB3I-E12 |
| Processor platform | 2 x Intel Xeon 6 |
| Accelerator subsystem | 8 x NVIDIA HGX B300 SXM6 GPUs, NVL8 |
| System memory | DDR5 RDIMM platform; exact population by BOM |
| Local storage | Front NVMe and M.2 boot options; exact population by BOM |
| Network and I/O fabric | 8 x NVIDIA ConnectX-8 high-speed adapters + additional PCIe and onboard networking |
| Power architecture | 10 x 3,200 W 80 Plus Titanium PSUs in 5+5 redundancy |
| Cooling | Air-cooled |
| Manufacturer | ASUS |
| Model | XA NB3I-E12 |
| Storage and expansion | Backplane, riser, controller and slot configuration |
| Physical integration | Cooling, power and required installation items |
| Model / P/N | ASUS XA NB3I-E12 |
| Category | GPU Platform |
| FABRIC | 8 x NVIDIA ConnectX-8 high-speed adapters + additional PCIe and onboard networking |
| THERMAL | Air-cooled |
HOW THIS PRODUCT FITS YOUR SYSTEM
Choose how you plan to use this product.
Match the processor generation, socket population and required heatsink.
Check the installed modules, supported type and population rules.
Use this checklist to describe the change. The host system and full configuration determine which parts will fit.
YOUR QUOTE REQUEST
Add the quantity, options and installation details you want us to quote.
Confirm the exact manufacturer part number, host compatibility and included components. Optional software is quoted separately only when requested.
SUPPORT & REPLACEMENT
Check support dates, replacement options and whether continued use still makes sense.
We do not have confirmed sales and support dates for this part number.
Send us the full XA NB3I-E12 order code, software release and support details before planning long-term use.
Ask us to check the current sales and support statusProducts with similar names or connectors may still be incompatible. Compare the full specifications, installed system and software requirements.
Compare related products These products may be related, but we have not confirmed them as replacements.USING HARDWARE RESPONSIBLY
Consider repairability, remaining support and actual operating demand. Extending service life is useful only when the equipment still meets your security and reliability requirements.
Use measured average input power for the same workload. PSU ratings and processor TDP are different from total system power.
Energy difference = (current W − proposed W) × hours × units ÷ 1,000. Excludes cooling, embodied emissions and purchase costs.CONNECTION DETAILS
Choose the host adapters around the workload and the storage protocol. A server NIC, Fibre Channel HBA and SAS HBA serve different connections.
Browse the categories above for related equipment, then send us the full configuration so we can check the fit.
PRODUCT DETAILS
ASUS / product documentation
Use the exact ASUS model and revision to identify the system or component scope. Confirm qualified options and supplied hardware separately from the platform reference.
| Manufacturer model / P/N | XA NB3I-E12 |
|---|---|
| Form factor | 9U air-cooled rack server |
| Processor platform | 2 x Intel Xeon 6 |
| Accelerator subsystem | 8 x NVIDIA HGX B300 SXM6 GPUs, NVL8 |
| System memory | DDR5 RDIMM platform; exact population by BOM |
| Local storage | Front NVMe and M.2 boot options; exact population by BOM |
| Network and I/O fabric | 8 x NVIDIA ConnectX-8 high-speed adapters + additional PCIe and onboard networking |
| Power architecture | 10 x 3,200 W 80 Plus Titanium PSUs in 5+5 redundancy |
| Cooling | Air-cooled |
Confirm option codes, firmware, region, lifecycle and the supplied configuration with your quotation. Transactions follow the direct-buyer and in-person meeting policy above.
Complete system model and supplied configuration
Board model and revision from the matching manual or actual hardware
Processor support, memory QVL and other applicable option lists for that platform
Server configuration
Yes. This page identifies the complete named system. B200/B300 alone identifies a GPU; HGX identifies the integrated eight-GPU platform.
No. The written quotation lists the GPU generation, CPU, memory, storage, fabric, cooling, power and support.
These systems require configuration, regional power, cooling, support and delivery validation. A low generic catalog price would be misleading.

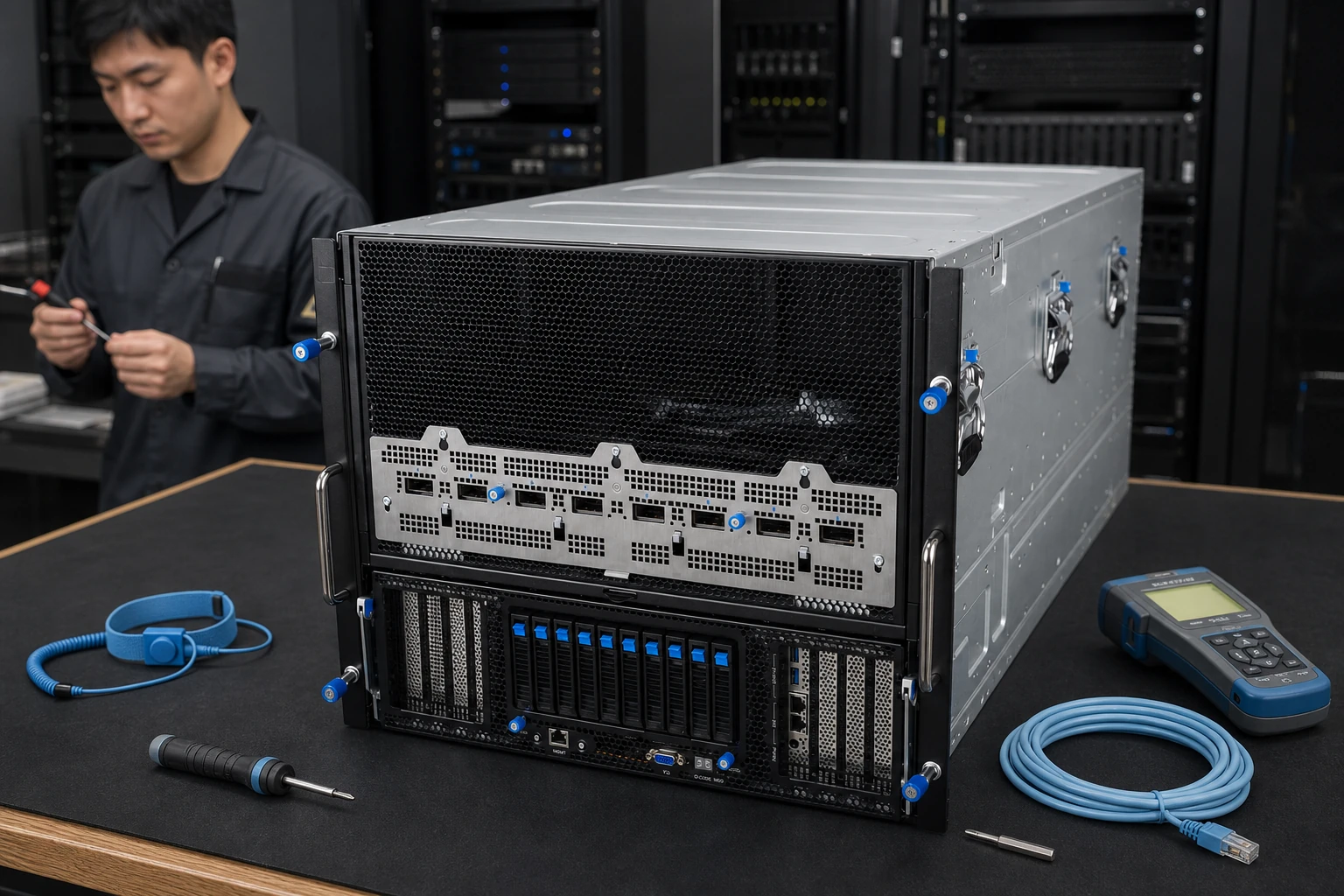

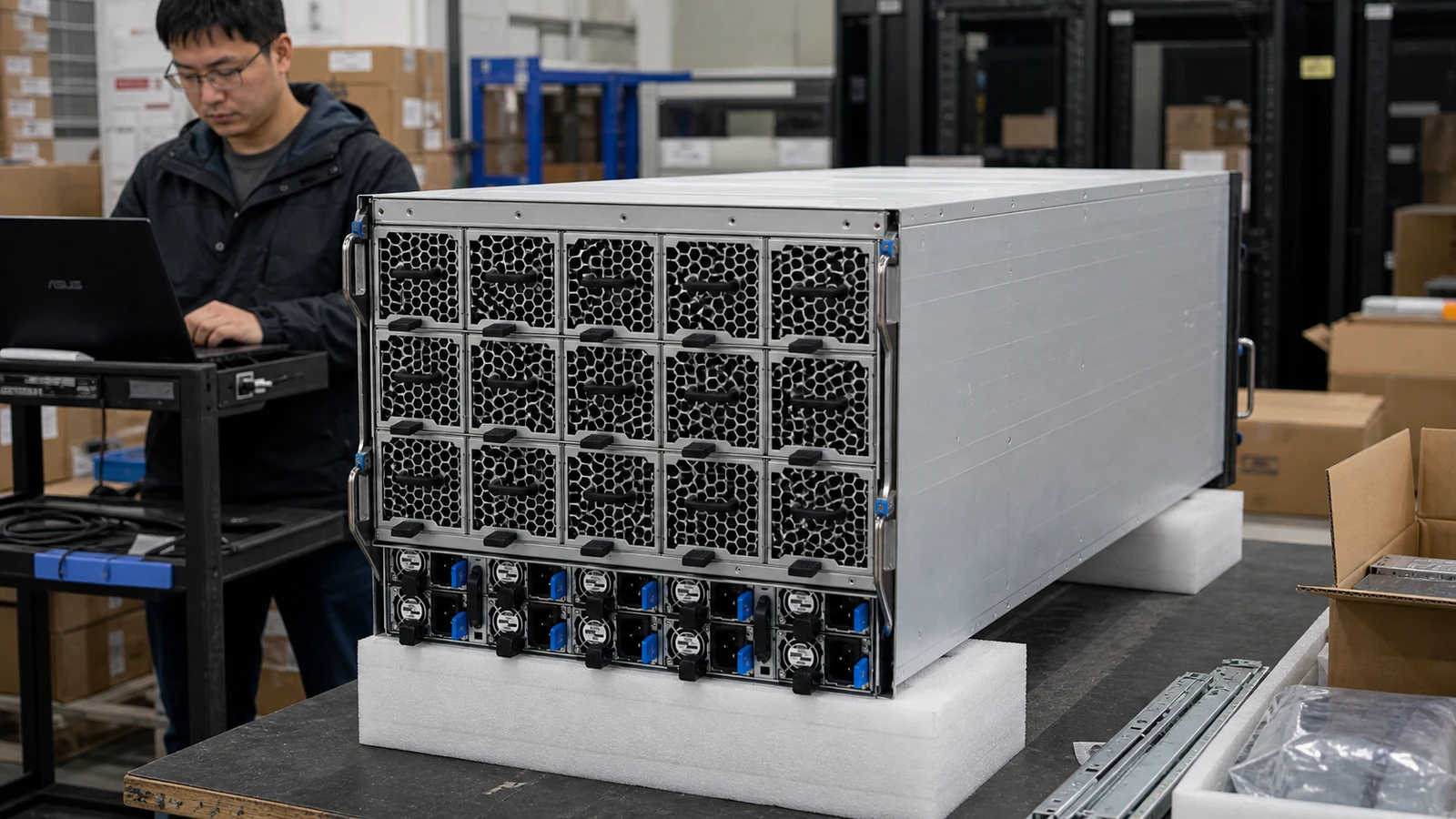

model receiving and deployment photography
02 / ARCHITECTURE
A 9U air-cooled ASUS AI server with eight NVIDIA HGX B300 GPUs and ConnectX-8 fabric.
NVIDIA SXM accelerator modules. These names alone do not identify a complete server.
An eight-GPU NVL8 baseboard/platform integrated into a named NVIDIA or OEM system.
The complete named system on this page, with its own chassis, CPU, cooling, power and orderable configuration.
An unrelated Cisco blade-server model. It is not an NVIDIA B200 GPU system.
Confirm rack width/depth, rail type, service clearance, floor loading and a rated material lift.
Validate voltage, connectors, branch capacity, redundancy and sustained/peak rack power from the final BOM.
Match air or liquid cooling, CDU and facility-water requirements, hose routing and leak detection.
Validate GPU fabric, management, storage, optics, cable topology and switch-port counts separately.
Model selection & order planning
ASUS XA NB3I-E12
Prepare for your office visit
Bring the full model, required configuration and delivery requirements to the office meeting.
Proof of funds and an in-person meeting are required. No brokers or intermediaries.
No futures. No preorder deposits. Email and phone price enquiries are not answered.
