AI GPU Servers
Build around your workload
Dell PowerEdge XE7740. Gpu: Up to 8 x PCIe Gen5 x16 dual-width GPUs, up to 600 W; Form factor: 4U rack. Ask for current pricing and help choosing the right configuration.
Tell us the configuration, quantity and destination. Your quotation will show availability, condition, warranty and delivery terms.
Start an order requestDell / PRODUCT DETAILS
See what is installed, then compare it with the platform limits. The maximum supported configuration may be different from what ships with this unit.
KEY SPECIFICATIONS / 01
Match the processor generation, socket population and required heatsink.
Dell / ORDER & INSTALLATION DETAILS
Include the host model and Service Tag where available.
Match the Dell part or assembly number to the offered item.
Confirm carriers, cables and OEM firmware for the installed platform.
Technical overview
Use the full part number when comparing options or asking about system fit.
| Gpu | Up to 8 x PCIe Gen5 x16 dual-width GPUs, up to 600 W |
|---|---|
| Form factor | 4U rack |
| Manufacturer model / P/N | PowerEdge XE7740 |
| Processor platform | 2 x Intel Xeon 6, up to 86 cores each |
| Accelerator subsystem | Up to 8 x PCIe Gen5 x16 dual-width GPUs, up to 600 W |
| System memory | 32 x DDR5 RDIMM; up to 4 TB; up to 6400 MT/s |
| Local storage | Up to 8 x E3.S Gen5 NVMe; up to 122.88 TB |
| Network and I/O fabric | OCP 3.0 plus PCIe Gen5 expansion |
| Power architecture | 3200 W Titanium; redundant AC/DC options |
| Cooling | Air cooled, high-performance fan modules |
| Manufacturer | Dell |
| Model | PowerEdge XE7740 |
| Model / P/N | Dell PowerEdge XE7740 |
| Category | AI GPU Servers |
| FABRIC | OCP 3.0 plus PCIe Gen5 expansion |
| THERMAL | Air cooled, high-performance fan modules |
HOW THIS PRODUCT FITS YOUR SYSTEM
Choose how you plan to use this product.
Match the processor generation, socket population and required heatsink.
Check the installed modules, supported type and population rules.
Use this checklist to describe the change. The host system and full configuration determine which parts will fit.
YOUR QUOTE REQUEST
Add the quantity, options and installation details you want us to quote.
Confirm the exact manufacturer part number, host compatibility and included components. Optional software is quoted separately only when requested.
SUPPORT & REPLACEMENT
Check support dates, replacement options and whether continued use still makes sense.
We do not have confirmed sales and support dates for this part number.
Send us the full PowerEdge XE7740 order code, software release and support details before planning long-term use.
Ask us to check the current sales and support statusProducts with similar names or connectors may still be incompatible. Compare the full specifications, installed system and software requirements.
Compare related products These products may be related, but we have not confirmed them as replacements.USING HARDWARE RESPONSIBLY
Consider repairability, remaining support and actual operating demand. Extending service life is useful only when the equipment still meets your security and reliability requirements.
Use measured average input power for the same workload. PSU ratings and processor TDP are different from total system power.
Energy difference = (current W − proposed W) × hours × units ÷ 1,000. Excludes cooling, embodied emissions and purchase costs.CONNECTION DETAILS
Choose the host adapters around the workload and the storage protocol. A server NIC, Fibre Channel HBA and SAS HBA serve different connections.
Browse the categories above for related equipment, then send us the full configuration so we can check the fit.
PRODUCT DETAILS
| Manufacturer model / P/N | PowerEdge XE7740 |
|---|---|
| Form factor | 4U rack |
| Processor platform | 2 x Intel Xeon 6, up to 86 cores each |
| Accelerator subsystem | Up to 8 x PCIe Gen5 x16 dual-width GPUs, up to 600 W |
| System memory | 32 x DDR5 RDIMM; up to 4 TB; up to 6400 MT/s |
| Local storage | Up to 8 x E3.S Gen5 NVMe; up to 122.88 TB |
| Network and I/O fabric | OCP 3.0 plus PCIe Gen5 expansion |
| Power architecture | 3200 W Titanium; redundant AC/DC options |
| Cooling | Air cooled, high-performance fan modules |
Specifications describe the manufacturer platform and remain subject to option-code, firmware, region and lifecycle validation at quotation.
Server configuration

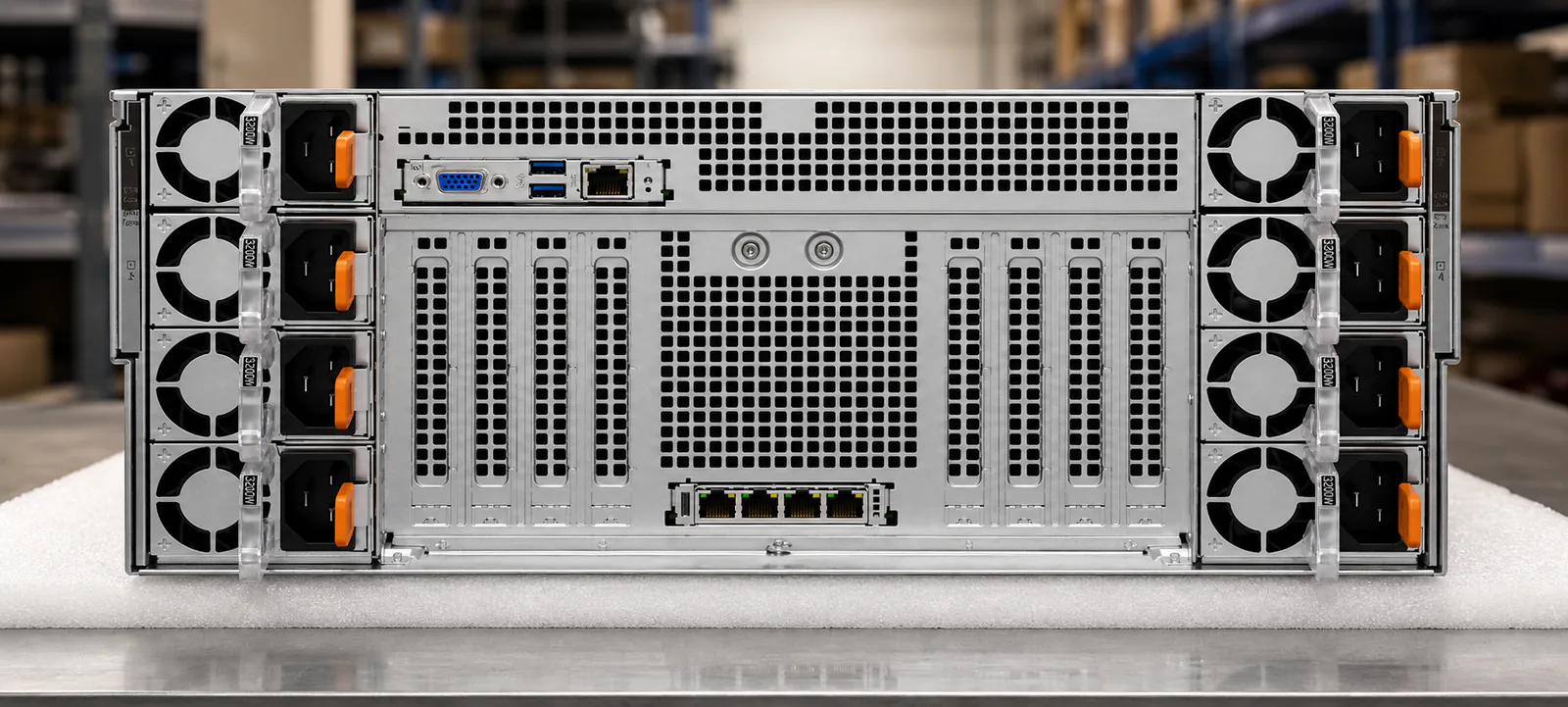

model product photography
02 / ARCHITECTURE
A flexible air-cooled 4U PCIe GPU server for enterprise inference, fine-tuning and accelerated analytics.
Confirm rack depth, rail type, service clearance, floor loading and a rated material lift before delivery.
Validate circuit voltage, connector type, branch capacity, redundancy policy and per-rack power budget from the final BOM.
Match air or direct-liquid cooling, facility water conditions, CDU capacity, hose routing and leak-detection requirements.
Define GPU fabric, management, storage and east-west networks separately; validate adapter, optic, cable and switch port counts.
Choose up to 3 products
No. This page describes a configurable platform. The written quotation lists the exact accelerator, CPU, memory, storage, networking, cooling and support.
Yes. Send the base model or CTO identifier and required options. We reconcile the requested P/Ns with the final bill of materials.
Before dispatch, we can provide the allocated unit's labels, serial numbers, condition, installed options, accessories, rails and export packing details.
Model selection & order planning
Dell PowerEdge XE7740
Explore more products below. Please confirm compatibility before selecting a replacement.
Before you request a quote
Include the full model, manufacturer P/N, revision and quantity.
Tell us the host model, generation, installed configuration and required supporting hardware.
Specify condition, testing requirements, destination and requested delivery date.
