Build around your workload
GIGABYTE G894-SD3-AAX7. Gpu: NVIDIA HGX B300, 8 x SXM GPU; Form factor: 8U rack. Ask for current pricing and help choosing the right configuration.
Transaction requirements
For B300 / GB300 configurations
Direct paying buyers only.
GIGABYTE / PRODUCT DETAILS
See what is installed, then compare it with the platform limits. The maximum supported configuration may be different from what ships with this unit.
KEY SPECIFICATIONS / 01
Confirm drive carriers, backplane, controller and any required cables.
GIGABYTE / ORDER & INSTALLATION DETAILS
Record the full GIGABYTE system model and revision.
Match the motherboard, risers and storage backplane for that revision.
Check GPU fit, cooling and original power cabling where applicable.
Technical overview
Use the full part number when comparing options or asking about system fit.
| Gpu | NVIDIA HGX B300, 8 x SXM GPU |
|---|---|
| Form factor | 8U rack |
| Manufacturer model / P/N | 6NG894SD3DR000AAX7* |
| Processor platform | 2 x Intel Xeon 6700/6500 series |
| Accelerator subsystem | NVIDIA HGX B300, 8 x SXM GPU |
| System memory | 32 x DDR5 RDIMM/MRDIMM; up to 8000 MT/s MRDIMM |
| Local storage | 8 x 2.5-inch Gen5 NVMe + 2 x M.2 |
| Network and I/O fabric | 8 x 800Gb/s OSFP XDR or dual 400GbE via ConnectX-8 |
| Power architecture | 12 x 3000 W Titanium |
| Cooling | Air cooled with dedicated CPU, OSFP, PCIe and GPU fan zones |
| Manufacturer | GIGABYTE |
| Model | G894-SD3-AAX7 |
| Manufacturer P/N | G894-SD3-AAX7 |
| System board | Matching manual and board reference |
| Expansion path | Riser, slots, networking and storage topology |
| Model / P/N | GIGABYTE G894-SD3-AAX7 |
| Category | AI GPU Servers |
| FABRIC | 8 x 800Gb/s OSFP XDR or dual 400GbE via ConnectX-8 |
| THERMAL | Air cooled with dedicated CPU, OSFP, PCIe and GPU fan zones |
HOW THIS PRODUCT FITS YOUR SYSTEM
Choose how you plan to use this product.
Match the processor generation, socket population and required heatsink.
Check the installed modules, supported type and population rules.
Use this checklist to describe the change. The host system and full configuration determine which parts will fit.
YOUR QUOTE REQUEST
Add the quantity, options and installation details you want us to quote.
Confirm the exact manufacturer part number, host compatibility and included components. Optional software is quoted separately only when requested.
SUPPORT & REPLACEMENT
Check support dates, replacement options and whether continued use still makes sense.
We do not have confirmed sales and support dates for this part number.
Send us the full G894-SD3-AAX7 order code, software release and support details before planning long-term use.
Ask us to check the current sales and support statusProducts with similar names or connectors may still be incompatible. Compare the full specifications, installed system and software requirements.
Compare related products These products may be related, but we have not confirmed them as replacements.USING HARDWARE RESPONSIBLY
Consider repairability, remaining support and actual operating demand. Extending service life is useful only when the equipment still meets your security and reliability requirements.
Use measured average input power for the same workload. PSU ratings and processor TDP are different from total system power.
Energy difference = (current W − proposed W) × hours × units ÷ 1,000. Excludes cooling, embodied emissions and purchase costs.CONNECTION DETAILS
Choose the host adapters around the workload and the storage protocol. A server NIC, Fibre Channel HBA and SAS HBA serve different connections.
Browse the categories above for related equipment, then send us the full configuration so we can check the fit.
PRODUCT DETAILS
GIGABYTE / product documentation
Use the complete GIGABYTE product reference and its revision. Match component and host requirements only through the applicable qualified-component records.
| Manufacturer model / P/N | 6NG894SD3DR000AAX7* |
|---|---|
| Form factor | 8U rack |
| Processor platform | 2 x Intel Xeon 6700/6500 series |
| Accelerator subsystem | NVIDIA HGX B300, 8 x SXM GPU |
| System memory | 32 x DDR5 RDIMM/MRDIMM; up to 8000 MT/s MRDIMM |
| Local storage | 8 x 2.5-inch Gen5 NVMe + 2 x M.2 |
| Network and I/O fabric | 8 x 800Gb/s OSFP XDR or dual 400GbE via ConnectX-8 |
| Power architecture | 12 x 3000 W Titanium |
| Cooling | Air cooled with dedicated CPU, OSFP, PCIe and GPU fan zones |
Specifications describe the manufacturer platform and remain subject to option-code, firmware, region and lifecycle validation at quotation.
STAR NETWORKING / configuration check
model product photography
02 / ARCHITECTURE
An HGX B300 system with eight onboard ConnectX-8 OSFP fabric ports for tightly coupled scale-out training.

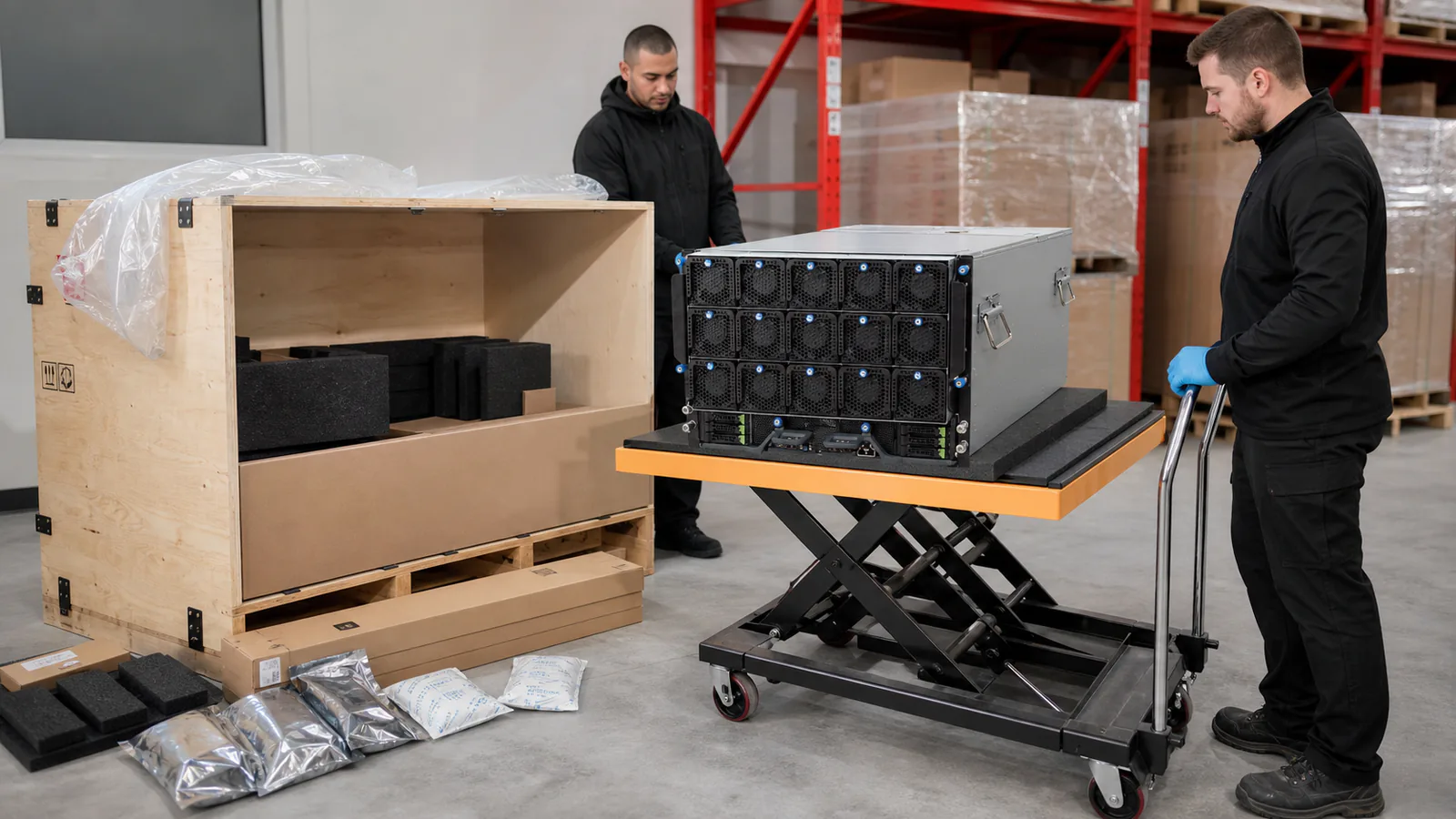

Confirm rack depth, rail type, service clearance, floor loading and a rated material lift before delivery.
Validate circuit voltage, connector type, branch capacity, redundancy policy and per-rack power budget from the final BOM.
Match air or direct-liquid cooling, facility water conditions, CDU capacity, hose routing and leak-detection requirements.
Define GPU fabric, management, storage and east-west networks separately; validate adapter, optic, cable and switch port counts.
Model selection & order planning
GIGABYTE G894-SD3-AAX7
Explore more products below. Please confirm compatibility before selecting a replacement.
Prepare for your office visit
Bring the full model, required configuration and delivery requirements to the office meeting.
Proof of funds and an in-person meeting are required. No brokers or intermediaries.
No futures. No preorder deposits. Email and phone price enquiries are not answered.
