Storage Array

Storage platform

HPE MSA 2060 12Gb SAS Storage — inspection setting 2 — Illustrative product photography

Image 1 of 9

Use the full model, manufacturer part number and revision. Your quotation will list the condition and included components.

Plan storage around the controller platform

HPE MSA 2060 12Gb SAS Storage

Model MSA 2060 12Gb SAS

HPE MSA 2060 12Gb SAS Storage. Storage Array. Ask for current pricing and help choosing the right configuration.

Product class: Dual-controller storage array
Host connectivity: 12Gb SAS
Base chassis: 2U; 12 LFF or 24 SFF bays, depending on model

Request pricingQuoted to your requirements

Tell us the configuration, quantity and destination. Your quotation will show availability, condition, warranty and delivery terms.

Configuration helpAsk about international delivery

HPE / HARDWARE DETAILS

MSA 2060: chassis & component views

Inspect connectors, component locations and chassis variants. Select a view and open the image to read the labels.

1 view

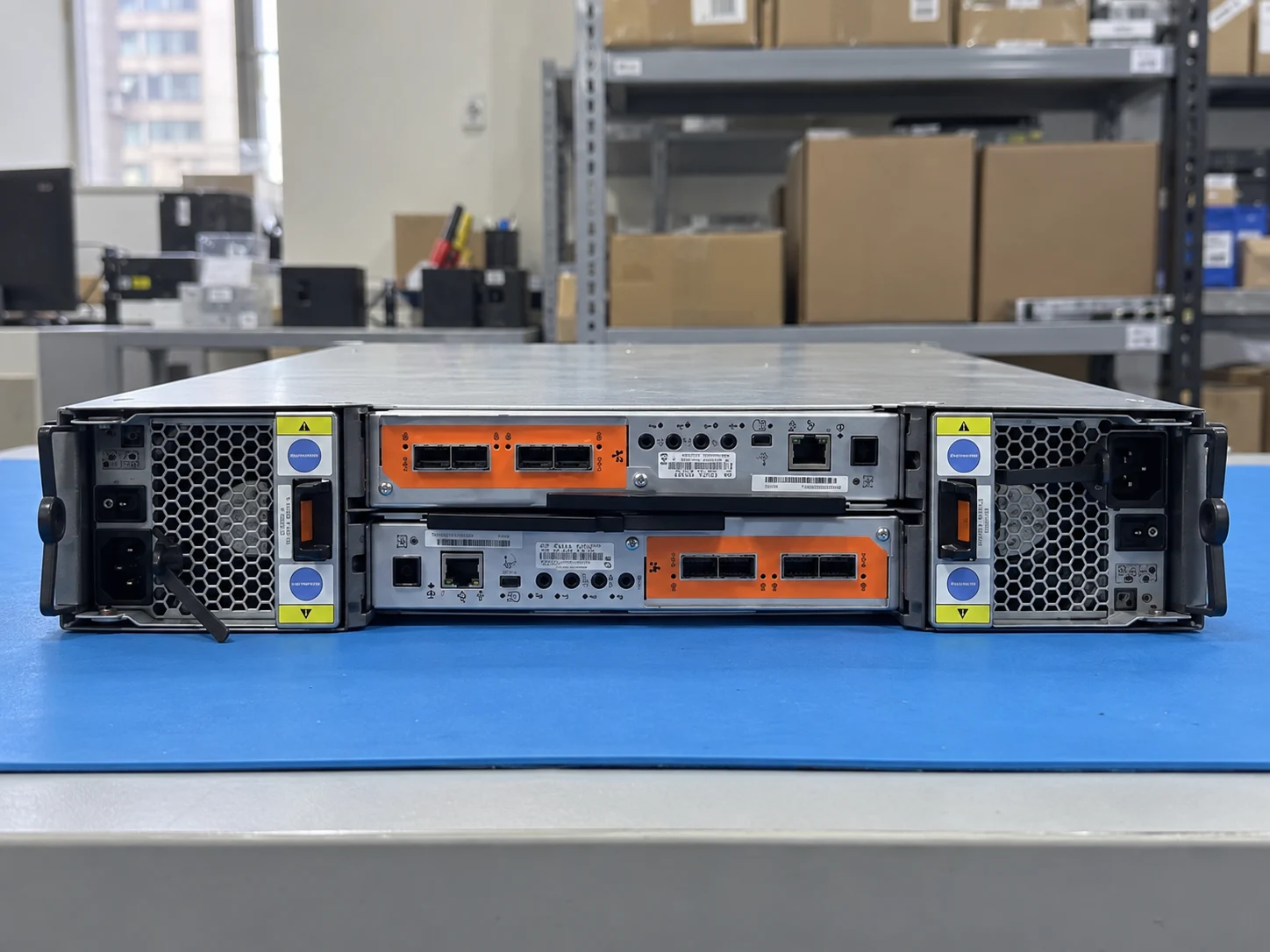

HPE MSA 2060 — Front and controller connections — Front and controller connections. Product illustration; optional components and installed configuration vary.Open full-size diagram ↗

Product illustrations show the platform and the configuration named in each view. Optional drives, memory, risers, power supplies and cooling parts shown are not automatically included with this part number. Refer to the configuration table and quotation for supplied components.

HPE / PRODUCT DETAILS

The storage platform, layer by layer

Keep the supplied controller platform intact. Plan capacity, host connectivity and data services around qualified original options.

MSA 2060 12Gb SAS

Host connectivity: 12Gb SAS

Match host ports, multipathing and the supported protocol.

Tell us which system or service this product is for. We do not have details for this section yet.

These specifications describe the storage platform. Server CPU and DIMM options are handled separately.

Tell us which system or service this product is for. We do not have details for this section yet.

Specify qualified drives, firmware, carriers and supported expansion enclosures.

Tell us which system or service this product is for. We do not have details for this section yet.

Confirm data-service entitlements and the protection design.

Host access

Match host ports, multipathing and the supported protocol.

View all specifications →

HPE / ORDER & INSTALLATION DETAILS

HPE option, spare and system identity

MSA 2060 12Gb SAS

Keep the system SKU, option P/N and spare P/N distinct.

Check the chassis generation and original HPE installation kits.

Separate factory hardware, optional management software and support.

Tell us about your existing equipment

Parent system / controller generationInstalled storage software and mediaRequired original expansion or data services

View your request ↓

Technical overview

Technical specifications

Use the full part number when comparing options or asking about system fit.

7 of 7 specifications

MSA 2060 12Gb SAS · All specifications
Manufacturer	HPE
Model	MSA 2060 12Gb SAS
Product model	MSA 2060 12Gb SAS
Product class	Dual-controller storage array
Host connectivity	12Gb SAS
Base chassis	2U; 12 LFF or 24 SFF bays, depending on model
Ordering references	R0Q77B: LFF; R0Q78B: SFF. Exact offered revision must be confirmed.

HOW THIS PRODUCT FITS YOUR SYSTEM

See where it fits in your system

Choose how you plan to use this product.

Shared storage

Qualified drives and supported firmware

Match host ports, multipathing and the supported protocol.

Qualified drives and supported firmware
Host protocols and expansion limits
Capacity, data services and entitlements

Add notes to your request

Shared storageMSA 2060 12Gb SAS

These specifications describe the storage platform. Server CPU and DIMM options are handled separately.

Use this checklist to describe the change. The host system and full configuration determine which parts will fit.

YOUR QUOTE REQUEST

Tell us what you need

Add the quantity, options and installation details you want us to quote.

Confirm the exact manufacturer part number, host compatibility and included components. Optional software is quoted separately only when requested.

QuantityRequested configuration

Host system and installation details

SUPPORT & REPLACEMENT

Plan for support and future replacement

Check support dates, replacement options and whether continued use still makes sense.

Support dates

We do not have confirmed sales and support dates for this part number.

Send us the full MSA 2060 12Gb SAS order code, software release and support details before planning long-term use.

Ask us to check the current sales and support status

Choosing a replacement

Products with similar names or connectors may still be incompatible. Compare the full specifications, installed system and software requirements.

Compare related products These products may be related, but we have not confirmed them as replacements.

What should I compare?

Physical fit, connectors and power
Capacity and required performance
Software, firmware and feature support
Licensing, service coverage and data and configuration migration

USING HARDWARE RESPONSIBLY

Maintain, redeploy or replace

Consider repairability, remaining support and actual operating demand. Extending service life is useful only when the equipment still meets your security and reliability requirements.

MaintainCheck parts, firmware and service options.

RedeployMatch a suitable role and securely erase any retained data.

Retire responsiblyUse documented data removal and an appropriate electronics recycler.

Compare operating energy

Use measured average input power for the same workload. PSU ratings and processor TDP are different from total system power.

Current equipment · WProposed equipment · WHours per yearNumber of units

Enter valid measurements to compareEnergy difference = (current W − proposed W) × hours × units ÷ 1,000. Excludes cooling, embodied emissions and purchase costs.

HPE ORIGINAL OPTIONS

HPE drives, expansion & software

MSA 2060

26 HPE option P/Ns

Keep the supplied controller platform.

Choose the original drive, shelf and software part numbers you need. Controller processors and memory are not general-purpose server options. Send us the full system configuration and we will check which options fit. This list is not a complete bill of materials.

Find an HPE optionDrive form factor

26 matching HPE P/Ns. Drive-format filters do not change or add bays to your system.

HPE option part numbers for MSA 2060
Request	HPE P/N	Option and installation notes
	C8R24BNetwork & fabric	HPE MSA 16Gb Short Wave Fibre Channel SFP+ 4-pack Transceiver Installation notes Match the array generation, controller host interface and enclosure connection. FC and iSCSI transceivers cannot be substituted; SAS host models do not use these SFPs.
	C8R25BNetwork & fabric	HPE MSA 10Gb Short Range iSCSI SFP+ 4-pack Transceiver Installation notes Match the array generation, controller host interface and enclosure connection. FC and iSCSI transceivers cannot be substituted; SAS host models do not use these SFPs.
	S0K91ANetwork & fabric	HPE MSA 25Gb SFP28 Short Range 4-pack iSCSI Transceiver Installation notes Match the array generation, controller host interface and enclosure connection. FC and iSCSI transceivers cannot be substituted; SAS host models do not use these SFPs.
	R0Q54ADrives	HPE MSA 600GB SAS 12G Enterprise 10K SFF (2.5in) M2 3yr Wty HDD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Do not add non-encrypting drives to an encrypted array. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	R0Q55ADrives	HPE MSA 1.2TB SAS 12G Enterprise 10K SFF (2.5in) M2 3yr Wty HDD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Do not add non-encrypting drives to an encrypted array. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	R0Q56ADrives	HPE MSA 1.8TB SAS 12G Enterprise 10K SFF (2.5in) M2 3yr Wty HDD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Do not add non-encrypting drives to an encrypted array. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	R0Q57ADrives	HPE MSA 2.4TB SAS 12G Enterprise 10K SFF (2.5in) M2 3yr Wty HDD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Do not add non-encrypting drives to an encrypted array. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	R0Q59ADrives	HPE MSA 8TB SAS 12G Midline 7.2K LFF (3.5in) M2 1yr Wty HDD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Do not add non-encrypting drives to an encrypted array. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	R0Q61ADrives	HPE MSA 12TB SAS 12G Midline 7.2K LFF (3.5in) M2 1yr Wty HDD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Do not add non-encrypting drives to an encrypted array. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	R3U72ADrives	HPE MSA 16TB SAS 12G Midline 7.2K LFF (3.5in) M2 1yr Wty HDD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Do not add non-encrypting drives to an encrypted array. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	S0F32ADrives	HPE MSA 20TB SAS 12G Midline 7.2K LFF M2 1-year Warranty HDD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Do not add non-encrypting drives to an encrypted array. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	S3P38ADrives	HPE MSA 24TB SAS 12G Midline 7.2K LFF M2 1-year Warranty HDD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Do not add non-encrypting drives to an encrypted array. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	R0Q46ADrives	HPE MSA 960GB SAS 12G Read Intensive SFF (2.5in) M2 3yr Wty SSD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Do not add non-encrypting drives to an encrypted array. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	R0Q47ADrives	HPE MSA 1.92TB SAS 12G Read Intensive SFF (2.5in) M2 3yr Wty SSD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Do not add non-encrypting drives to an encrypted array. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	R3R30ADrives	HPE MSA 3.84TB SAS 12G Read Intensive SFF (2.5in) M2 3yr Wty SSD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Do not add non-encrypting drives to an encrypted array. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	S0F31ADrives	HPE MSA 7.68TB SAS 12G Read Intensive SFF (2.5in) M2 3-year Warranty SSD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Do not add non-encrypting drives to an encrypted array. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	R0Q49ADrives	HPE MSA 1.92TB SAS 12G Read Intensive LFF (3.5in) M2 3yr Wty SSD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Do not add non-encrypting drives to an encrypted array. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	S4M81ADrives	HPE MSA 1.92TB SAS 12G Read Intensive SFF (2.5in) M2 3 -year Warranty FIPS Encrypted SSD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Encryption requires an all-SED drive configuration. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	S4M82ADrives	HPE MSA 1.92TB SAS 12G Read Intensive LFF (3.5in) M2 3 -year Warranty FIPS Encrypted SSD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Encryption requires an all-SED drive configuration. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.
	S4M83ADrives	HPE MSA 3.84TB SAS 12G Read Intensive SFF (2.5in) M2 3-year Warranty FIPS Encrypted SSD Installation notes Use the matching MSA generation and drive carrier. Select the actual SFF or LFF bay; expansion-shelf bays are separate. Encryption requires an all-SED drive configuration. SSD/HDD performance tiering needs Advanced Data Services; SSD-only and SSD read cache do not.

Your HPE parts request

Only the selected HPE part numbers are included. We will check quantities, required kits, slot limits and compatibility before quoting.

Installed hardware or additional HPE P/Ns

Ask us to check HPE options

Factory-configured storage

Drives, expansion shelves and licenses

Factory-supplied hardware

This platform uses its manufacturer-specified hardware configuration. Choose qualified drives, supported expansion and software for the exact model and release; processor and memory choices are not presented as generic server options.

Original HDDs & SSDs

Match the full manufacturer P/N, carrier, interface and supported firmware.

Browse original SSDs ↗

Browse original HDDs ↗

Expansion & connection

Review supported shelves, enclosure I/O modules, rails and cables.

Browse expansion hardware ↗

Software & licenses

Confirm installed entitlements, required features and support terms.

Browse licenses & support ↗

Common options for this storage system

Check your installed system and existing entitlements before ordering. Each item is quoted separately.

Expansion

MSA 2060 12-bay LFF expansion enclosure

R0Q39B ↗

Expansion shelf only. Confirm I/O modules, SAS cables and supported enclosure count.

Expansion

MSA 2060 24-bay SFF expansion enclosure

R0Q40B ↗

Expansion shelf only. Confirm I/O modules, SAS cables and supported enclosure count.

Software

CONNECTION DETAILS

Storage connections and expansion options

The storage system uses its factory-supplied controllers. The ordered host interface determines whether the system connects through Ethernet, Fibre Channel or direct SAS.

CONNECTS TOServers or network clients

MSA 2060 12Gb SASStorage Array

USED FORVolumes, shares & protection

What to check before installation

Exact host-interface variant and supported host OS
Qualified drives, expansion shelves and software entitlements

Storage connection examples ↗Storage networking ↗

Browse the categories above for related equipment, then send us the full configuration so we can check the fit.

PRODUCT DETAILS

Features and applications

STORAGE / MANUFACTURER ORDER CODES

Start with the exact part number. — HPE MSA 2060 with 12Gb SAS host connectivity is a dual-controller shared-storage array. Choose the LFF or SFF base model and specify media, expansion and data-service requirements separately..

HPE / 6 ORDER CODES

MSA 2060

Choose the actual FC, optical iSCSI, copper iSCSI or SAS order code. Standard bases, flash bundles, TAA models and Smart Choice bundles are separate products.

Manufacturer P/N	Controller / chassis	Factory scope	Order record
R0Q77BHPE MSA 2060	12Gb SAS2U / LFF	2 controllers; 2 AC PSUs; rack kitBase system; drives and optical transceivers are separate. B suffix identifies the revised power-supply version.	Base arrayManufacturer ordering referenceEnquire →
R0Q78BHPE MSA 2060	12Gb SAS2U / SFF	2 controllers; 2 AC PSUs; rack kitBase system; drives and optical transceivers are separate. B suffix identifies the revised power-supply version.	Base arrayManufacturer ordering referenceEnquire →
P79249-B25HPE MSA 2060	12Gb SAS2U / SFF	2 × 4-port controllers; 12 × 2.4TB HDD; SAS versionFactory bundle; preserve the complete -B25 ordering suffix.	Smart Choice bundleManufacturer ordering referenceEnquire →
P84175-B25HPE MSA 2060	12Gb SAS2U / LFF	2 × 4-port controllers; 7 × 8TB HDD; SAS versionFactory bundle; preserve the complete -B25 ordering suffix.	Smart Choice bundleManufacturer ordering referenceEnquire →
P89063-B25HPE MSA 2060	12Gb SAS2U / LFF	2 × 4-port controllers; 2 AC PSUs; rack kitDrives and transceivers are not included.	Smart Choice baseManufacturer ordering referenceEnquire →
P89064-B25HPE MSA 2060	12Gb SAS2U / SFF	2 × 4-port controllers; 2 AC PSUs; rack kitDrives and transceivers are not included.	Smart Choice baseManufacturer ordering referenceEnquire →

Model selection & order planning

Order review: HPE MSA 2060 12Gb SAS Storage

HPE MSA 2060 12Gb SAS Storage

Start with HPE MSA 2060 12Gb SAS Storage and confirm the supplied system, supported drives, host connections and software entitlements.
Confirm the intended rack or chassis arrangement, power supply and cooling environment.
Separate chassis hardware, installed options, software and support into quotation line items.

Explore HPE storage array options

Explore more products below. Please confirm compatibility before selecting a replacement.

Before you request a quote

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
