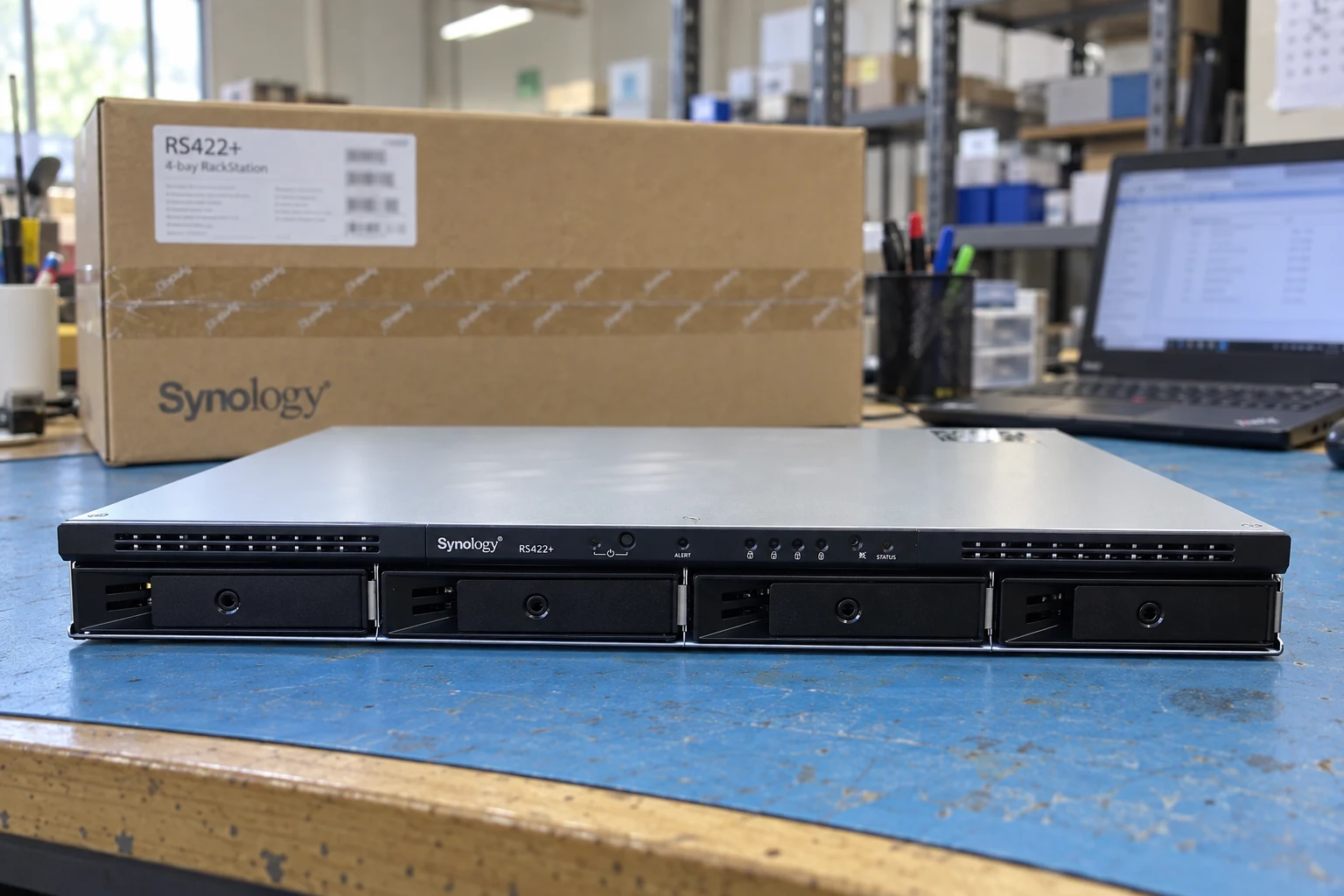

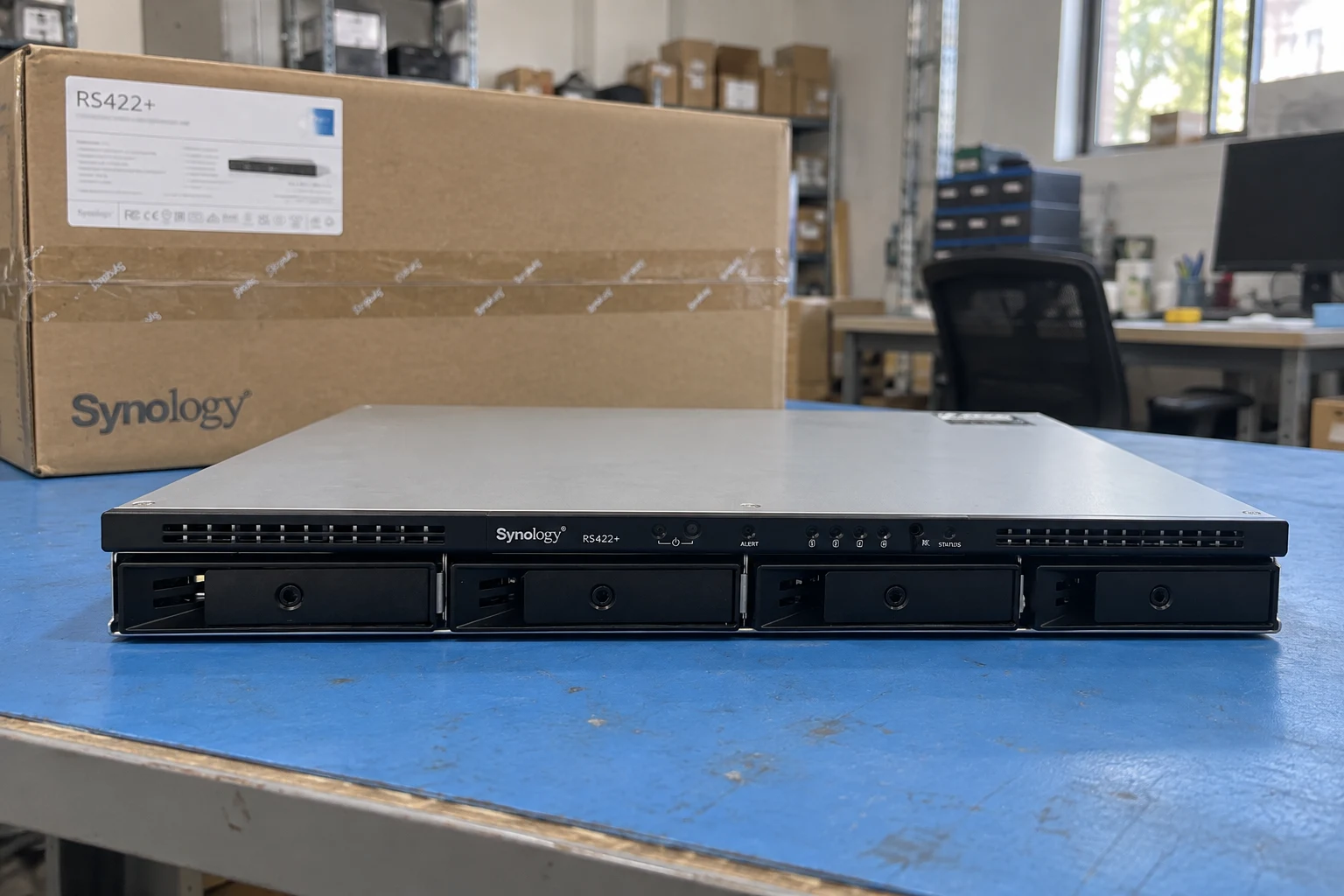

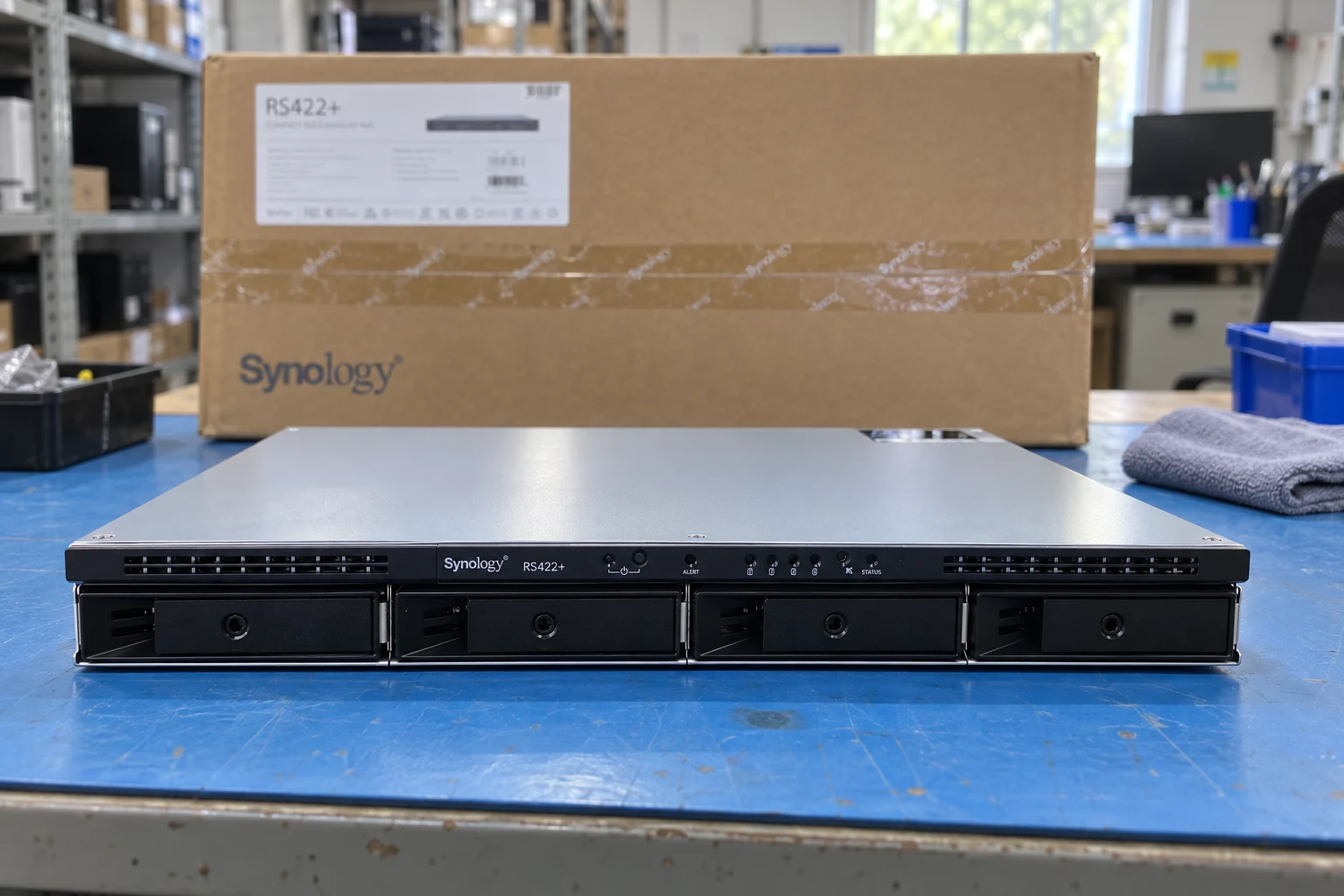

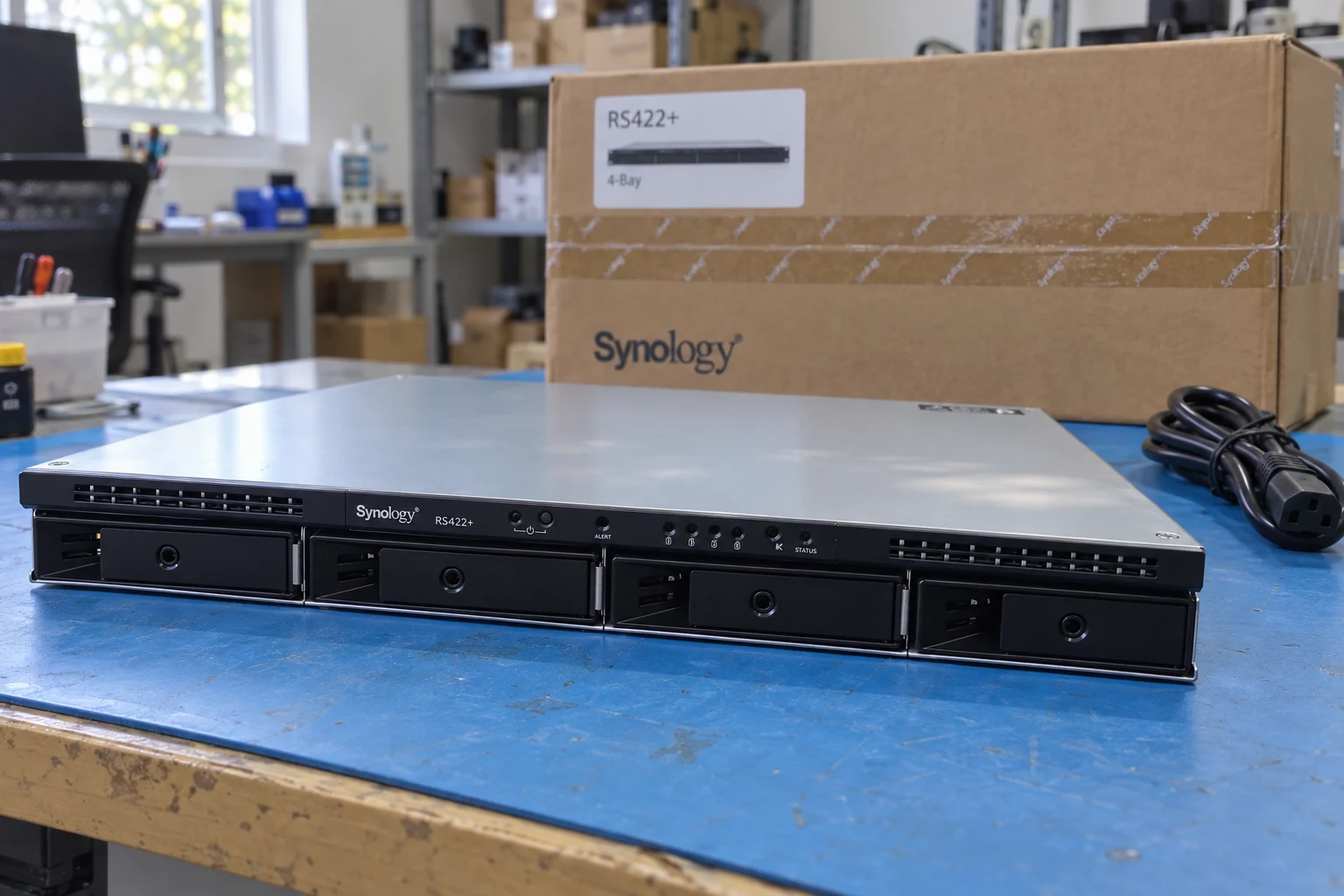

Synology RS422+ — product and packaging view 1 — Product and packaging illustration

Image 1 of 6

Synology / NAS / SAN Storage

Synology RS422+

Manufacturer P/N: RS422+

Synology RS422+ NAS / SAN Storage. cpu model: AMD Ryzen R1600; cpu quantity: 1; cpu cores: 2. Request pricing and a matched configuration from Star Networking.

Model / part number: RS422+
CPU Model: AMD Ryzen R1600
CPU Quantity: 1
CPU Cores: 2

$959.99 USD · Condition confirmed with quotation

Synology RS422+, diskless standard configuration. Data drives and optional upgrades are quoted separately.

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

Factory-configured storage

Drives, expansion shelves and licenses

Factory-supplied controllers

Controller processors and memory are supplied as part of the storage system and are not customer-selectable. Choose supported drives, expansion shelves and licenses for your model and software release.

Original HDDs & SSDs

Match the full manufacturer P/N, carrier, interface and supported firmware.

Browse original SSDs ↗

Browse original HDDs ↗

Expansion & connection

Review supported shelves, enclosure I/O modules, rails and cables.

Browse expansion hardware ↗

Software & licenses

Confirm installed entitlements, required features and support terms.

Browse licenses & support ↗

Send the array model, current drive P/N and software release for a matched list of original drives and licenses.

Request matched drives & licenses Browse storage arrays

CONNECTIONS & COMPATIBILITY

Storage connections and expansion options

The storage system uses its factory-supplied controllers. The ordered host interface determines whether the system connects through Ethernet, Fibre Channel or direct SAS.

CONNECTS TOServers or network clients

RS422+NAS / SAN Storage

USED FORVolumes, shares & protection

Connection and installation requirements

Exact host-interface variant and supported host OS
Qualified drives, expansion shelves and software entitlements

Storage connection examples ↗Storage networking ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

RS422+ specifications
Manufacturer	Synology
Model / part number	RS422+
CPU Model	AMD Ryzen R1600
CPU Quantity	1
CPU Cores	2
CPU Threads	4
CPU Architecture	64-bit
CPU Frequency	2.6 (base) / 3.1 (turbo) GHz
Hardware Encryption Engine	Supported
System Memory	2 GB DDR4 ECC
Drive Bays	4 × 3.5" SATA HDD or 2.5" SATA SSD
RJ-45 1GbE LAN Port	2
USB 3.2 Gen 1 Port	1
PCIe Expansion	1 × Gen3 x2 network upgrade slot
Form Factor (RU)	1U
Size (Height × Width × Depth)	44 mm × 478 mm × 327.5 mm
Weight	4.38 kg
System Fan	40 mm × 40 mm × 3 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Power Recovery	Supported
Scheduled Power On / Off	Supported
Wake on LAN / WAN	Supported
Power Supply Unit / Adapter	100 watts
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH

PRODUCT DETAILS

Features and applications

RS422+ configuration overview

Synology RS422+ NAS / SAN Storage. cpu model: AMD Ryzen R1600; cpu quantity: 1; cpu cores: 2. Request pricing and a matched configuration from Star Networking.

Order against the exact part number. A chassis, expansion enclosure and upgrade component are different products; installed drives and optional modules must be specified in the quotation.

Deployment planning

Confirm the workload, usable capacity, network connectivity and power requirements before selecting options. An expansion connector is not automatically compatible with every enclosure. Keep an independent backup appropriate to your recovery requirements.

Request a matched quotation

Send the model, quantity, required drives or upgrades, and destination. We will quote the configuration and confirm included items, condition and commercial terms.

Explore Synology storage and accessories · Request pricing

Prepare your enquiry

Ordering and delivery

Model and quantity

Include the full model, manufacturer P/N, revision and quantity.

Your existing equipment

Tell us the host model, generation, installed configuration and required supporting hardware.

Delivery requirements

Specify condition, testing requirements, destination and requested delivery date.
