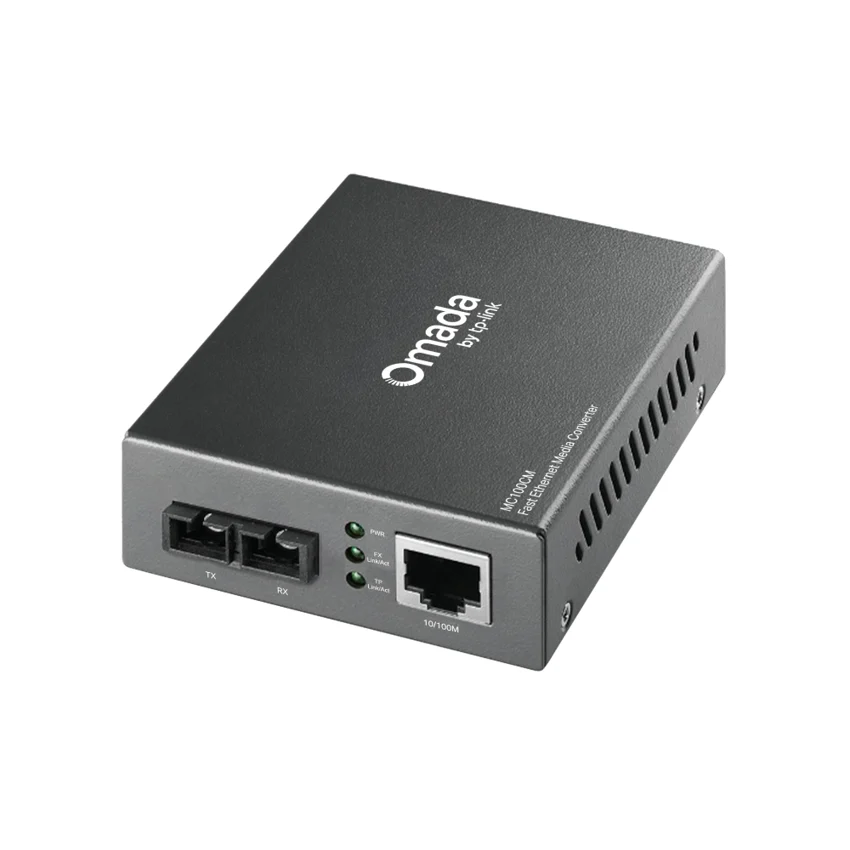

TP-Link MC100CM

Manufacturer P/N: MC100CM

TP-Link MC100CM network accessory. Interface: • 2× 100M SC/UPC ports• 1× 10/100M RJ45 port (Auto MDI/MDIX); Wave Length: 1310nm; Network Media 10BASE-T: 2-pair UTP/STP of Cat. 3 or above (≤100m). Compare configuration and request a hardware quote.

Documented hardware version: V6.30; match the hardware revision before ordering
Standards and Protocols: IEEE802.3i, IEEE802.3u
Interface: • 2× 100M SC/UPC ports• 1× 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length: 1310nm

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Installation and replacement requirements

Check the host model, available slots, power requirements and software support before ordering this assembly.

CONNECTS TOCompatible host equipment

MC100CMNetwork Accessory

USED FORInstalled option or replacement assembly

Connection and installation requirements

Exact host and assembly revision, included accessories
Slot, power, cooling, firmware and installation requirements

Enterprise servers ↗Server components ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

MC100CM specifications
Manufacturer	TP-Link
Manufacturer part number	MC100CM
Product family	Business network accessories
Documented hardware version	V6.30; match the hardware revision before ordering
Standards and Protocols	IEEE802.3i, IEEE802.3u
Interface	• 2× 100M SC/UPC ports• 1× 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length	1310nm
Network Media 10BASE-T	2-pair UTP/STP of Cat. 3 or above (≤100m)
Network Media 100BASE-T	2-pair UTP/STP of Cat. 5 or above (≤100m)
Power Supply	9V/0.6A
Max. Power Consumption	1.19W
LED	PWR, FX Link/Act, TP Link/Act
Safety & Emission	FCC, CE, RoHS
Basic Function	• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode• Full Duplex Flow Control (IEEE 802.3x)• Half Duplex Flow Control (Backpressure)• Extends fiber distance up to 2km
Environment	• Operating Temperature: 0℃~40℃ (32℉~104℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

PRODUCT DETAILS

Features and applications

MC100CM at a glance

TP-Link MC100CM is a network accessory in the Business network accessories range. Use the model code when matching your deployment or replacement requirement.

Interface: • 2× 100M SC/UPC ports• 1× 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length: 1310nm
Network Media 10BASE-T: 2-pair UTP/STP of Cat. 3 or above (≤100m)

Configuration and installation

Check installation dimensions, power requirements, interface compatibility and required accessories. Confirm whether the quoted item is a complete device or an individual component.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related Business network accessories models

Ordering questions

What should I include in an enquiry?

Send MC100CM with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
