Model and quantity
Include the full model, manufacturer P/N, revision and quantity.
TP-Link / Network Accessory

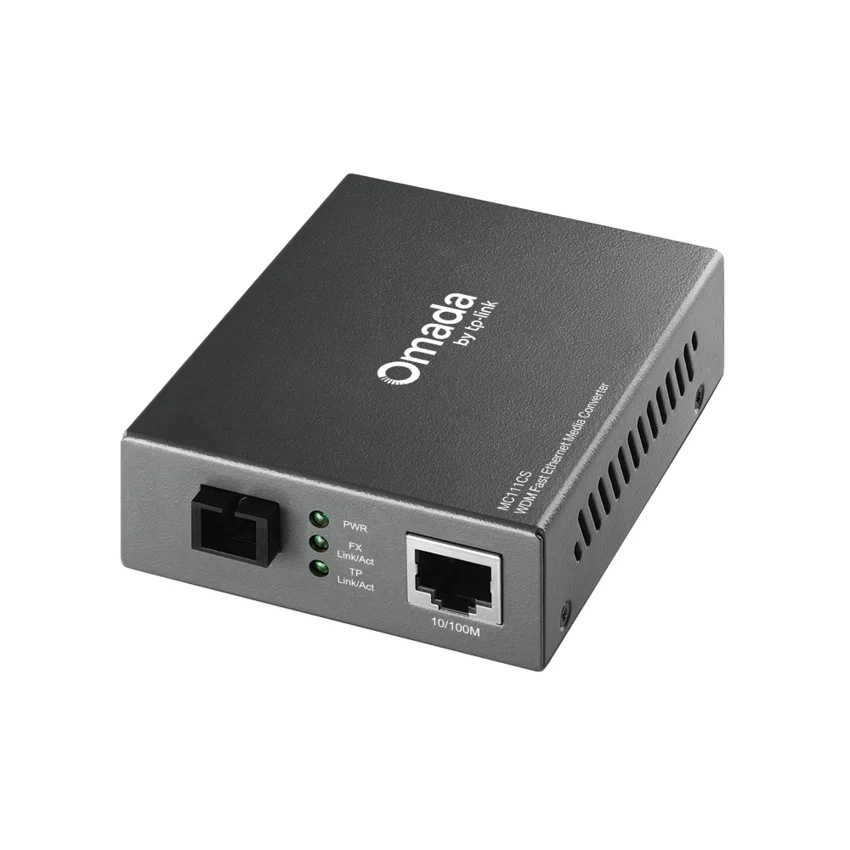

TP-Link MC111CS
Manufacturer P/N: MC111CS
TP-Link MC111CS network accessory. Basic Function: • Adopts WDM technology• Half/Full-Duplex transfer mode for FX port• Extends fiber distance up to 20km; Interface: • 1× 100M SC/UPC port• 1× 10/100M RJ45 port (Auto MDI/MDIX); Wave Length: 1550nm Tx/1310nm Rx. Compare configuration and request a hardware
- Documented hardware version
- V7.30; match the hardware revision before ordering
- Standards and Protocols
- IEEE 802.3i, IEEE 802.3u
- Basic Function
- • Adopts WDM technology• Half/Full-Duplex transfer mode for FX port• Extends fiber distance up to 20km
- Interface
- • 1× 100M SC/UPC port• 1× 10/100M RJ45 port (Auto MDI/MDIX)
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Installation and replacement requirements
Check the host model, available slots, power requirements and software support before ordering this assembly.
CONNECTS TOCompatible host equipment
MC111CSNetwork Accessory
USED FORInstalled option or replacement assembly
Connection and installation requirements
- Exact host and assembly revision, included accessories
- Slot, power, cooling, firmware and installation requirements
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | MC111CS |
| Product family | Business network accessories |
| Documented hardware version | V7.30; match the hardware revision before ordering |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u |
| Basic Function | • Adopts WDM technology• Half/Full-Duplex transfer mode for FX port• Extends fiber distance up to 20km |
| Interface | • 1× 100M SC/UPC port• 1× 10/100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1550nm Tx/1310nm Rx |
| WDM TX | 1550nm |
| WDM RX | 1310nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode Fiber |
| Power Supply | External Power Adapter |
| Max. Power Consumption | 1.23W |
| LED | PWR, Link/Act |
| Safety & Emission | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0℃~50℃ (32℉~122℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
PRODUCT DETAILS
Features and applications
MC111CS at a glance
TP-Link MC111CS is a network accessory in the Business network accessories range. Use the model code when matching your deployment or replacement requirement.
- Basic Function: • Adopts WDM technology• Half/Full-Duplex transfer mode for FX port• Extends fiber distance up to 20km
- Interface: • 1× 100M SC/UPC port• 1× 10/100M RJ45 port (Auto MDI/MDIX)
- Wave Length: 1550nm Tx/1310nm Rx
Configuration and installation
Check installation dimensions, power requirements, interface compatibility and required accessories. Confirm whether the quoted item is a complete device or an individual component.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
Related Business network accessories models
Ordering questions
What should I include in an enquiry?
Send MC111CS with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.
Are accessories and support included?
Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
Browse TP-Link equipment · Network equipment · Request a matched quotation
Prepare your enquiry
Ordering and delivery
Your existing equipment
Tell us the host model, generation, installed configuration and required supporting hardware.
Delivery requirements
Specify condition, testing requirements, destination and requested delivery date.
