Model and quantity
Include the full model, manufacturer P/N, revision and quantity.
TP-Link / Network Accessory

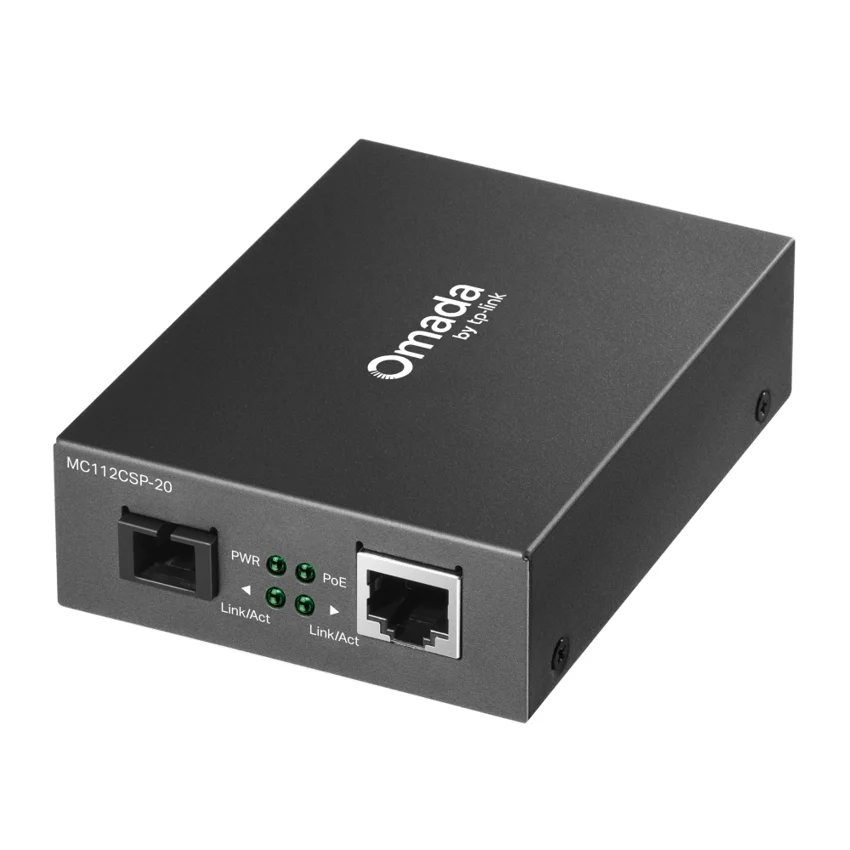

TP-Link MC112CSP-20
Manufacturer P/N: MC112CSP-20
TP-Link MC112CSP-20 network accessory. Interface: • 1×100 Mbps SC/UPC Fiber Port• 1× 10/100 Mbps PoE RJ45 Port (Auto MDI/MDIX); Network Media: • Single-mode Fiber• UTP category 5, 5e cable (maximum 100m); Power Supply: External Power Adapter: 48 V/0.375 A. Compare configuration and request a hardware quote.
- Documented hardware version
- V2.20; match the hardware revision before ordering
- Standards and Protocols
- IEEE 802.3, IEEE 802.3i, IEEE802.3u, IEEE802.3af
- Interface
- • 1×100 Mbps SC/UPC Fiber Port• 1× 10/100 Mbps PoE RJ45 Port (Auto MDI/MDIX)
- Network Media
- • Single-mode Fiber• UTP category 5, 5e cable (maximum 100m)
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Installation and replacement requirements
Check the host model, available slots, power requirements and software support before ordering this assembly.
CONNECTS TOCompatible host equipment
MC112CSP-20Network Accessory
USED FORInstalled option or replacement assembly
Connection and installation requirements
- Exact host and assembly revision, included accessories
- Slot, power, cooling, firmware and installation requirements
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | MC112CSP-20 |
| Product family | Business network accessories |
| Documented hardware version | V2.20; match the hardware revision before ordering |
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE802.3u, IEEE802.3af |
| Interface | • 1×100 Mbps SC/UPC Fiber Port• 1× 10/100 Mbps PoE RJ45 Port (Auto MDI/MDIX) |
| Network Media | • Single-mode Fiber• UTP category 5, 5e cable (maximum 100m) |
| Power Supply | External Power Adapter: 48 V/0.375 A |
| LED | PWR, Link/Act ,PoE |
| Wave Length | • 1310 nm TX• 1550 nm RX |
| Dimensions ( W x D x H ) | 3.7×2.9×1.1 in (94.5×73.0×27.0 mm) |
| Fiber Type | 9/125 μm single-mode fiber |
| Operating Temperature | -5˚C to 50˚C (23˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
PRODUCT DETAILS
Features and applications
MC112CSP-20 at a glance
TP-Link MC112CSP-20 is a network accessory in the Business network accessories range. Use the model code when matching your deployment or replacement requirement.
- Interface: • 1×100 Mbps SC/UPC Fiber Port• 1× 10/100 Mbps PoE RJ45 Port (Auto MDI/MDIX)
- Network Media: • Single-mode Fiber• UTP category 5, 5e cable (maximum 100m)
- Power Supply: External Power Adapter: 48 V/0.375 A
Configuration and installation
Check installation dimensions, power requirements, interface compatibility and required accessories. Confirm whether the quoted item is a complete device or an individual component.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
Related Business network accessories models
Ordering questions
What should I include in an enquiry?
Send MC112CSP-20 with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.
Are accessories and support included?
Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
