Model and quantity
Include the full model, manufacturer P/N, revision and quantity.
TP-Link / Network Accessory

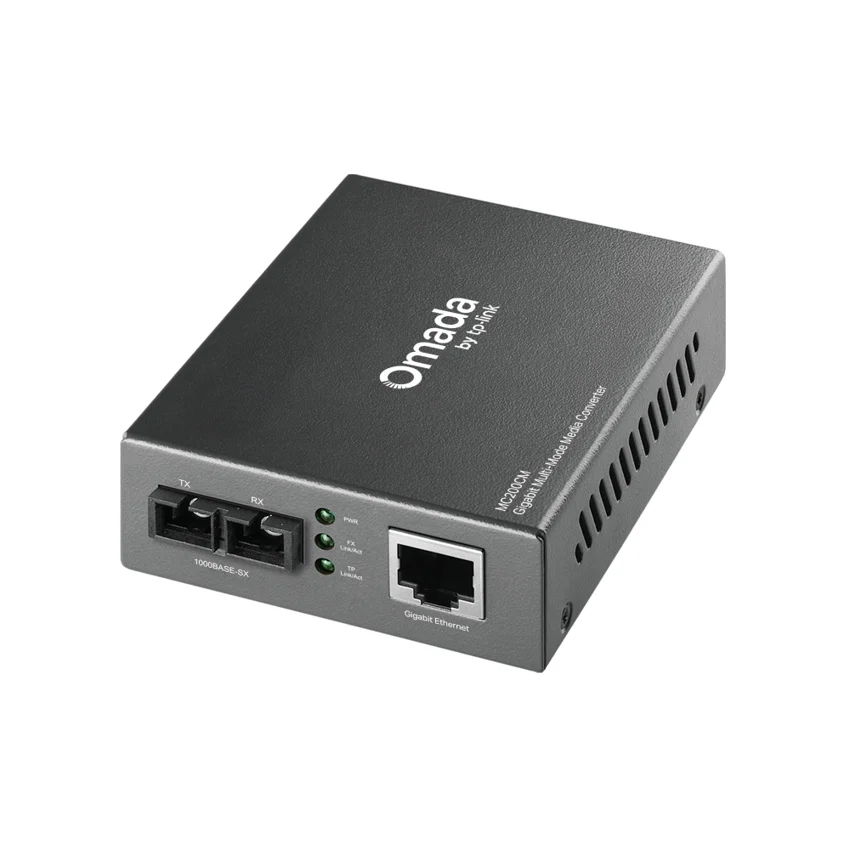

TP-Link MC200CM
Manufacturer P/N: MC200CM
TP-Link MC200CM network accessory. Interface: • 2× 1000M SC/UPC ports • 1× 10/100/1000M RJ45 port (Auto MDI/MDIX); Wave Length: 850nm; Network Media 1000BASE-SX: Multi-mode Fiber. Compare configuration and request a hardware quote.
- Documented hardware version
- V5.20; match the hardware revision before ordering
- Standards and Protocols
- •IEEE 802.3i 10BASE-T•IEEE 802.3u 100BASE-T•IEEE 802.3ab 1000BASE-T•IEEE 802.3z 1000BASE-SX•IEEE 802.3x Flow Control
- Interface
- • 2× 1000M SC/UPC ports • 1× 10/100/1000M RJ45 port (Auto MDI/MDIX)
- Wave Length
- 850nm
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Installation and replacement requirements
Check the host model, available slots, power requirements and software support before ordering this assembly.
CONNECTS TOCompatible host equipment
MC200CMNetwork Accessory
USED FORInstalled option or replacement assembly
Connection and installation requirements
- Exact host and assembly revision, included accessories
- Slot, power, cooling, firmware and installation requirements
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | MC200CM |
| Product family | Business network accessories |
| Documented hardware version | V5.20; match the hardware revision before ordering |
| Standards and Protocols | •IEEE 802.3i 10BASE-T•IEEE 802.3u 100BASE-T•IEEE 802.3ab 1000BASE-T•IEEE 802.3z 1000BASE-SX•IEEE 802.3x Flow Control |
| Interface | • 2× 1000M SC/UPC ports • 1× 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 850nm |
| Network Media 1000BASE-SX | Multi-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Power Supply | External Power Adapter |
| Max. Power Consumption | 1.66W |
| LED | PWR, Link/Act |
| Safety & Emission | FCC, CE, RoHS |
| Basic Function | • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode• Extends fiber distance up to 0.55km using 50/125um fiber• Extends fiber distance up to 0.22km using 62.5/125um fiber |
| Environment | • Operating Temperature: 0℃~50℃ (32℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
PRODUCT DETAILS
Features and applications
MC200CM at a glance
TP-Link MC200CM is a network accessory in the Business network accessories range. Use the model code when matching your deployment or replacement requirement.
- Interface: • 2× 1000M SC/UPC ports • 1× 10/100/1000M RJ45 port (Auto MDI/MDIX)
- Wave Length: 850nm
- Network Media 1000BASE-SX: Multi-mode Fiber
Configuration and installation
Check installation dimensions, power requirements, interface compatibility and required accessories. Confirm whether the quoted item is a complete device or an individual component.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
Related Business network accessories models
Ordering questions
What should I include in an enquiry?
Send MC200CM with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.
Are accessories and support included?
Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
