TP-Link / Network Accessory

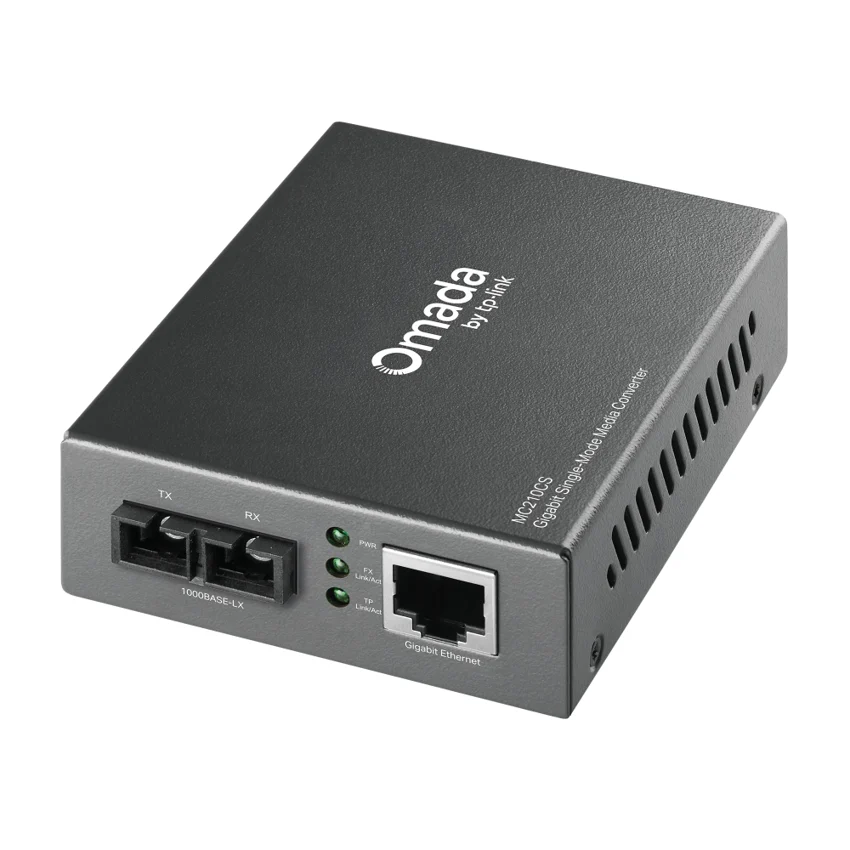

TP-Link MC210CS
Manufacturer P/N: MC210CS
TP-Link MC210CS network accessory. Basic Function: Auto-negotiation of Half-Duplex / Full-Duplex transfer modeExtends fiber distance up to 20km; Interface: • 2× 1000M SC/UPC ports• 1× 10/100/1000M RJ45 port (Auto MDI/MDIX); Wave Length: 1310nm. Compare configuration and request a hardware quote.
- Documented hardware version
- V7.20; match the hardware revision before ordering
- Standards and Protocols
- • IEEE 802.3i 10BASE-T • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z 1000BASE-LX • IEEE 802.3x Flow Control
- Basic Function
- Auto-negotiation of Half-Duplex / Full-Duplex transfer modeExtends fiber distance up to 20km
- Interface
- • 2× 1000M SC/UPC ports• 1× 10/100/1000M RJ45 port (Auto MDI/MDIX)
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Installation and replacement requirements
Check the host model, available slots, power requirements and software support before ordering this assembly.
CONNECTS TOCompatible host equipment
MC210CSNetwork Accessory
USED FORInstalled option or replacement assembly
Connection and installation requirements
- Exact host and assembly revision, included accessories
- Slot, power, cooling, firmware and installation requirements
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | MC210CS |
| Product family | Business network accessories |
| Documented hardware version | V7.20; match the hardware revision before ordering |
| Standards and Protocols | • IEEE 802.3i 10BASE-T • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z 1000BASE-LX • IEEE 802.3x Flow Control |
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer modeExtends fiber distance up to 20km |
| Interface | • 2× 1000M SC/UPC ports• 1× 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 1000BASE-LX | Single-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Power Supply | External Power Adapter |
| Max. Power Consumption | 1.8W |
| LED | PWR, Link/Act |
| Safety & Emission | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0℃~50℃ (32℉~122℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
PRODUCT DETAILS
Features and applications
MC210CS at a glance
TP-Link MC210CS is a network accessory in the Business network accessories range. Use the model code when matching your deployment or replacement requirement.
- Basic Function: Auto-negotiation of Half-Duplex / Full-Duplex transfer modeExtends fiber distance up to 20km
- Interface: • 2× 1000M SC/UPC ports• 1× 10/100/1000M RJ45 port (Auto MDI/MDIX)
- Wave Length: 1310nm
Configuration and installation
Check installation dimensions, power requirements, interface compatibility and required accessories. Confirm whether the quoted item is a complete device or an individual component.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
