TP-Link / Network Accessory

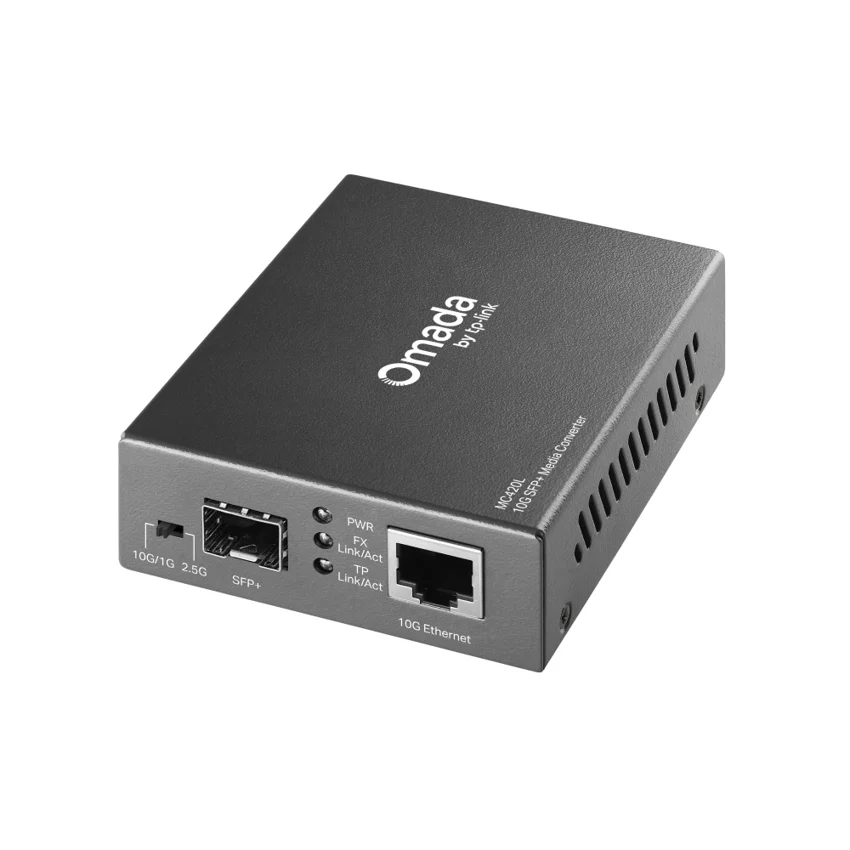

TP-Link MC420L
Manufacturer P/N: MC420L
TP-Link MC420L network accessory. Basic Function: • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode• Maximum transmission distance depends on the inserting SFP module; Interface: • 1× SFP+ port• 1× 1G/2.5G/5G/10Gbps RJ45 port; Wave Length: Depends on the used SFP/SFP+ module. Compare
- Documented hardware version
- V2; match the hardware revision before ordering
- Standards and Protocols
- IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE802.3z, IEEE802.3ae, IEEE802.3x, IEEE 802.3aq ，IEEE 802.3cb
- Basic Function
- • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode• Maximum transmission distance depends on the inserting SFP module
- Interface
- • 1× SFP+ port• 1× 1G/2.5G/5G/10Gbps RJ45 port
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Installation and replacement requirements
Check the host model, available slots, power requirements and software support before ordering this assembly.
CONNECTS TOCompatible host equipment
MC420LNetwork Accessory
USED FORInstalled option or replacement assembly
Connection and installation requirements
- Exact host and assembly revision, included accessories
- Slot, power, cooling, firmware and installation requirements
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | MC420L |
| Product family | Business network accessories |
| Documented hardware version | V2; match the hardware revision before ordering |
| Standards and Protocols | IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE802.3z, IEEE802.3ae, IEEE802.3x, IEEE 802.3aq ，IEEE 802.3cb |
| Basic Function | • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode• Maximum transmission distance depends on the inserting SFP module |
| Interface | • 1× SFP+ port• 1× 1G/2.5G/5G/10Gbps RJ45 port |
| Wave Length | Depends on the used SFP/SFP+ module |
| Network Media 10GBASE-R | Multi-mode/Single-mode SFP+ module |
| Power Supply | External Power Adapter: 9V/0.6A |
| Max. Power Consumption | 5.26 W |
| LED | PWR, FX Link/Act, TP Link/Act |
| Safety & Emission | CE, FCC |
| Network Media 10GBASE-T | •1000BASE-T/2.5GBASE-T/5GBASE-T:4-pair UTP/STP of Cat. 5e or above (max. 100 m)•10GBase-T:4-pair UTP of Cat. 6 (max. 55m), 4-pair UTP of Cat. 6a (max. 100m), or 4-pair STP of Cat. 6 or above (max. 100m) |
| Environment | • Operating Temperature: 0℃~50℃ (32℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%RH~90%RH Non-condensing • Storage Humidity: 5%RH~90%RH Non-condensing |
PRODUCT DETAILS
Features and applications
MC420L at a glance
TP-Link MC420L is a network accessory in the Business network accessories range. Use the model code when matching your deployment or replacement requirement.
- Basic Function: • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode• Maximum transmission distance depends on the inserting SFP module
- Interface: • 1× SFP+ port• 1× 1G/2.5G/5G/10Gbps RJ45 port
- Wave Length: Depends on the used SFP/SFP+ module
Configuration and installation
Check installation dimensions, power requirements, interface compatibility and required accessories. Confirm whether the quoted item is a complete device or an individual component.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
