Model and quantity
Include the full model, manufacturer P/N, revision and quantity.

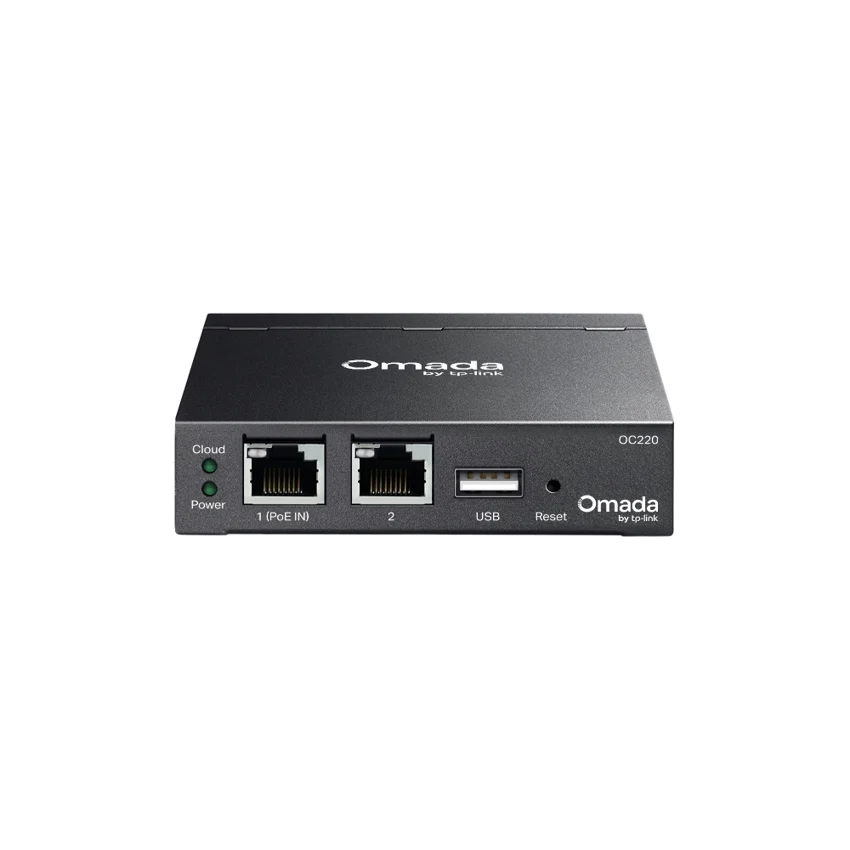

TP-Link / Network Controller
TP-Link OC220
Manufacturer P/N: OC220
TP-Link OC220 network controller. Processor: Quad-Core A53 @ 2.0 GHz/Core; Interface: • 2× Gigabit Ethernet Ports• 1× USB 2.0 Port• 1× Micro-USB Port (only for power supply); Physical Security Lock: Kensington Lock. Compare configuration and request a hardware quote.
- Documented hardware version
- V2; match the hardware revision before ordering
- Processor
- Quad-Core A53 @ 2.0 GHz/Core
- Interface
- • 2× Gigabit Ethernet Ports• 1× USB 2.0 Port• 1× Micro-USB Port (only for power supply)
- Physical Security Lock
- Kensington Lock
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Network connections and supported equipment
Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.
CONNECTS TOClients, servers or access links
OC220Network Controller
USED FORConnected network equipment
Connection and installation requirements
- Port type, line rate, optics, reach and software license
- Peer platform support, resiliency and management design
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | OC220 |
| Product family | Business network controllers |
| Documented hardware version | V2; match the hardware revision before ordering |
| Processor | Quad-Core A53 @ 2.0 GHz/Core |
| Interface | • 2× Gigabit Ethernet Ports• 1× USB 2.0 Port• 1× Micro-USB Port (only for power supply) |
| Physical Security Lock | Kensington Lock |
| Button | Reset Button |
| Power Supply | • 802.3af/at PoE• Micro-USB (DC 5 V / Minimum 1 A) |
| Max. Power Consumption | 11.2 W (powered by a PoE device, with USB 2.0 connected)3.5 W (powered via Micro-USB port, no USB 2.0 connected) |
| DRAM | 2 GB DDR4 |
| Storage | • 4MB Nor Flash• 8 GB eMMC |
| Weight | 0.305 kg |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
| Omada App | √ |
| Restore & Backup | √ |
| Cloud Access | √ |
| L3 Management | √ |
| Multi-site Management | √ |
| System Requirements | Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Management Features | • Wired Network • Wireless Network • WLAN Optimization • Network Security (ACL/URL Fitering/Attack Defense) • Transmission (Routing/NAT/Session Limit/Bandwidth Control) • VPN (IPSec/L2TP/PPTP/OpenVPN/WireGuard VPN) • Portal (Voucher/Local User/SMS/RADIUS/External Portal Server) • 802.1x • RADIUS (Authentication/MAC Auth/Accounting) |
| Monitoring | • DPI • IPS/IDS • Dashboard (Custom Dashboard) • Statistics (Performance/Switch Statistics) • Network topology • Network Map • Devices List (Custom Table) • Clients List (Custom Table) • Insights (Known Clients/Past Connections/Past Portal Authorizations/Rogue APs) • Logs (Alerts/Events/Custom Notifications) |
| Environment | • Operating Temperature: -5–50 ℃ (23–122 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
PRODUCT DETAILS
Features and applications
OC220 at a glance
TP-Link OC220 is a network controller in the Business network controllers range. Use the model code when matching your deployment or replacement requirement.
- Processor: Quad-Core A53 @ 2.0 GHz/Core
- Interface: • 2× Gigabit Ethernet Ports• 1× USB 2.0 Port• 1× Micro-USB Port (only for power supply)
- Physical Security Lock: Kensington Lock
Configuration and installation
Check installation dimensions, power requirements, interface compatibility and required accessories. Confirm whether the quoted item is a complete device or an individual component.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
Related Business network controllers models
Ordering questions
What should I include in an enquiry?
Send OC220 with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.
Are accessories and support included?
Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
Browse TP-Link equipment · Network equipment · Request a matched quotation
Prepare your enquiry
Ordering and delivery
Your existing equipment
Tell us the host model, generation, installed configuration and required supporting hardware.
Delivery requirements
Specify condition, testing requirements, destination and requested delivery date.
