Model and quantity
Include the full model, manufacturer P/N, revision and quantity.
TP-Link / Network Accessory

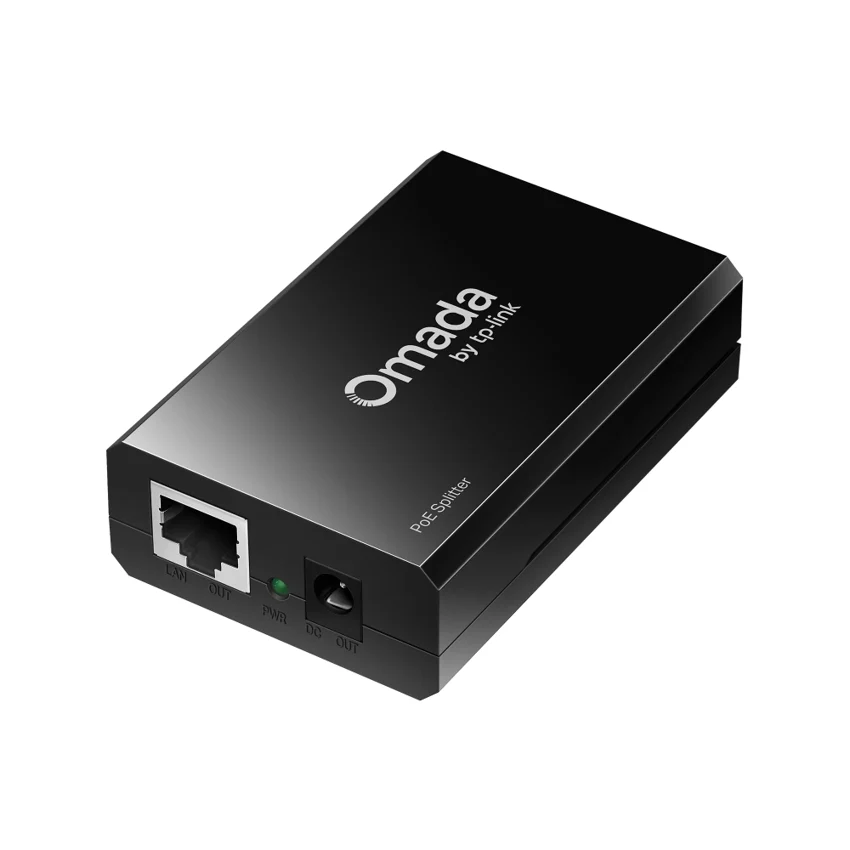

TP-Link POE10R
Manufacturer P/N: POE10R
TP-Link POE10R network accessory. Interface: • 2× 10/100/1000Mbps RJ45 Port• Auto Negotiation/Auto MDI/MDIX• 1× Power Output Port; Power Supply: 12VDC 1A, 9VDC 1A, 5VDC 2A; Basic Function: • Compatible With IEEE 802.3af Compliant PSEs• Delivers Power Up To 100 Meters • Optional 12VDC, 9VDC or 5VDC Power
- Documented hardware version
- V6; match the hardware revision before ordering
- Interface
- • 2× 10/100/1000Mbps RJ45 Port• Auto Negotiation/Auto MDI/MDIX• 1× Power Output Port
- Power Supply
- 12VDC 1A, 9VDC 1A, 5VDC 2A
- Basic Function
- • Compatible With IEEE 802.3af Compliant PSEs• Delivers Power Up To 100 Meters • Optional 12VDC, 9VDC or 5VDC Power Output
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Installation and replacement requirements
Check the host model, available slots, power requirements and software support before ordering this assembly.
CONNECTS TOCompatible host equipment
POE10RNetwork Accessory
USED FORInstalled option or replacement assembly
Connection and installation requirements
- Exact host and assembly revision, included accessories
- Slot, power, cooling, firmware and installation requirements
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | POE10R |
| Product family | Business network accessories |
| Documented hardware version | V6; match the hardware revision before ordering |
| Interface | • 2× 10/100/1000Mbps RJ45 Port• Auto Negotiation/Auto MDI/MDIX• 1× Power Output Port |
| Power Supply | 12VDC 1A, 9VDC 1A, 5VDC 2A |
| Basic Function | • Compatible With IEEE 802.3af Compliant PSEs• Delivers Power Up To 100 Meters • Optional 12VDC, 9VDC or 5VDC Power Output |
| LED | PWR |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)• 100BASE-TX: UTP category 5, 5e cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
PRODUCT DETAILS
Features and applications
POE10R at a glance
TP-Link POE10R is a network accessory in the Business network accessories range. Use the model code when matching your deployment or replacement requirement.
- Interface: • 2× 10/100/1000Mbps RJ45 Port• Auto Negotiation/Auto MDI/MDIX• 1× Power Output Port
- Power Supply: 12VDC 1A, 9VDC 1A, 5VDC 2A
- Basic Function: • Compatible With IEEE 802.3af Compliant PSEs• Delivers Power Up To 100 Meters • Optional 12VDC, 9VDC or 5VDC Power Output
Configuration and installation
Check installation dimensions, power requirements, interface compatibility and required accessories. Confirm whether the quoted item is a complete device or an individual component.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
