TP-Link / Network Accessory

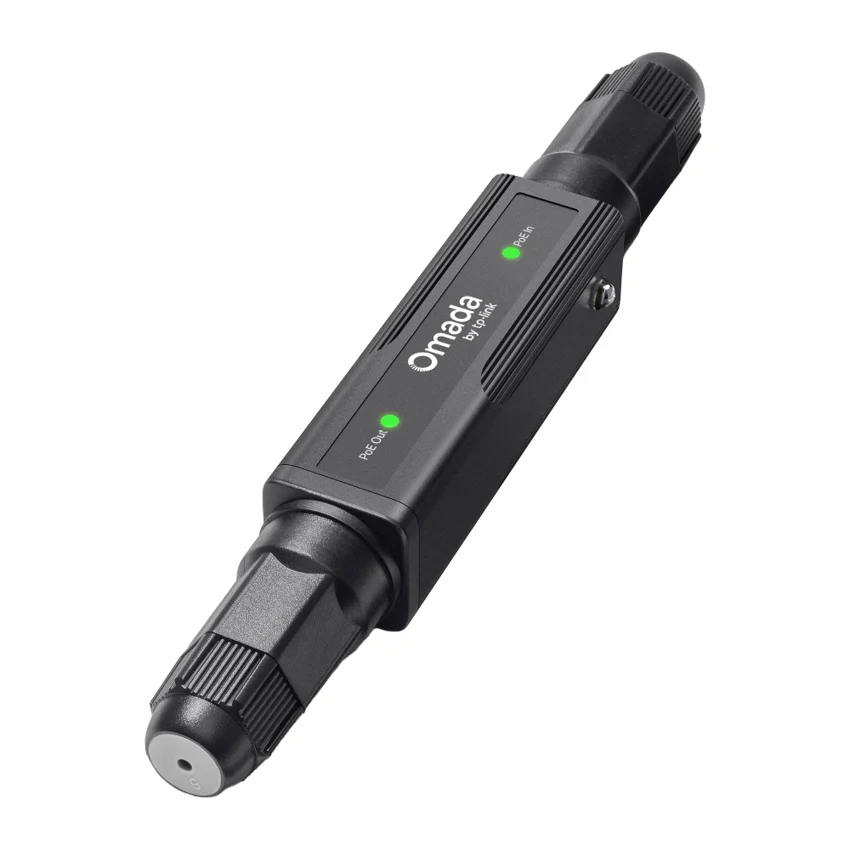

TP-Link POE20E-Outdoor
Manufacturer P/N: POE20E-Outdoor
TP-Link POE20E-Outdoor network accessory. Interface: • 1× 10/100/1000 Mbps Auto-Negotiation RJ45• 1× 10/100/1000 Mbps Auto-Negotiation RJ45; Max. Power Consumption: Output: 30W; LED: 2× Link/Act. Compare configuration and request a hardware quote.
- Documented hardware version
- V1; match the hardware revision before ordering
- Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
- Interface
- • 1× 10/100/1000 Mbps Auto-Negotiation RJ45• 1× 10/100/1000 Mbps Auto-Negotiation RJ45
- Max. Power Consumption
- Output: 30W
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Installation and replacement requirements
Check the host model, available slots, power requirements and software support before ordering this assembly.
CONNECTS TOCompatible host equipment
POE20E-OutdoorNetwork Accessory
USED FORInstalled option or replacement assembly
Connection and installation requirements
- Exact host and assembly revision, included accessories
- Slot, power, cooling, firmware and installation requirements
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | POE20E-Outdoor |
| Product family | Business network accessories |
| Documented hardware version | V1; match the hardware revision before ordering |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Interface | • 1× 10/100/1000 Mbps Auto-Negotiation RJ45• 1× 10/100/1000 Mbps Auto-Negotiation RJ45 |
| Max. Power Consumption | Output: 30W |
| LED | 2× Link/Act |
| Dimensions ( W x D x H ) | 221.7 × 31 × 31.5mm (8.73 × 1.22 × 1.24 in) |
| Weatherproof Enclosure | IP68 |
| Lightning Protection | 6kV |
| Network Media | •10BASE-T: 2-pair UTP/STP (≤250m) of Cat. 3 or above•100BASE-TX: 2-pair UTP/STP (≤100m) of Cat. 5 or above•1000BASE-T: 4-pair UTP/STP (≤100m) of Cat. 5e or above |
| Environment | • Operating Temperature: -40°C to 65°C (-40°F to 149°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 15% to 90% RH non-condensing • Storage Humidity: 15% to 90% RH non-condensing |
PRODUCT DETAILS
Features and applications
POE20E-Outdoor at a glance
TP-Link POE20E-Outdoor is a network accessory in the Business network accessories range. Use the model code when matching your deployment or replacement requirement.
- Interface: • 1× 10/100/1000 Mbps Auto-Negotiation RJ45• 1× 10/100/1000 Mbps Auto-Negotiation RJ45
- Max. Power Consumption: Output: 30W
- LED: 2× Link/Act
Configuration and installation
Check installation dimensions, power requirements, interface compatibility and required accessories. Confirm whether the quoted item is a complete device or an individual component.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
