Model and quantity
Include the full model, manufacturer P/N, revision and quantity.

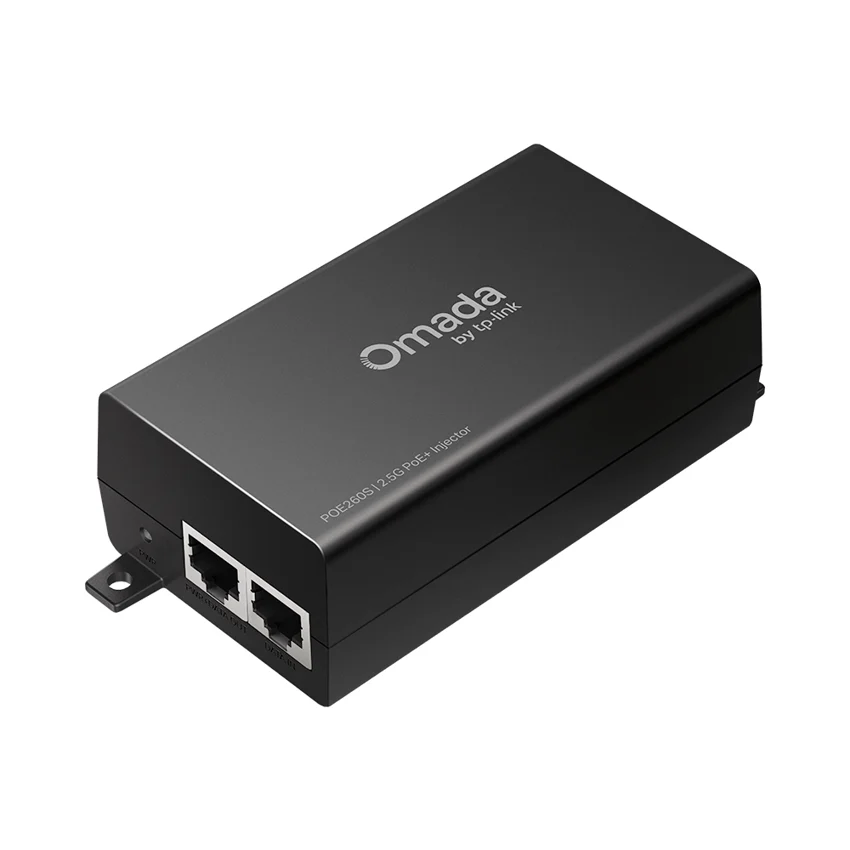

TP-Link / Network Accessory
TP-Link POE260S
Manufacturer P/N: POE260S
TP-Link POE260S network accessory. Max. Power Consumption: • Input: 100-240 V, 50/60 Hz • Output: Auto-determine the necessary power requirements (max. 30 W); LED: Power; Dimensions ( W x D x H ): 4.9×2.3×1.4 in (125×59.4×36.8 mm). Compare configuration and request a hardware quote.
- Documented hardware version
- V3; match the hardware revision before ordering
- Standards and Protocols
- IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at
- Interface
- • 1× 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port• 1× 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port• 1 AC socket
- Max. Power Consumption
- • Input: 100-240 V, 50/60 Hz • Output: Auto-determine the necessary power requirements (max. 30 W)
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Installation and replacement requirements
Check the host model, available slots, power requirements and software support before ordering this assembly.
CONNECTS TOCompatible host equipment
POE260SNetwork Accessory
USED FORInstalled option or replacement assembly
Connection and installation requirements
- Exact host and assembly revision, included accessories
- Slot, power, cooling, firmware and installation requirements
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | POE260S |
| Product family | Business network accessories |
| Documented hardware version | V3; match the hardware revision before ordering |
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at |
| Interface | • 1× 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port• 1× 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port• 1 AC socket |
| Max. Power Consumption | • Input: 100-240 V, 50/60 Hz • Output: Auto-determine the necessary power requirements (max. 30 W) |
| LED | Power |
| Dimensions ( W x D x H ) | 4.9×2.3×1.4 in (125×59.4×36.8 mm) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)EIA/TIA-568 100Ω STP (maximum 100 m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)EIA/TIA-568 100Ω STP (maximum 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)• 2.5GBASE-T: UTP category 5e or above cable(maximum 100 m) |
| Basic Function | • Auto-Sensing Algorithm enables providing power with 802.3af/at PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play |
| Environment | • Operating Temperature: 0°C to 40°C (32°F to 104°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing |
PRODUCT DETAILS
Features and applications
POE260S at a glance
TP-Link POE260S is a network accessory in the Business network accessories range. Use the model code when matching your deployment or replacement requirement.
- Max. Power Consumption: • Input: 100-240 V, 50/60 Hz • Output: Auto-determine the necessary power requirements (max. 30 W)
- LED: Power
- Dimensions ( W x D x H ): 4.9×2.3×1.4 in (125×59.4×36.8 mm)
Configuration and installation
Check installation dimensions, power requirements, interface compatibility and required accessories. Confirm whether the quoted item is a complete device or an individual component.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
